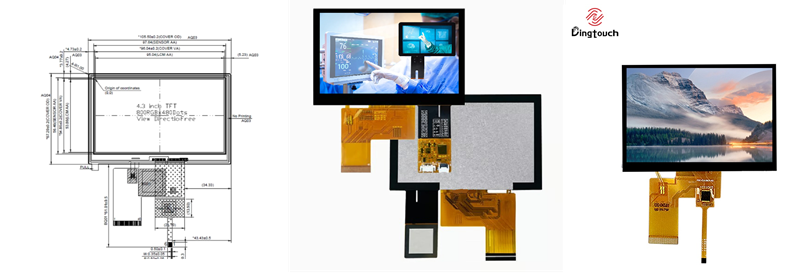

4.3 Inch IPS Touch Display – 480×272, 800 nits, RGB & I2C

DINGTouch offers a compact 4.3-inch IPS touch display designed for industrial equipment, embedded systems, control panels, instrumentation, and other space-constrained applications.

With a 480×272 resolution, 800 cd/m² high brightness, 3.3V RGB interface, and I2C capacitive touch, this display provides a practical balance between readability, integration flexibility, and long-term supply stability.

For different product structures and cost targets, customers can choose between frame bonding and full lamination.

Key Features of the 4.3 Inch IPS Touch Display

Display Size: 4.3 inch
Panel Type: IPS TFT LCD
Resolution: 480×272 pixels
Brightness: 800 cd/m²
Display Interface: RGB
Logic Voltage: 3.3V
Touch Interface: I2C
Touch Technology: Projected Capacitive Touch (PCAP)
Bonding Options: Frame bonding or full lamination
Touch Controller: Long-term supply chip solution available
Application: Industrial and embedded equipment

The compact size makes this 4.3-inch display suitable for equipment where installation space is limited but a clear graphical user interface is still required.

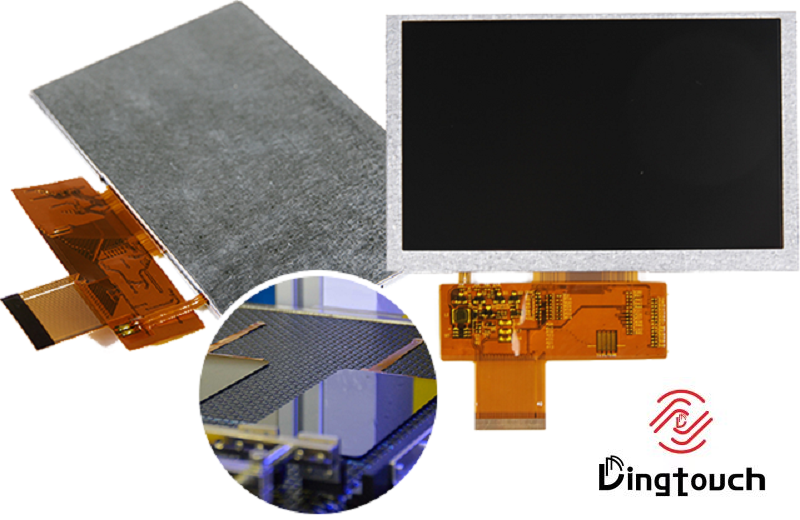

1. 4.3 Inch IPS Display with 480×272 Resolution

The 480×272 resolution is suitable for many compact industrial and embedded applications.

The IPS panel provides consistent image quality and wide viewing performance, making it suitable for control interfaces that need to remain readable from different viewing angles.

Typical applications include:

Industrial control panels
Embedded HMI systems
Measurement instruments
Test and inspection equipment
Automation controllers
Portable industrial devices
Smart control terminals
Small medical and laboratory instruments

For projects using custom graphical interfaces, DINGTouch can also evaluate the display structure and interface requirements according to the customer's mainboard and system architecture.

2. 800 nits High Brightness for Better Readability

With a brightness of 800 cd/m², this 4.3-inch IPS display provides significantly higher brightness than many standard indoor LCD modules.

The higher brightness can improve screen readability in environments with strong ambient lighting, making it suitable for industrial equipment installed near windows, production lines, workshops, vehicles, and semi-outdoor environments.

For applications requiring stronger sunlight readability, DINGTouch can further evaluate:

Higher-brightness LCD solutions
Optical bonding
Anti-glare surface treatment
Anti-reflection treatment
Cover glass selection
Backlight optimization

The final display configuration can be selected according to the actual installation environment.

3. 3.3V RGB Interface for Embedded System Integration

This display uses an RGB interface with 3.3V logic voltage, making it suitable for embedded systems and controller boards designed around 3.3V signal levels.

Before selecting an RGB display, engineers should confirm the mainboard's:

RGB signal configuration
Pixel clock
Horizontal and vertical timing
Logic voltage
Connector definition
FPC structure
Power supply requirements

DINGTouch can review the interface requirements together with the customer's hardware team to help reduce integration risks during development.

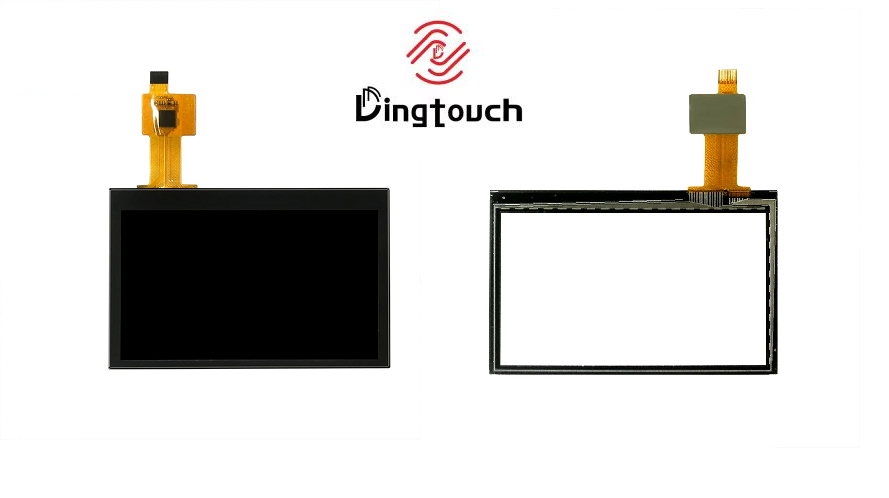

4. I2C Capacitive Touch Interface

The touch panel uses an I2C interface, providing a common communication method for embedded touch applications.

The PCAP touch solution can be integrated with various embedded platforms depending on the customer's hardware and software environment.

During project development, important factors include:

Touch controller selection
I2C communication
Touch coordinates
Firmware configuration
Interrupt signal
FPC pin definition
Host processor compatibility

DINGTouch can evaluate the touch solution based on the customer's main control board and operating environment.

5. Long-Term Supply Chip Solution for Stable Production

For industrial equipment, selecting a display is not only about the initial sample.

Long-term component availability is also important.

A display solution that works during prototype development may become difficult to maintain if the key LCD or touch controller components have short supply cycles or frequent substitutions.

DINGTouch can work with customers to establish a long-term supply chip solution for the touch panel, helping support ongoing production and product lifecycle requirements.

For projects requiring long-term supply, DINGTouch can evaluate:

Touch IC availability
Alternative component options
Firmware compatibility
Production continuity
Component lifecycle
Customized touch solutions

This is particularly important for industrial equipment that may remain in production for several years.

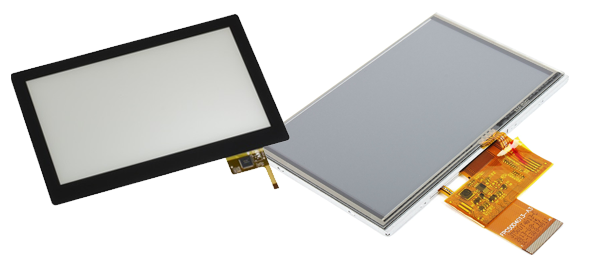

6. Frame Bonding or Full Lamination – Choose According to Your Application

Different applications have different requirements for display performance, structure, and cost.

Therefore, this 4.3-inch touch display can be configured with frame bonding or full lamination.

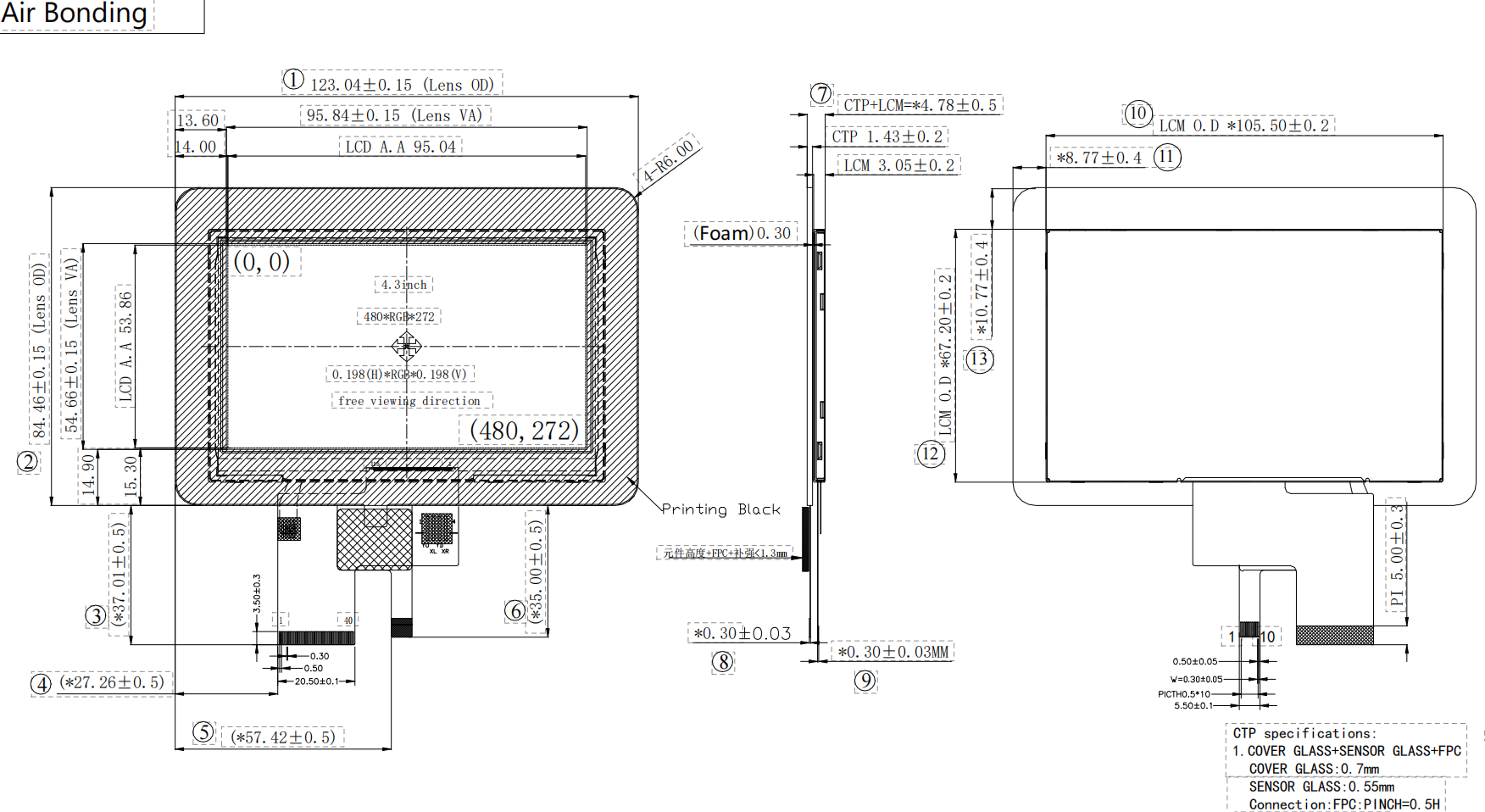

Frame Bonding

Frame bonding is a practical solution when the project focuses on:

Cost control
Standard product structure
Easy assembly
Indoor applications
Faster product integration

The LCD and touch panel are assembled through the surrounding frame area.

Full Lamination

For applications requiring improved optical performance and a more integrated appearance, full lamination can be considered.

Full lamination can help reduce the air gap between the display and touch panel, improving:

Display contrast perception
touchscreen appearance
Outdoor readability
Optical clarity
Dust resistance within the bonded structure

For high-brightness industrial applications, full lamination can be evaluated together with cover glass and surface treatment.

7. Flexible Configuration for Industrial OEM Projects

The standard 4.3-inch configuration can be used as a starting point for development, while DINGTouch can also evaluate customized requirements.

Possible customization options include:

Touch panel dimensions
Cover glass
FPC
Connector position
FPC length
Touch IC
Touch firmware
Surface treatment
Logo or silk printing
Mounting structure
Bonding method
LCD interface
Brightness
Backlight configuration

The actual customization scope depends on the project quantity, mechanical structure, and technical requirements.

8. Designed for Industrial and Embedded Applications

The compact 4.3-inch IPS touch display can be integrated into a wide range of equipment.

Typical applications include:

Industrial HMI

Compact control panels can use the 4.3-inch display to provide graphical menus, parameter settings, equipment status, and operating controls.

Instrumentation

The high-brightness IPS display can be used for measurement instruments, test equipment, monitoring devices, and portable instruments.

Automation Equipment

For industrial automation systems, the display can provide a compact operator interface while communicating with the host controller through the I2C touch interface.

Embedded Devices

The RGB display and I2C touch interface are suitable for embedded hardware platforms where engineers need a compact display module with a touch interface.

9. Why Consider DINGTouch for a Custom 4.3 Inch Touch Display?

DINGTouch provides integrated LCD, PCAP touch, cover glass, and lamination solutions for industrial and embedded display projects.

Instead of simply supplying a standard LCD panel, DINGTouch can evaluate the complete display structure based on the customer's application requirements.

The project evaluation can include:

LCD → Touch Panel → Touch IC → FPC → Interface → Bonding → Mechanical Structure

This approach helps engineers confirm compatibility before moving into mass production.

For projects requiring a 4.3-inch IPS touch display with 480×272 resolution, 800 nits brightness, RGB 3.3V interface, and I2C touch, customers can start with the standard configuration and then discuss customization requirements with the DINGTouch engineering team.

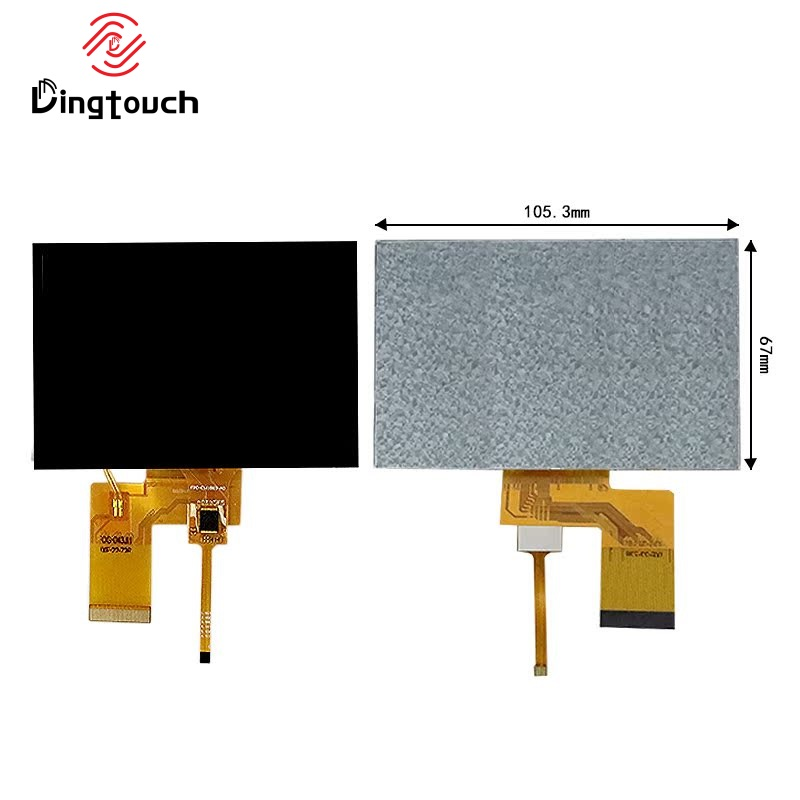

10. 4.3 Inch IPS Touch Display Specification

Parameter	Specification
Display Size	4.3 Inch
Display Type	IPS TFT LCD
Resolution	480×272
Brightness	800 cd/m²
LCD Interface	RGB
Logic Voltage	3.3V
Touch Technology	PCAP
Touch Interface	I2C
Bonding	Frame Bonding / Full Lamination
Supply Strategy	Long-term chip solution
Application	Industrial / Embedded Equipment

Specifications may be customized according to project requirements. Please contact DINGTouch for the latest detailed datasheet and interface definition.

FAQ

Is the 4.3-inch display suitable for industrial equipment?

Yes. The compact size, IPS panel, 800 cd/m² brightness, RGB interface, and I2C capacitive touch make it suitable for many industrial and embedded applications.

Does the display support a 3.3V RGB interface?

Yes. This configuration uses an RGB display interface with a 3.3V logic voltage.

Can I choose between frame bonding and full lamination?

Yes. Both bonding structures can be evaluated according to the application's optical, mechanical, and cost requirements.

Can DINGTouch provide a long-term touch IC solution?

Yes. For projects requiring stable long-term production, DINGTouch can evaluate touch controller availability and establish a suitable long-term supply solution.

Can the 4.3-inch touch display be customized?

Yes. Depending on project requirements and volume, DINGTouch can evaluate customization of the touch panel, FPC, cover glass, touch IC, connector, bonding method, and other display structures.

Custom 4.3 Inch IPS Touch Display Solutions

If your project requires a 4.3-inch IPS LCD with 480×272 resolution, 800 nits brightness, 3.3V RGB interface, and I2C capacitive touch, DINGTouch can evaluate the display and touch configuration according to your hardware requirements.

Whether you need frame bonding for cost-sensitive projects or full lamination for improved optical performance, our engineering team can help define a suitable display structure for your application.

Contact DINGTouch for a datasheet, interface drawing, sample evaluation, or customized 4.3-inch touch display solution.
