What is a Serial LCD Screen?

What is a Serial LCD Screen?

A serial LCD screen is a type of color LCD module that achieves display and touch interaction through serial communication. It integrates display, touch, and control functions, providing efficient display solutions for industries such as industrial control, medical, and smart homes.

Physical Structure of Serial LCD Screens

The physical structure of a serial LCD screen can be divided into three main components:

1. Touch Screen:

   • Includes capacitive touch screens or resistive touch screens for touch interaction.

   • Capacitive touch screens are more suitable for scenarios requiring multi-touch, while resistive touch screens are commonly used in industrial control applications where high interference resistance is required.

2. TFT LCD Display:

   • Provides high-resolution image display, forming the core of the visual interface.

   • Supports vibrant colors and sharp details, making it adaptable to various application needs.

3. Control Board:

   • Components: Consists of an MCU, FLASH memory, interface circuits, and a power module.

   • Core Functions:

     • Detects touch operations and responds to user input in real-time.

     • Controls the graphical user interface (GUI) of the TFT LCD.

     • Communicates with external control boards via serial interfaces (commonly including UART, RS-232, RS-485) for data exchange.

   • The control board is the core functional unit of the serial LCD screen, determining its functionality and performance.

Product Size Range

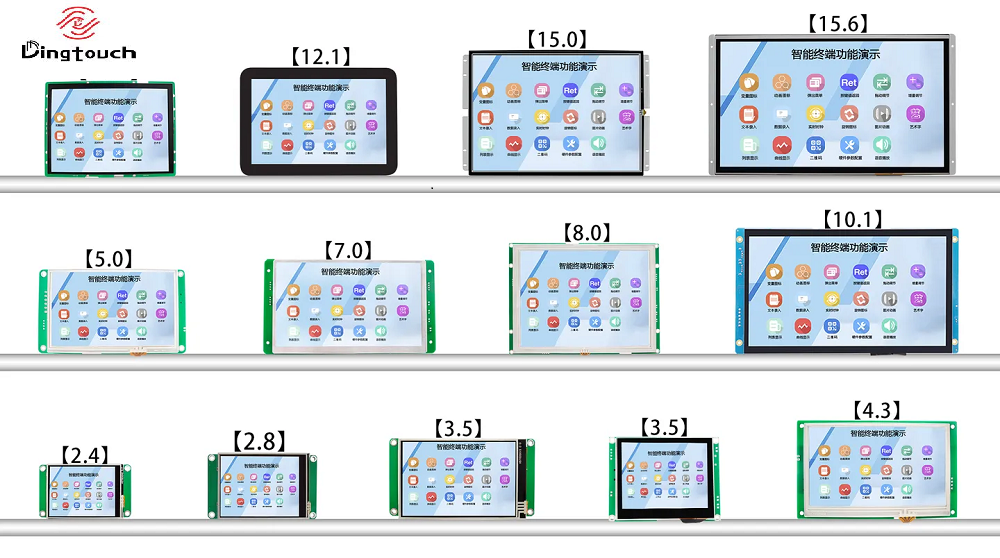

The standard size range of serial LCD screens spans from 2.4 inches to 15.6 inches, allowing for selection based on application requirements:

• Small Screens (e.g., 2.4 to 5 inches): Suitable for portable devices and smart home control panels.

• Medium Screens (e.g., 7 to 10.1 inches): Widely used in industrial control and human-machine interfaces.

• Large Screens (e.g., 12 to 15.6 inches): Often employed in medical devices and self-service terminals requiring larger display areas.

Key Advantages in Interface Development

A major advantage of serial LCD screens lies in their visual interface editing software, offering an intuitive and efficient design experience.

• Drag-and-Drop Design:

  • Developers can easily create and adjust user interfaces (UI) through simple drag-and-drop operations.

  • Complex interface designs can be accomplished without extensive programming knowledge.

• Rapid Iteration:

  • Speeds up interface development and functional verification, reducing development costs.

• Rich Functional Components:

  • Comes with built-in controls, graphical tools, and interactive modules to meet the needs of various industries.

Conclusion

Serial LCD screens are an ideal choice for display and touch solutions due to their integrated design, user-friendly development tools, and diverse communication interfaces. Their wide range of sizes and flexible development methods make them excel in fields like industrial control, smart devices, and medical displays.
