DINGTouch:Outdoor visibility of LCD screen remains a persistent challenge due to glare, reflections, and ambient light overpowering display brightness. Whether for smartphones, industrial equipment, or digital signage, achieving sunlight readability requires a combination of advanced display technologies, optical treatments, and practical adjustments. Below, we explore actionable strategies to enhance LCD screen visibility in direct sunlight, supported by technical insights and real-world solutions.



1. Technical Solutions for Sunlight Readability

A. Increase Display Brightness

The most straightforward method to combat sunlight is to overpower ambient light with a high-brightness LCD panel:

- High-Brightness LED Backlights: Displays with 1,000–3,000 nits (cd/m²) significantly outperform standard screens (200–500 nits). For example, industrial-grade TFT LCDs use powerful LED arrays to achieve 1,500+ nits, ensuring visibility even under direct sunlight.

- Efficient Light Guides: Optimized light guide plates distribute backlight uniformly, reducing hotspots and improving brightness efficiency.

B. Reduce Reflectance

Minimizing reflections from the screen surface is critical:

- Anti-Glare (AG) Coatings: Etched surfaces scatter incoming light, converting specular reflections into diffuse ones. AG treatments improve contrast by up to 50% in bright environments.

- Anti-Reflective (AR) Coatings: Multi-layer AR films reduce surface reflections to <2%, preserving color accuracy and contrast.

- Optical Bonding: Laminating the LCD with a touch panel or cover glass using optically clear adhesives (OCA) eliminates air gaps, cutting reflections by 60–80%.

C. Enhance Contrast Ratio

High contrast ensures readability by differentiating bright and dark elements:

- Dynamic Backlight Control: Adjusts brightness locally to maintain contrast ratios >1,000:1.

- Polarizer Optimization: High-transmittance polarizers improve light efficiency, boosting perceived contrast.

Technology	Impact on Sunlight Readability
High Brightness	Overpowers ambient light (1,000+ nits)
Optical Bonding	Reduces reflections by 60%
AG/AR Coatings	Improves contrast by 30–50%

2. Practical Tips for Immediate Visibility

For everyday users, simple adjustments can mitigate sunlight interference:

1. Adjust Viewing Angle: Position the screen perpendicular to sunlight to minimize glare.

2. Use a Sunshade or Hood: Physical barriers block direct light. DIY options include cardboard enclosures or commercial hoods.

3. Enable Maximum Brightness: Temporarily override auto-brightness settings for maximum output.

4. Wear Polarized Sunglasses: Reduces glare but may alter color perception; however, they can significantly enhance visibility in bright conditions.

5. Opt for Dark Themes: High-contrast interfaces (e.g., white text on black) improve legibility against bright backgrounds.

3. Advanced Solutions for Industrial Applications

In more demanding environments like construction sites or outdoor kiosks, additional measures may be necessary:

A. Thermal Management

Prolonged sun exposure causes overheating, leading to LCD degradation:

- Cooling Systems: Active fans or heat sinks maintain operating temperatures below 50°C.

- IR/UV Filters: Block 95% of infrared and ultraviolet radiation, preventing color shifts and component damage.

B. Adaptive Technologies

- Ambient Light Sensors: Automatically adjust brightness based on surroundings to maintain optimal visibility in changing lighting conditions.

- Transflective LCD: Combine reflective and transmissive modes, leveraging sunlight to enhance backlight efficiency while maintaining readability in lower light.

4. Maintenance and Longevity

To ensure optimal performance over time:

- Regular Cleaning: Remove dust and fingerprints to maintain anti-reflective properties.

- Avoid Direct Sunlight When Not in Use: Shield screens or power them off to prevent heat damage.

- UV-Resistant Films: Apply protective layers to prevent yellowing and contrast loss over time.

5. Emerging Technologies

The future of outdoor display technology is promising with several innovative solutions:

- MicroLED Display: Offer brightness levels exceeding 3,000 nits with lower power consumption.

- E-Ink in Color: Reflective displays that excel in direct sunlight without requiring backlighting are ideal for static content.

- OLED with Boosted Brightness: New panels achieve up to 2,000 nits while maintaining deep blacks.

6. Choosing the Right Display Technology

When selecting a display for outdoor use, consider the following factors:

- Brightness Levels: A minimum of 1,000 nits is typically required for effective outdoor visibility.

- Contrast Ratio: Higher ratios enhance readability by improving differentiation between light and dark elements.

- Color Accuracy: Display must maintain true colors even under bright conditions; this is crucial for applications like advertising where visual fidelity matters.

Different technologies offer various advantages:

- Transflective Displays: Ideal for environments where both bright sunlight and dim indoor lighting are present.

- OLED Display: Known for their superior color reproduction and contrast ratios but may require careful consideration regarding brightness levels outdoors.

- E-Ink Displays: Best suited for applications where static images are displayed since they do not require power when showing an image.

7. Real-world Applications

Sunlight-readable display find applications across various industries:

- Digital Signage: Used extensively in outdoor advertising where high visibility is paramount.

- Agricultural Equipment: Many modern tractors and farming machinery utilize sunlight-readable displays for operational efficiency.

- Smartphones and Tablets: Devices designed for outdoor use often incorporate advanced technologies to ensure usability under bright conditions.

Conclusion

Achieving sunlight readability for LCD screen demands a multi-faceted approach that includes boosting brightness, reducing reflections, optimizing contrast, and integrating adaptive technologies. While high-brightness industrial displays (1,000+ nits) are ideal for critical applications like digital signage or rugged tablets used outdoors, everyday users can leverage anti-glare films, adjustable hoods, and smart settings on their devices to improve visibility significantly.

Future advancements in MicroLED technology and transflective displays promise even better outdoor visibility with lower energy demands while maintaining high color fidelity.

Related Questions & Answers

1. How does screen brightness affect sunlight readability?

Higher brightness (measured in nits) allows displays to compete with ambient light effectively; a display rated at 1,500 nits can remain visible under direct sunlight compared to standard screens that may appear washed out at lower brightness levels.

2. Do anti-glare screen protectors work?

Yes! Anti-glare coatings diffuse reflections significantly; however, their effectiveness can vary based on quality—higher-end products typically provide better results.

3. Can I modify an existing LCD for outdoor use?

Yes! Optical bonding and aftermarket high-brightness backlights can retrofit screens; however, this process requires technical expertise and may not be cost-effective compared to purchasing purpose-built displays.

4. Why do some displays dim automatically outdoors?

Many devices come equipped with ambient light sensors that adjust brightness based on surrounding light levels; disabling auto-brightness settings can help achieve maximum visibility when needed.

5. Are OLED screen better than LCD in sunlight?

Modern OLED can outperform most LCD due to their higher brightness capabilities (up to 2,000 nits), but they are generally more expensive and less common in rugged applications compared to traditional high-brightness LCD.

DINGTouch: Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.
Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

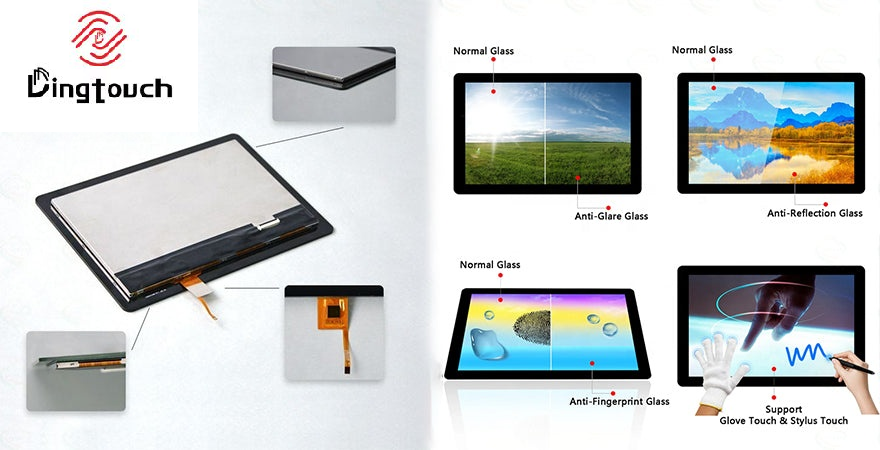

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch
