7 Inch IPS Industrial Touch Screen Display – 1024×600, 400 cd/m², 40-Pin LVDS

7 Inch IPS industrial touch screen Display – 1024×600, 400 cd/m², 40-Pin LVDS

1. 7 Inch 1024×600 IPS Display for Industrial Applications

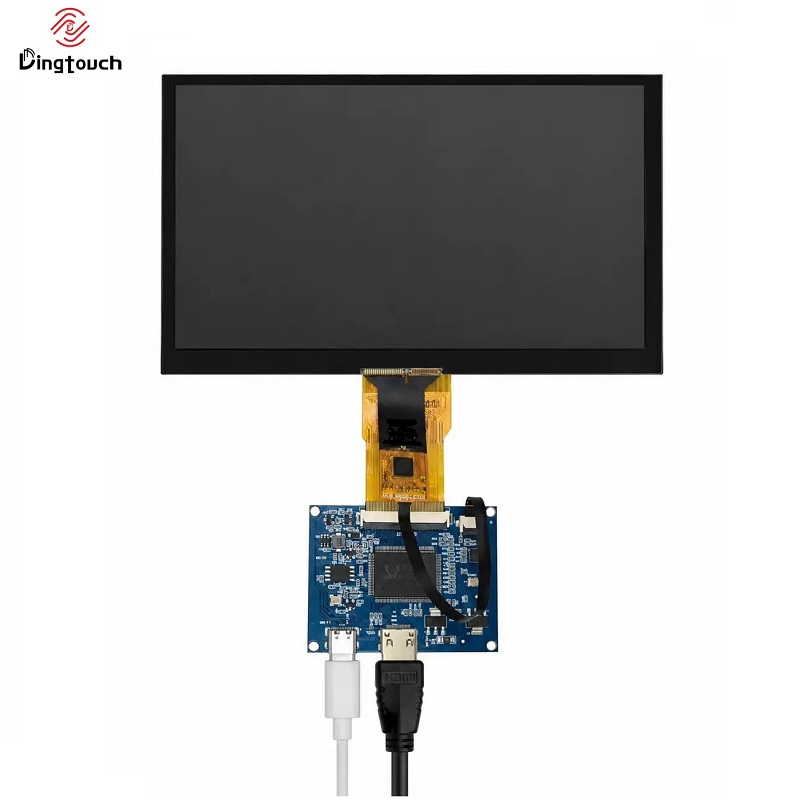

The DINGTouch 7 inch IPS industrial touch screen display combines a 1024×600 resolution TFT LCD with a reliable LVDS interface, providing a compact and practical display solution for industrial equipment, embedded systems and HMI applications.

With a 7 inch screen size and 16:9 aspect ratio, the display provides sufficient viewing area while maintaining a compact form factor, making it suitable for equipment where installation space is limited.

The IPS panel delivers stable image quality and wide viewing angles, making it suitable for applications where operators may view the display from different positions.

2. 1024×600 Resolution with 400 cd/m² Brightness

The display features a 1024×600 resolution and 400 cd/m² typical brightness, providing clear and readable images for indoor industrial environments and embedded equipment.

The resolution offers a practical balance between image quality, system compatibility and overall cost, making it suitable for a wide range of control interfaces and equipment displays.

For applications requiring higher brightness, sunlight readability or specialized optical performance, DINGTouch can evaluate alternative LCD configurations according to the project requirements.

3. 40-Pin LVDS Interface for Easy System Integration

The LCD uses a 40-pin LVDS interface, a commonly used interface for industrial displays and embedded systems.

LVDS provides a reliable connection between the display module and the customer's main control board. During the project development stage, DINGTouch can work with customers to confirm interface definitions, pin assignments, timing parameters and other display requirements.

This helps engineers reduce compatibility issues during display integration.

4. Customizable Capacitive Touch Screen

The 7 inch display can be integrated with a custom capacitive touch screen according to the customer's equipment design.

Depending on the application, the touch panel can be customized for:

• Cover glass size and thickness
• G+G or other touch structures
• Touch IC and controller
• FPC position and length
• Touch interface
• Active touch area
• Mounting holes and mechanical dimensions
• Surface treatment such as AG, AR or AF
• Glove or stylus touch requirements

This allows the display and touch panel to be designed as an integrated solution rather than using a standard off-the-shelf touch panel.

5. Integrated LCD and Touch Screen Solution

For OEM and ODM projects, DINGTouch can provide a complete LCD + capacitive touch screen solution based on the customer's mechanical and electrical requirements.

The display, touch panel and related components can be evaluated together during the design stage to improve compatibility and simplify integration.

For projects requiring additional optical performance, OCA or optical bonding can also be considered depending on the application environment.

6. Applications of the 7 Inch Industrial Touch Display

This 7 inch IPS touch screen display can be used in a variety of industrial and embedded applications, including:

• Industrial control panels
• HMI equipment
• Automation systems
• Test and measurement equipment
• Medical and laboratory equipment
• Smart control terminals
• Access control systems
• Communication equipment
• Embedded control systems
• Commercial and self-service equipment

7. Custom 7 Inch Touch Screen Display for OEM Projects

Standard display specifications do not always match the mechanical and electrical requirements of industrial equipment. DINGTouch therefore supports customization for OEM and ODM projects.

Depending on the project, customization can include LCD parameters, brightness, touch panel structure, cover glass, touch IC, FPC, interface, mechanical dimensions and bonding method.

With experience in industrial touch display development and manufacturing, DINGTouch can work with customers from initial specification evaluation through prototype development and mass production.

Technical Specifications
