Modern TFT touchscreen LCD display have become ubiquitous in consumer electronics, industrial control panels, and embedded systems. To enhance their usability and functionality, LCD overlay ICs play a crucial role by managing touch input, display control, and signal processing. This article explores which LCD overlay IC work best with modern TFT touchscreen LCD display, focusing on compatibility, performance, and integration.

Understanding LCD Overlay ICs for TFT touchscreen LCD Display

An LCD overlay IC for TFT touchscreen LCD display is an integrated circuit that interfaces between the TFT LCD panel and the touch sensor overlay. It manages the display signals and processes touch inputs, enabling smooth interaction and high-quality visual output. These IC often combine driver functions for the LCD panel, touch controller capabilities, and sometimes additional features like backlight control or memory.

Key Functions of LCD Overlay IC

- Display Driving: Controls the TFT LCD pixels by managing timing, voltage, and color data.

- Touch Sensing: Processes touch inputs from resistive or capacitive overlays, converting analog or digital signals into coordinates.

- Signal Interface: Supports various communication protocols like SPI, I2C, LVDS, or MIPI-DSI for data exchange with microcontrollers or processors.

- Additional Features: May include built-in memory, power management, and image processing to enhance display quality.

Types of LCD Overlay IC Compatible with TFT touchscreen LCD Display

Resistive touchscreen Controllers

Resistive touchscreen use two conductive layers that detect touch by measuring voltage changes. LCD overlay IC for resistive touchscreens are simpler and cost-effective, suitable for applications where multi-touch is not required.

- Example: The XPT2046 touch controller is widely used with TFT LCD driven by ILI9341 or ILI9486 driver IC. It communicates via SPI and supports 4-wire resistive touch sensing.

Capacitive touchscreen Controllers

Capacitive touchscreen detect touch through changes in capacitance and support multi-touch and gestures. LCD overlay IC for capacitive touchscreens are more complex and provide higher accuracy and responsiveness.

- Example: The GT911 touch chip integrated with ILI9488-driven TFT LCD offers multi-touch support and I2C communication, ideal for modern capacitive overlays.

- The FocalTech FT5426 controller is another popular capacitive touch IC, often paired with Sitronix ST7272A driver IC for IPS TFT LCD, delivering precise touch recognition and enhanced responsiveness.

Integrated Driver IC with Touch Controller

Some modern LCD overlay IC combine the TFT driver and touch controller into a single chip, simplifying design and reducing component count.

- Sitronix ST7272A is an example of a driver IC optimized for TFT LCD with capacitive touch overlays, providing smooth image rendering and touch performance.

- ST7282 Drive IC is used in some Rocktech TFT displays with integrated touch, offering compatibility with STM32 microcontrollers and LTDC interfaces.

Interface Considerations for LCD Overlay IC with TFT touchscreen Displays

Communication Protocols

- SPI (Serial Peripheral Interface): Common for both display and touch data, especially in smaller TFT modules (e.g., 2.8” to 3.5” sizes). It balances speed and simplicity.

- I2C (Inter-Integrated Circuit): Often used for capacitive touch controllers like GT911 or FT5426, providing multi-touch data to host controllers.

- LVDS (Low-Voltage Differential Signaling): Used in higher-resolution displays for noise immunity and longer cable lengths.

- MIPI-DSI (Mobile Industry Processor Interface - Display Serial Interface): High-speed serial interface common in smartphones and tablets, offering low power and high performance.

Compatibility with Microcontrollers and Processors

Modern LCD overlay IC must be compatible with popular microcontrollers like Arduino, ESP32, and STM32 series. For example, the ILI9341 and ILI9486 driver IC are well-supported by Arduino libraries, and capacitive touch IC like GT911 can interface via I2C with STM32 processors.

Performance Factors in Choosing the Best LCD Overlay IC

Display Quality and Response

- Color Depth and Resolution: Driver IC like ILI9488 support 16-bit color depth and resolutions up to 480x320 pixels, providing vivid images.

- Viewing Angle and Brightness: IPS TFT LCD with driver ICs such as Sitronix ST7272A offer superior viewing angles and brightness, enhancing user experience.

- Response Time: IPS panels driven by modern IC have faster response times than traditional TN TFT, reducing motion blur.

Touch Accuracy and Responsiveness

- Capacitive touch IC like GT911 and FT5426 provide multi-touch capabilities and high precision.

- Resistive touch controllers like XPT2046 are simpler but less precise and do not support multi-touch.

Power Consumption

- Modern driver IC integrate power management to optimize consumption.

- IPS TFT LCD may consume more power due to backlight requirements but offer better image quality.

Integration and Ease of Use

- Integrated driver and touch controller IC reduce design complexity.

- Availability of libraries and community support (e.g., Arduino, ESP32) facilitates development.

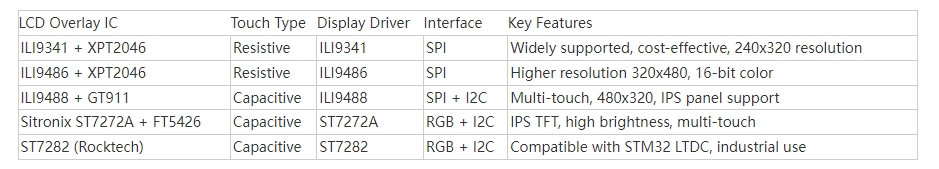

Popular LCD Overlay IC for Modern TFT touchscreen LCD Display

Conclusion

Choosing the best LCD overlay IC for TFT touchscreen LCD display depends on the application requirements, including touch type, display resolution, interface compatibility, and power consumption. For modern applications demanding high visual quality and multi-touch functionality, integrated driver ICs like Sitronix ST7272A or ILI9488 combined with capacitive touch controllers such as GT911 or FT5426 offer excellent performance. For cost-sensitive or simpler applications, resistive touch controllers like XPT2046 paired with ILI9341 or ILI9486 driver IC remain popular and effective. Understanding the interface protocols and ensuring compatibility with your microcontroller platform is essential for seamless integration.

FAQ

1. What is an LCD overlay IC for TFT touchscreen LCD display?

An LCD overlay IC is an integrated circuit that manages the interface between a TFT LCD panel and its touchscreen overlay, handling display driving and touch input processing.

2. Can capacitive overlay touchscreens be used with any TFT LCD display?

Yes, capacitive overlay touchscreens are compatible with various display types, including TFT LCD, LED-backlit LCD, and OLED, allowing enhanced touch functionality without compromising display quality.

3. What are the common interfaces used by LCD overlay ICs?

Common interfaces include SPI for communication with microcontrollers, I2C for capacitive touch controllers, LVDS for high-speed data transfer in larger displays, and MIPI-DSI for smartphone-grade displays.

4. Which LCD overlay ICs support multi-touch functionality?

Capacitive touch controllers like GT911 and FocalTech FT5426 support multi-touch and gestures, typically paired with driver IC such as ILI9488 or Sitronix ST7272A.

5. Are integrated driver and touch controller ICs better than separate components?

Integrated IC simplify design, reduce PCB space and cost, and often improve performance by optimizing communication between display and touch functions, making them preferable for modern TFT touchscreen LCD display.

 Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch :Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best Touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.

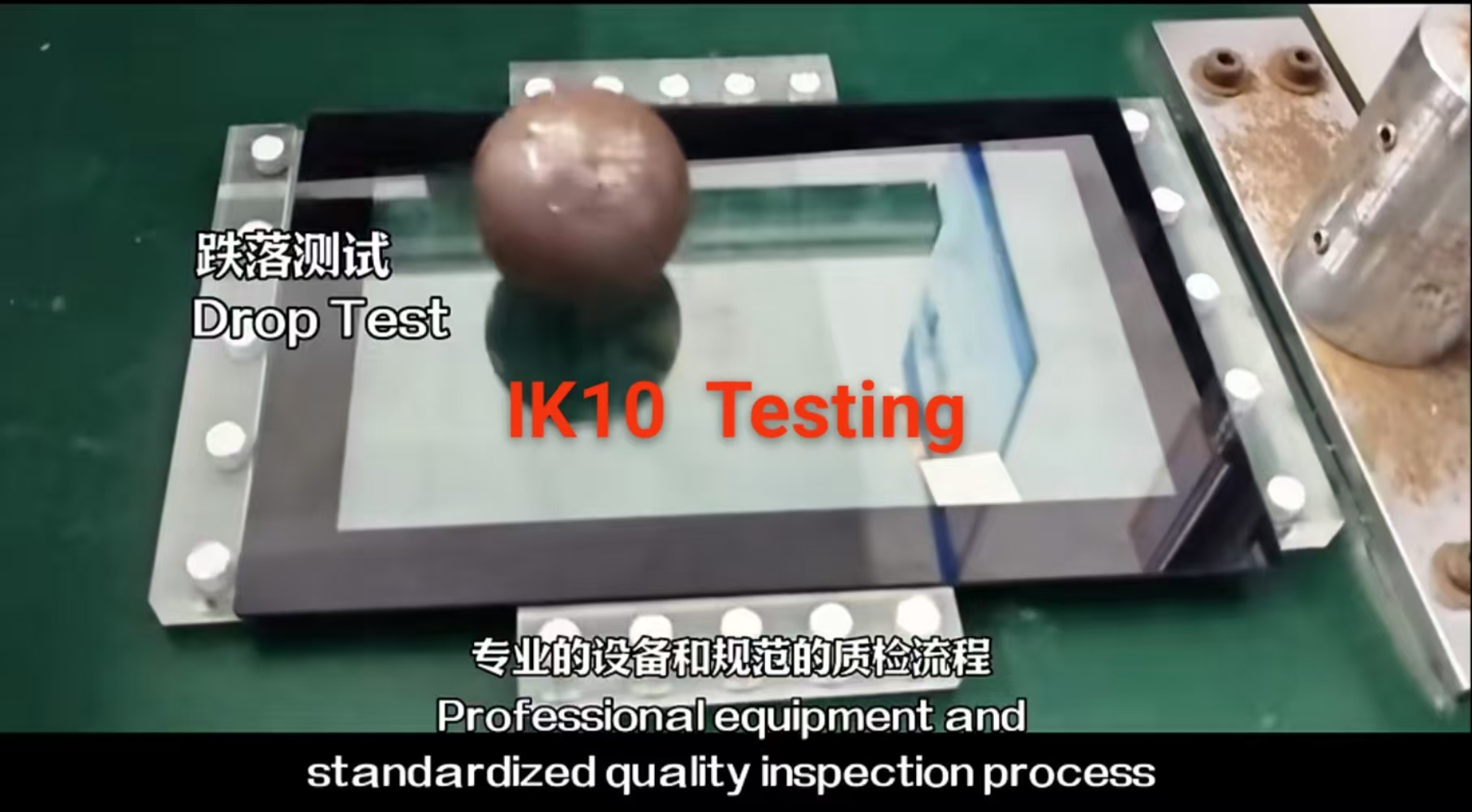

Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

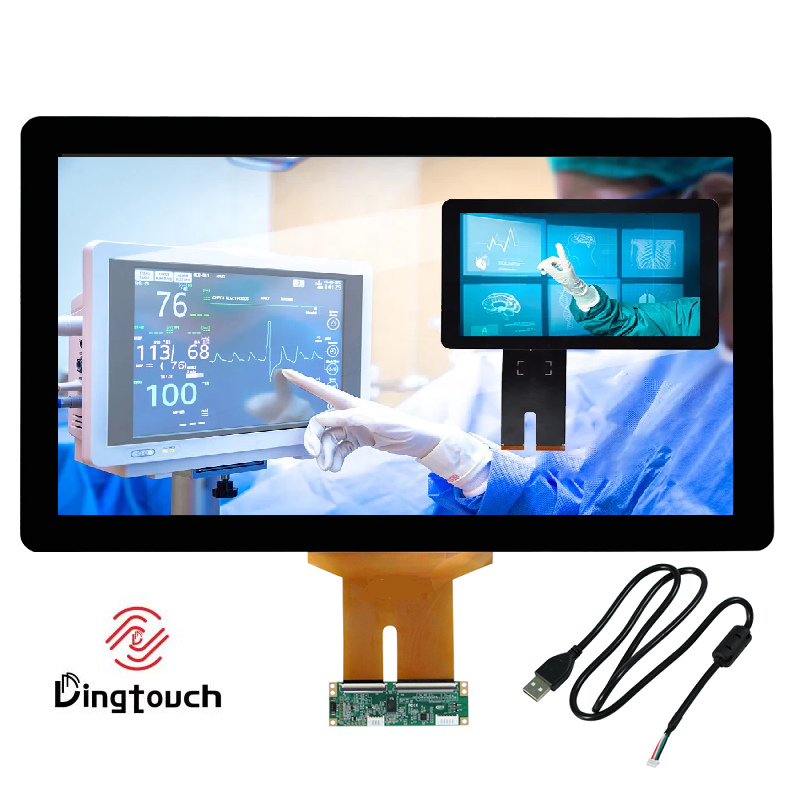

What DINGTOUCH can do:

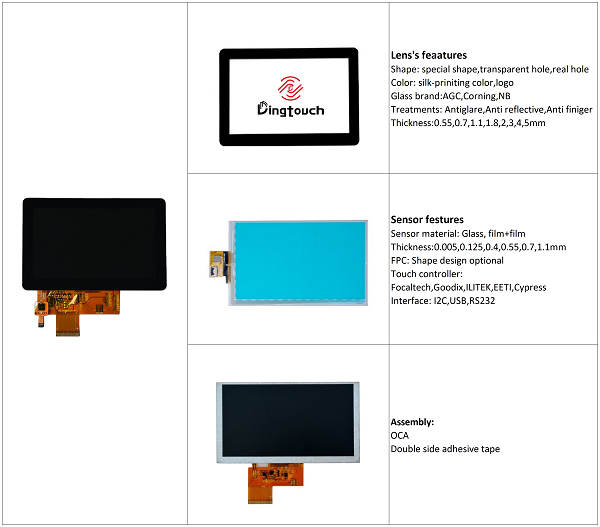

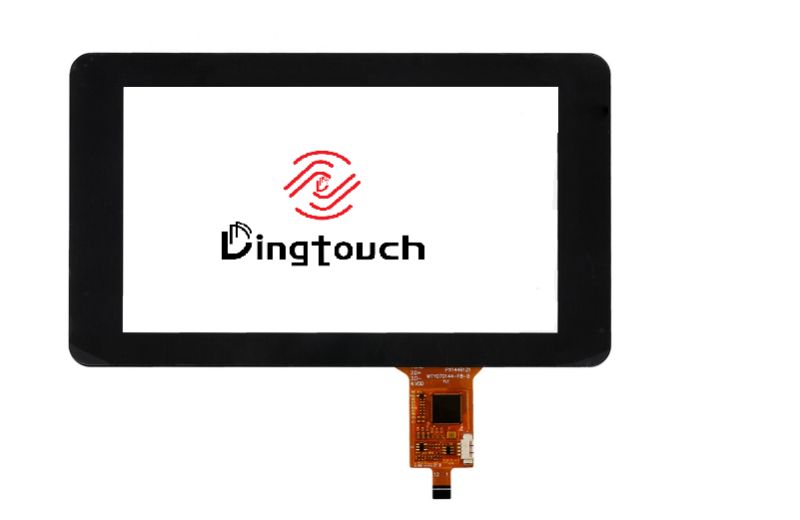

• PCAP  maximum size 65”
