What Is an LCD Controller Board?

What Is an LCD Controller Board?

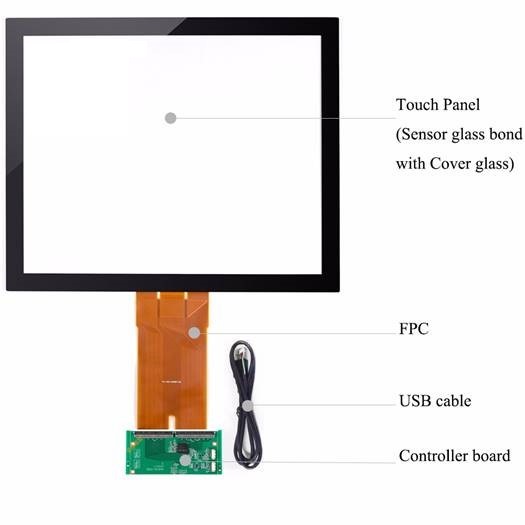

An LCD controller board—also known as an LCD driver board or adapter board—is a crucial hardware component that acts as a translator between host devices (like computers, mobile phones, Raspberry Pi, etc.) and LCD panels. It processes and converts various video input signals into a format that the LCD screen can understand, allowing proper display output. These boards are sometimes referred to as A/D boards (analog/digital) due to their signal conversion capabilities.

Contents

1. Working Principle of LCD Controller Board

2. Functions of LCD Controller Board

3. Advantages of LCD Controller Board

4. How to Choose an LCD Controller Board

Working Principle of an LCD Controller Board

The primary job of an LCD controller board is to receive, process, and output signals in a displayable format. Here's how it works:

> Signal Reception

Receives analog or digital video signals from a host device via common interfaces such as HDMI, VGA, DVI, LVDS, or DisplayPort.

> Signal Processing

Decodes and processes the signal—this may include:

• Resolution scaling

• Color and brightness adjustment

• Contrast tuning

> Signal Output

Sends the processed signal to the LCD via the appropriate panel interface (e.g., LVDS, eDP, TTL), controlling each pixel to form the correct image.

> Real-Time Feedback

Some advanced boards include real-time display feedback to auto-adjust parameters for optimal image quality.

Functions of an LCD Controller Board

The LCD adapter board performs several key functions to ensure smooth communication between devices and displays:

✅ Signal Conversion

Converts input signals from host devices into LCD-compatible formats—handling both signal level and protocol conversion.

✅ Driver and Backlight Control

Includes built-in logic to manage image output and backlight brightness, often with support for OSD (On-Screen Display) menus and external keypads.

✅ Interface Adaptation

Bridges the gap between internal LCD interfaces (like RGB, SPI, LVDS, eDP, MIPI DSI) and external inputs (USB, HDMI, VGA, DP, etc.).

✅ Power Management

Regulates and delivers stable power to the LCD panel and backlight system, protecting against over/under-voltage scenarios.

Advantages of an LCD Controller Board

 Enhanced Compatibility

Allows a broader range of displays to be used with various devices by resolving interface mismatches.

 High Performance

Modern boards use powerful image processors to ensure smooth, vibrant, and high-resolution output.

 Energy Efficiency

Optimized power control can extend device life and reduce energy consumption.

 Easy Integration

Modular design allows integration with other features (e.g., touch functionality, sensors), offering a complete embedded solution.

How to Choose an LCD Controller Board

Choosing the right controller board ensures performance, compatibility, and reliability. Here are the key factors to consider:

1. LCD Panel Compatibility

• Resolution and Interface: Ensure the board supports your panel's native resolution and connection type (e.g., LVDS, eDP).

• Panel Voltage & Power: Match voltage requirements precisely.

• Refresh Rate & Color Depth: Important for media-rich or real-time displays.

2. Display Input Options

• Input Compatibility: Check for HDMI, VGA, DVI, DP, etc.

• Multiple Source Switching: Look for boards supporting seamless switching if using multiple video sources.

3. Backlight Support

• Ensure it includes a backlight driver compatible with your panel's LED backlight system.

4. OSD (On-Screen Display)

• Integrated OSD allows end-users to adjust brightness, contrast, input source, and more without extra software.

5. Environmental and Application Requirements

• Temperature Tolerance: Vital for outdoor, industrial, or rugged use.

• Size & Mounting: Compact designs are important for embedded or space-constrained environments.

Conclusion

LCD controller boards are essential in bridging digital devices and LCD screens. They offer flexibility, performance, and integration potential for a wide range of applications—from consumer electronics to industrial displays. However, they do add complexity and cost, so choosing the right board is critical.
