Industrial test instrument TFT display technology

Industrial test instrument TFT display technology

 In today’s rapidly advancing technological landscape, the need for efficient, durable, and high-performance testing instruments in various industries is more critical than ever. Among the key components of modern industrial testing instruments is the TFT (Thin-Film Transistor) display, which plays an essential role in ensuring clear, reliable, and real-time data visualization. TFT display have gained significant popularity due to their superior image quality, durability, and versatility, making them an ideal choice for industrial testing applications. This article will explore the role of TFT display in industrial testing instruments, their advantages, key applications, and the factors to consider when selecting a suitable display.

What is TFT Display Technology?

Basic Working Principle of TFT Display

TFT technology refers to a specific type of Liquid Crystal Display (LCD) that uses thin-film transistor technology to control the individual pixels in the display panel. Unlike traditional LCD that rely on a simple grid structure to control the pixels, TFT displays use a thin-film transistor for each pixel, allowing for more precise control and higher resolution.

The display works by controlling the backlight, which passes through liquid crystals that align differently based on the voltage applied to them. Each transistor acts as a switch that regulates the voltage for each individual pixel, enabling the creation of vivid and sharp images. This technology makes TFT displays highly suitable for industrial testing instruments, where clarity, contrast, and precision are paramount.

Key Features of TFT Display in Industrial Applications

Superior Visual Quality

One of the most significant advantages of TFT display is their superior visual quality. They offer bright, clear, and highly detailed images, making them ideal for industrial testing instruments that need to display complex data and measurements. The high resolution ensures that every detail is visible, reducing the chances of errors due to poor readability.

TFT display also provide excellent contrast ratios and color reproduction, which is especially important for instruments used in industries such as automotive, medical, and electronics testing. In these fields, the ability to differentiate between subtle variations in data is crucial, and a TFT display delivers this capability effectively.

Wide Viewing Angles

Another benefit of TFT display is their wide viewing angles. In industrial environments, instruments may be viewed from different angles or by multiple operators simultaneously. TFT technology ensures that the display remains readable and vibrant from almost any angle, improving the usability and versatility of the testing equipment.

Robust Durability and Reliability

Industrial environments are often harsh, with exposure to vibrations, high temperatures, and dust. TFT display are designed to withstand these conditions, offering increased durability compared to other display technologies. They are resistant to shock, temperature fluctuations, and environmental hazards, making them highly reliable for long-term use in demanding industrial settings.

Applications of TFT Display in Industrial Testing Instruments

Automotive Testing Instruments

TFT display have become a standard feature in automotive testing instruments, where they are used to display real-time data such as engine performance, emissions, and diagnostic information. In these applications, the TFT display provides clear graphical representations of complex data, enabling automotive technicians to make informed decisions quickly. The ability to read and analyze data on a bright, clear screen is essential for identifying issues and improving diagnostic accuracy.

Medical Devices

In the medical industry, precision and clarity are crucial. TFT display are used in various medical testing instruments, such as ultrasound machines, blood pressure monitors, and ECG devices. The high-resolution display ensures that medical professionals can accurately interpret readings and make timely diagnoses. Furthermore, TFT display offer the ability to show high-quality images and graphs, which is particularly useful in medical imaging applications.

Electronics Testing

In electronics testing, TFT display provide a clear and detailed view of electrical measurements, circuit diagrams, and waveforms. The ability to display complex graphs and visual data makes them an indispensable tool for engineers and technicians working with electronics. TFT technology helps ensure that the measurements are displayed with high precision, enabling accurate troubleshooting and analysis.

Factors to Consider When Selecting TFT Displays for Industrial Testing Instruments

Size and Resolution

The size and resolution of the TFT display are critical factors to consider when selecting a display for industrial testing instruments. The size of the display should be appropriate for the type of data being shown, and the resolution should be high enough to ensure clarity and precision. In applications where fine details need to be visible, such as in medical or electronics testing, a high-resolution display is essential.

Additionally, the size of the display should complement the overall design of the testing instrument. It should be large enough to allow for comfortable viewing but not so large that it compromises the instrument’s portability or ease of use.

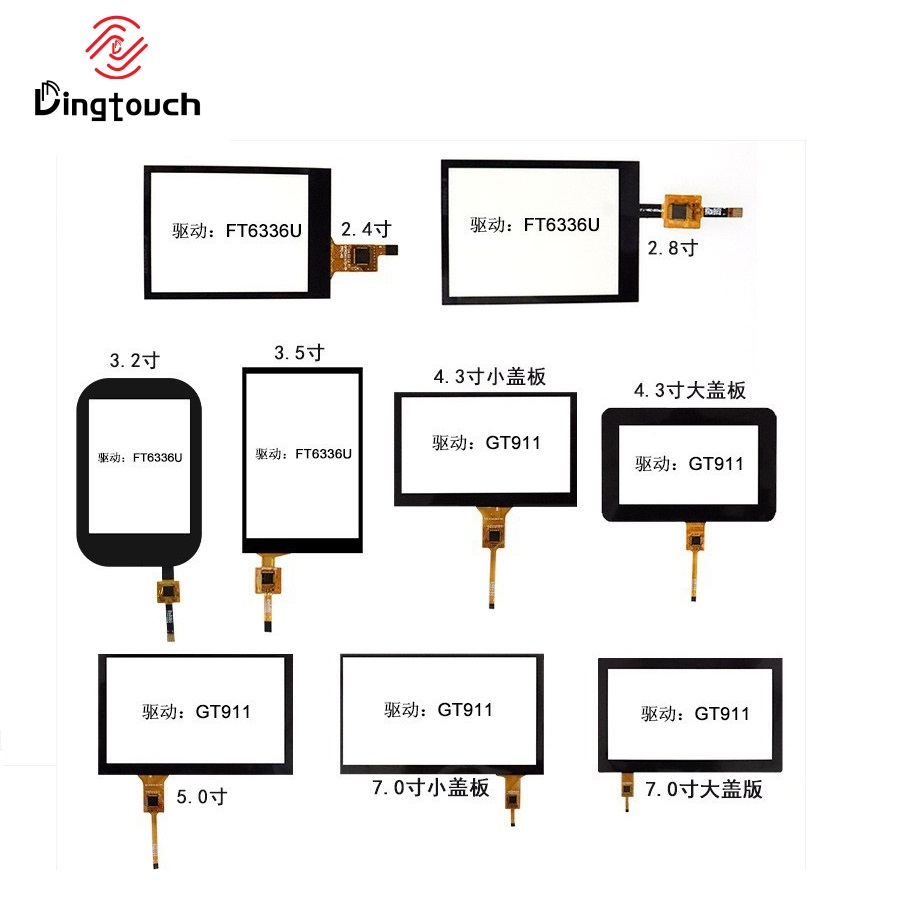

touchscreen Functionality

In many modern industrial testing instruments, TFT display are integrated with touchscreen functionality. This feature allows for more interactive and user-friendly operation, as it enables technicians to input commands, navigate menus, and adjust settings directly on the screen. touchscreen displays are particularly beneficial in applications where quick adjustments or on-the-fly analysis are required.

When choosing a TFT display with touchscreen capabilities, it is important to ensure that the touchscreen is responsive, accurate, and durable. The screen should also be protected from damage caused by constant use in harsh industrial environments.

Brightness and Backlighting

Since industrial testing instruments are often used in environments with varying lighting conditions, the brightness and backlighting of the TFT display are crucial considerations. A display with high brightness ensures that the screen remains visible even in brightly lit areas. Additionally, adjustable backlighting allows users to optimize the display’s visibility based on the surrounding lighting conditions, reducing eye strain and improving usability.

Environmental Protection

Given that industrial testing instruments are often exposed to dust, moisture, and extreme temperatures, it is essential to select TFT display that are designed with environmental protection in mind. Many TFT display are available with IP (Ingress Protection) ratings, indicating their resistance to dust and water. Choosing a display with a high IP rating ensures that the instrument can be used safely in challenging environments.

Trends in TFT Display Technology for Industrial Testing Instruments

Integration with Advanced Technologies

As technology continues to evolve, TFT display are becoming more integrated with advanced technologies such as Artificial Intelligence (AI), the Internet of Things (IoT), and Augmented Reality (AR). In the future, industrial testing instruments may feature TFT displays that not only show real-time data but also incorporate AI-driven analytics, predictive maintenance alerts, and AR overlays for more immersive and informative user experiences.

For instance, AI algorithms could be integrated into testing instruments to analyze data on the display and provide recommendations or warnings. AR could be used to overlay additional information or instructions onto the display, providing real-time guidance for operators.

Flexible and Transparent Displays

Another emerging trend is the development of flexible and transparent TFT display. These displays can be bent or stretched to fit different shapes and forms, making them suitable for applications where traditional rigid displays would not be feasible. Transparent displays open up possibilities for new user interfaces and design innovations, especially in applications where space is limited or where the display needs to be integrated into a larger system.

Conclusion: Choosing the Right TFT Display for Industrial Testing Instruments

TFT display offer significant advantages in terms of image quality, durability, and usability for industrial testing instruments. By providing clear, high-resolution displays with wide viewing angles and robust durability, TFT technology has become the go-to choice for many industries that rely on precise measurements and real-time data visualization.

When selecting a TFT display for industrial testing instruments, it is important to consider factors such as display size, resolution, touchscreen functionality, brightness, and environmental protection. With the continuous advancements in TFT display technology, future trends such as AI integration and flexible displays promise to further enhance the functionality and versatility of industrial testing instruments.

By understanding the key features and considerations of TFT display, industries can make informed decisions about which display technology is best suited for their testing applications, ensuring improved efficiency, accuracy, and reliability in their operations.
