DINGTouch:Cutting an LCD screen is a delicate process that requires precision, the right tools, and a clear understanding of the steps involved. Whether you are repairing a damaged screen or repurposing an old monitor, this guide will provide you with detailed instructions on how to safely and effectively cut an LCD screen.

1. Understanding the LCD Structure

Before diving into the cutting process, it's essential to understand the structure of an LCD screen. An LCD (Liquid Crystal Display) consists of several layers:

- Front Glass Layer: This is the outermost layer that protects the internal components.

- Polarizer Films: These layers help control light and enhance visibility.

- Liquid Crystal Layer: This is where the actual display occurs.

- Backlight: Provides illumination for the display.

Knowing these components will help you handle the screen properly during cutting. Each layer serves a specific purpose, and understanding their functions can aid in making informed decisions during the cutting process.

2. Tools Required

To cut an LCD screen, you will need specific tools:

- Safety Glasses: Protect your eyes from glass shards.

- Cutting Mat: A surface that can absorb impact and protect your work area.

- Utility Knife or Glass Cutter: For scoring the glass.

- Ruler: To ensure straight cuts.

- Adhesive Tape: To hold the layers in place during cutting.

- Screwdriver Set: For disassembling any casing or frame.

- Heat Gun (optional): Can be used to soften adhesive if necessary.

- Tweezers: Helpful for handling small components and layers.

3. Preparing the Workspace

Ensure your workspace is clean and well-lit. Lay down your cutting mat and gather all necessary tools within reach. A clutter-free environment will help you focus on the task at hand and minimize distractions.

4. Disassembling the Monitor

If you're cutting an LCD from a monitor, follow these steps:

1. Unplug the Monitor: Safety first! Ensure that the monitor is completely powered off and unplugged.

2. Remove the Frame: Use a screwdriver to remove screws holding the frame in place. Carefully pry off any clips or adhesive holding it together.

3. Take Out Internal Components: Remove circuit boards and any other components that may obstruct access to the LCD panel.

4.1 Handling Internal Components

When removing internal components, take care not to damage any wiring or connectors. It's advisable to take pictures as you go along so you can reference them when reassembling later.

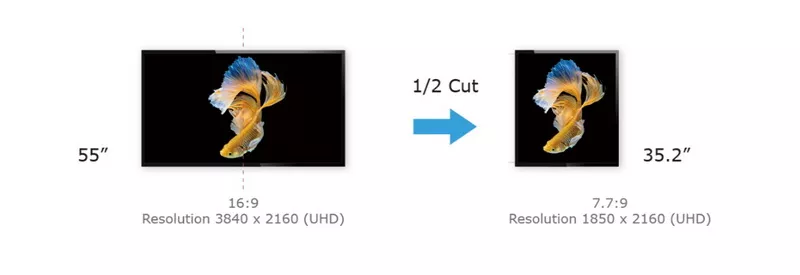

5. Cutting Process

Step 1: Scoring the Glass

1. Place the LCD screen on your cutting mat with the display side facing down.

2. Use a ruler to measure and mark where you want to cut.

3. Score along your marked line using a utility knife or glass cutter. Apply firm, even pressure without cutting all the way through.

Step 2: Breaking the Glass

1. After scoring, gently apply pressure on either side of the score line to break it along the scored path.

2. If necessary, use a small tap with a hammer on a block of wood to encourage breaking.

Step 3: Removing Layers

1. Carefully peel away polarizer films if needed, using adhesive tape to lift them without damaging other layers.

2. If you need to separate multiple layers, repeat scoring and breaking as necessary.

5.1 Dealing with Adhesive Residue

Sometimes, adhesive residue can remain after cutting. You can use isopropyl alcohol on a cloth to clean these areas gently without harming delicate components.

6. Sealing Edges

After cutting, it's crucial to seal any exposed edges to prevent damage:

- Use UV glue or adhesive tape along cut edges.

- Ensure no glue seeps into sensitive areas of the display.

6.1 Importance of Sealing

Sealing edges is vital not only for aesthetic purposes but also for protecting internal components from dust and moisture, which can lead to further damage over time.

7. Testing Your Work

Once you have cut and sealed your LCD screen, it's time to test it:

1. Reassemble any components removed earlier.

2. Plug in the monitor and power it on.

3. Check for display issues such as dead pixels or color inconsistencies.

7.1 Troubleshooting Common Issues

If your monitor does not display correctly after reassembly, consider checking connections again or re-evaluating your cut for any potential damage done during the process.

8. Additional Tips for Success

- Practice on Old Screens: If you're new to this process, consider practicing on old or non-functional screens before attempting to cut valuable displays.

- Patience is Key: Rushing through this process can lead to mistakes; take your time with each step for better results.

- Use Proper Lighting: Good lighting will help you see fine details when scoring and cutting glass.

9. Conclusion

Cutting an LCD screen can be a rewarding yet challenging task that requires careful planning and execution. By following this guide, you can successfully cut an LCD screen for repairs or repurposing projects while minimizing risks of damage.

The skills acquired through this process can be beneficial in various DIY projects involving electronics and display, allowing you to save money on repairs or create custom solutions tailored to your needs.

Related Questions

1. What safety precautions should I take when cutting an LCD screen?

Always wear safety glasses to protect against glass shards, work in a well-lit area, and ensure all electrical components are unplugged before starting.

2. Can I use regular glass cutters for LCD screens?

Yes, but ensure they are sharp and designed for precise scoring; otherwise, you risk breaking more than intended.

3. What should I do if my cut isn't straight?

If your cut is uneven, you can score again along the edge to break off excess material carefully.

4. Is it possible to repair an LCD screen after cutting?

Yes, if done correctly, you can repair or replace damaged sections by sealing them properly after cutting.

5. What types of adhesive are best for sealing cut edges?

UV glue is recommended as it provides strong adhesion without damaging sensitive electronic components.

By following these guidelines and tips, you're now equipped with comprehensive knowledge about how to cut an LCD screen effectively while ensuring safety throughout the process!
