1. Overview of Circular Display

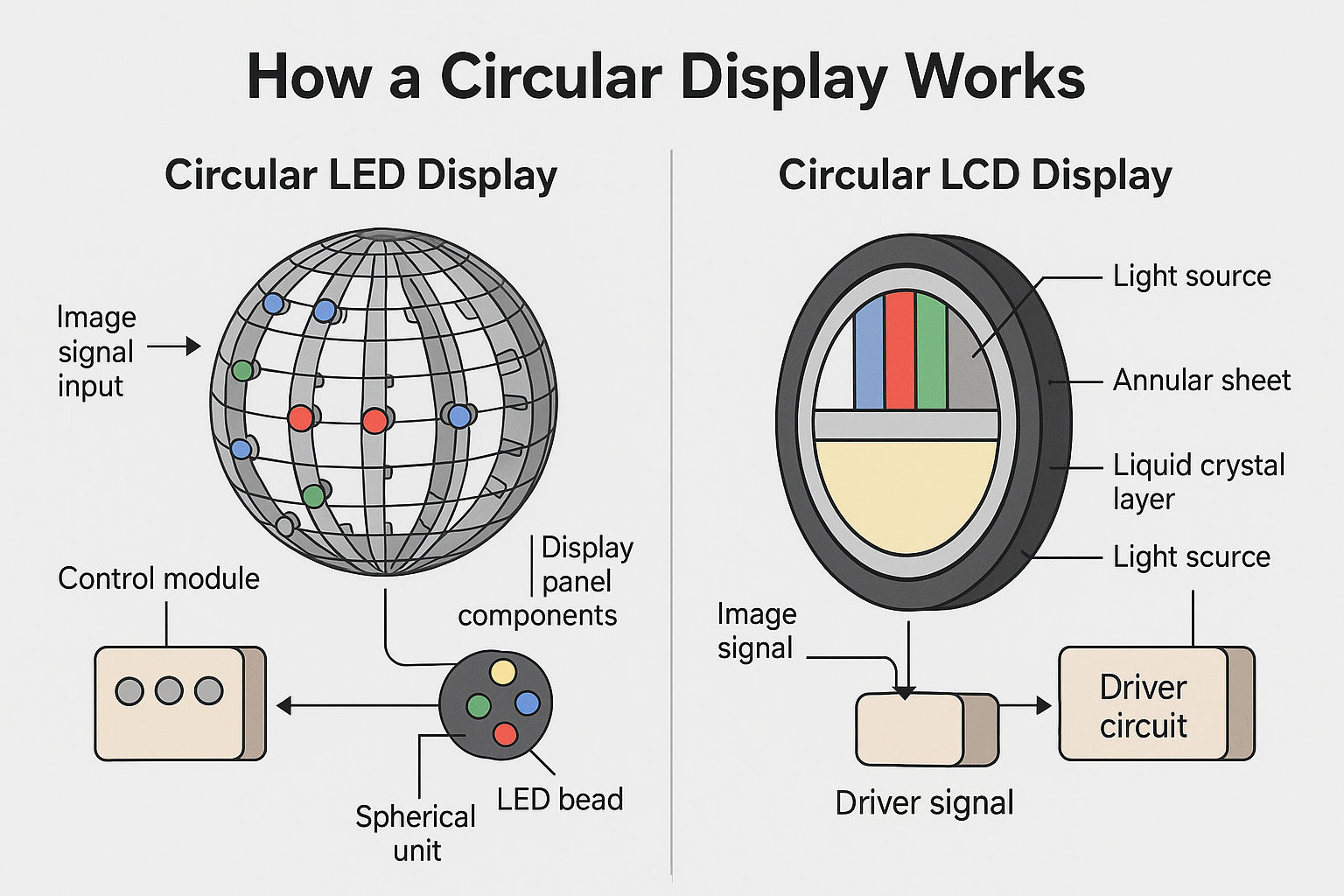

Circular displays, including LED-based spherical screens and LCD-based round panels, have emerged as a response to modern design aesthetics and specialized functional demands. Their unique form factors break away from traditional rectangular screens, offering a visually striking interface ideal for creative installations, consumer electronics, and industrial applications.

2. Working Principle of Circular LED Display

2.1 Structural Components

• Spherical Units: Modular LED panels with curved surfaces interconnected to form a seamless circular display.

• Display Panel Components: Include radial heat-dissipating strips, circumferential mounting frames, and structural brackets for mechanical support and cooling.

• LED Beads (Pixels): Individually addressable diodes distributed across the spherical surface to emit light and form images.

• Control Module: Comprises a core processing system and multiple unit control boards responsible for pixel-level signal processing.

2.2 Operating Mechanism

1. Image Signal Input: Digital video signals from computers, media players, or network controllers are fed into the system.

2. Signal Processing: The control module maps flat image data onto the spherical geometry using pixel-mapping algorithms.

3. LED Activation: Each LED bead is driven to a specific brightness and color via Pulse Width Modulation (PWM).

4. Image Rendering: The collective illumination of LEDs creates smooth, high-resolution visuals across the curved surface.

2.3 Specialized Techniques

• Custom LED Modules: Designed with precise curvature to eliminate seams and maintain optical uniformity.

• Wiring Strategies:

  • Radial Wiring: Circuits run outward from the center for even current distribution.

  • Fan-Shaped Wiring: Optimized for circular segmentation and signal synchronization.

• Geometric Calibration: Advanced mapping algorithms ensure distortion-free content display on non-planar surfaces.

3. Working Principle of Circular LCD Display

3.1 Structural Components

• Backlight Module: Uniform light source, often LED-based, providing illumination across the round panel.

• Liquid Crystal Layer: Sandwiched between transparent electrodes, this layer modulates light by molecular alignment.

• Annular Sheet: Specialized optical layer that guides light uniformly in circular geometry.

• Color Filter: RGB sub-pixels combined to produce full-color visuals.

• Driver Circuit: Integrated chip (IC) array controlling pixel voltages and timing.

3.2 Display Mechanism

1. Voltage Control: The driver IC applies voltage to liquid crystal molecules, altering their orientation.

2. Light Modulation: Molecular alignment controls light transmission, enabling grayscale modulation.

3. Color Generation: RGB sub-pixels combine under varying intensities to form true-color images.

4. Circular Adaptation: Edge pixels are masked or redefined to fit the circular display boundary precisely.

3.3 Design Optimization

• Custom TFT Arrays: Tailored pixel layouts maintain high pixel density across circular edges.

• Driver Routing: Circular PCBs and flexible circuits replace linear routing to match radial symmetry.

• Thermal Management: Edge-mounted heat spreaders ensure uniform panel temperature for stable color performance.

4. Comparison: LED vs. LCD Circular Display

5. Key Applications

• Retail & Commercial Spaces: Interactive advertising kiosks and dynamic store displays.

• Entertainment Venues: Immersive backdrops in theaters, concerts, and theme parks.

• Transportation Hubs: Circular information boards in airports and railway stations.

• Automotive & Aviation: Instrument clusters and control panels adopting circular LCD.

• Consumer Electronics: Smartwatches, fitness trackers, and IoT devices with compact round screens.

6. Future Development Trends

• MiniLED and MicroLED Integration: For ultra-fine pixel pitch and higher energy efficiency.

• Flexible OLED Circular Displays: Enabling bendable and frameless designs for wearables.

• AI-Powered Calibration: Automated geometry correction for complex spherical LED installations.

• AR/VR Integration: Circular displays as compact, high-density interfaces for mixed-reality devices.

• Sustainability Enhancements: Low-power circuits and recyclable materials reducing environmental footprint.
