High Refresh Rate Touch Displays: From 60Hz to 144Hz, How Display Technology Achieves Smoother Performance

60Hz vs 144Hz Display: How High Refresh Rate Technology Transforms touchscreen Experiences

DINGTouch Technical Guide to LCD Response Time, Overdrive, and Industrial Touch Display Performance

When choosing a display, many users focus on resolution, brightness, and screen size. However, refresh rate has become another critical factor affecting user experience.

From smartphones and gaming monitors to industrial HMI systems and medical equipment, displays are moving from traditional 60Hz toward 90Hz, 120Hz, and even 144Hz high refresh rates.

But what actually happens inside a display when the refresh rate increases?

How does an LCD panel transition from updating 60 images per second to 144 images per second?

The answer involves a combination of:

• Liquid crystal material technology
• Display driver IC performance
• Overdrive algorithms
• Response time optimization
• Thermal and power management

As a professional custom touch display manufacturer, DINGTouch focuses on developing reliable industrial touch display solutions that balance speed, durability, and long-term stability.

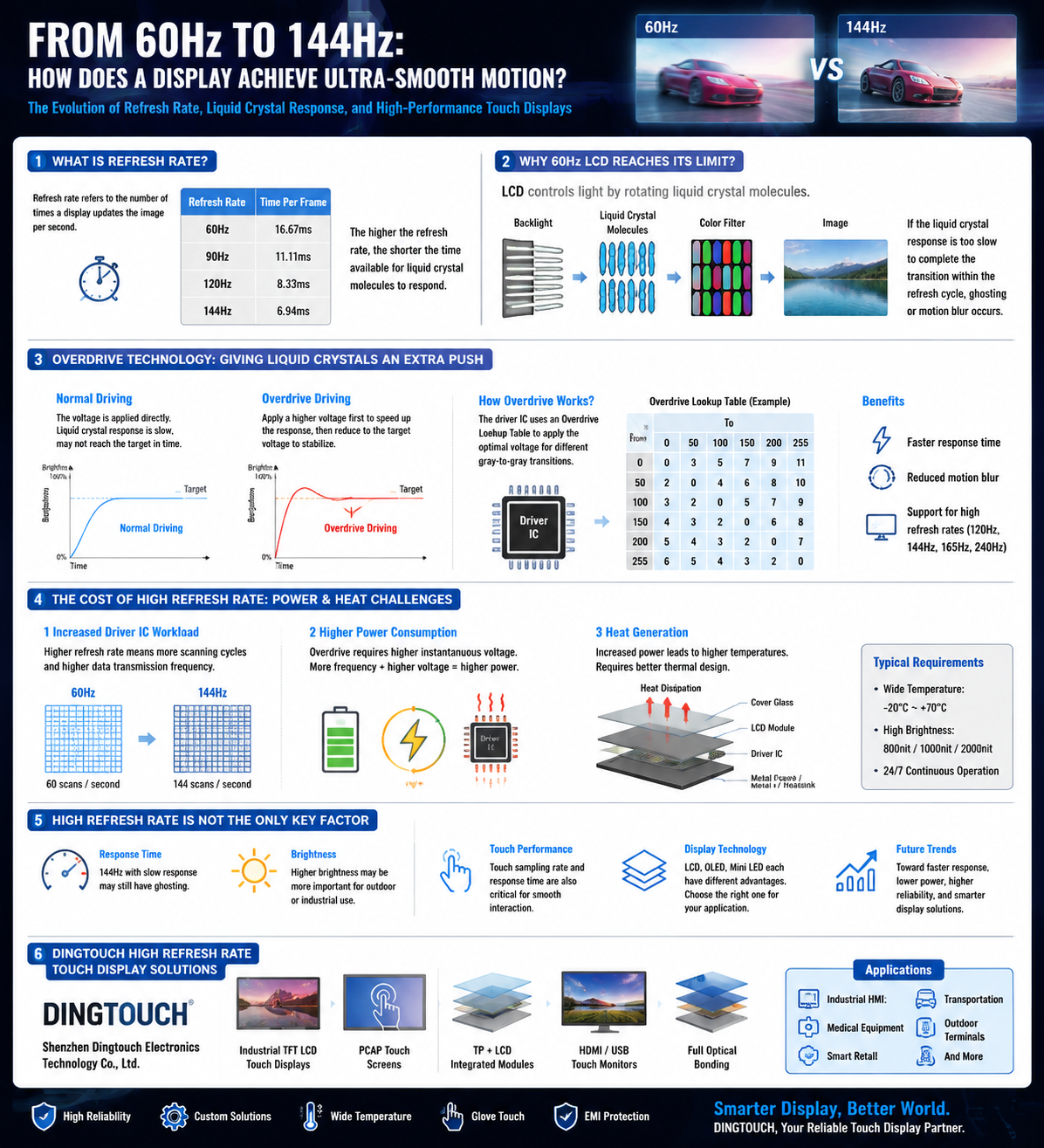

1. What Does Refresh Rate Mean?

Refresh rate refers to how many times a display updates the image every second.

For example:

The higher the refresh rate, the smoother moving images appear.

The time available for each frame:

At 60Hz, the LCD pixel has enough time to change state.

At 144Hz, the pixel must complete the same transition in less than half the time.

This creates a major challenge for LCD technology.

2. Why Is LCD Response Time Important for High Refresh Rate?

Unlike OLED displays, LCD panels rely on liquid crystal molecules to control light transmission.

The process is:

Backlight
↓
Liquid Crystal Layer
↓
Color Filter
↓
Final Image

When voltage changes, liquid crystal molecules rotate to control how much light passes through.

The speed of this movement is called:

Response Time

Early LCD specifications focused on:

Black-to-White Response Time

However, real images contain many grayscale transitions.

Therefore, modern displays focus on:

GTG (Gray-to-Gray Response Time)

For example:

• Dark gray → light gray
• Blue → purple
• Different brightness levels

If the response time is slower than the refresh cycle:

The previous image remains partially visible when the next image appears.

This creates:

• Motion blur
• Ghosting
• Image trailing

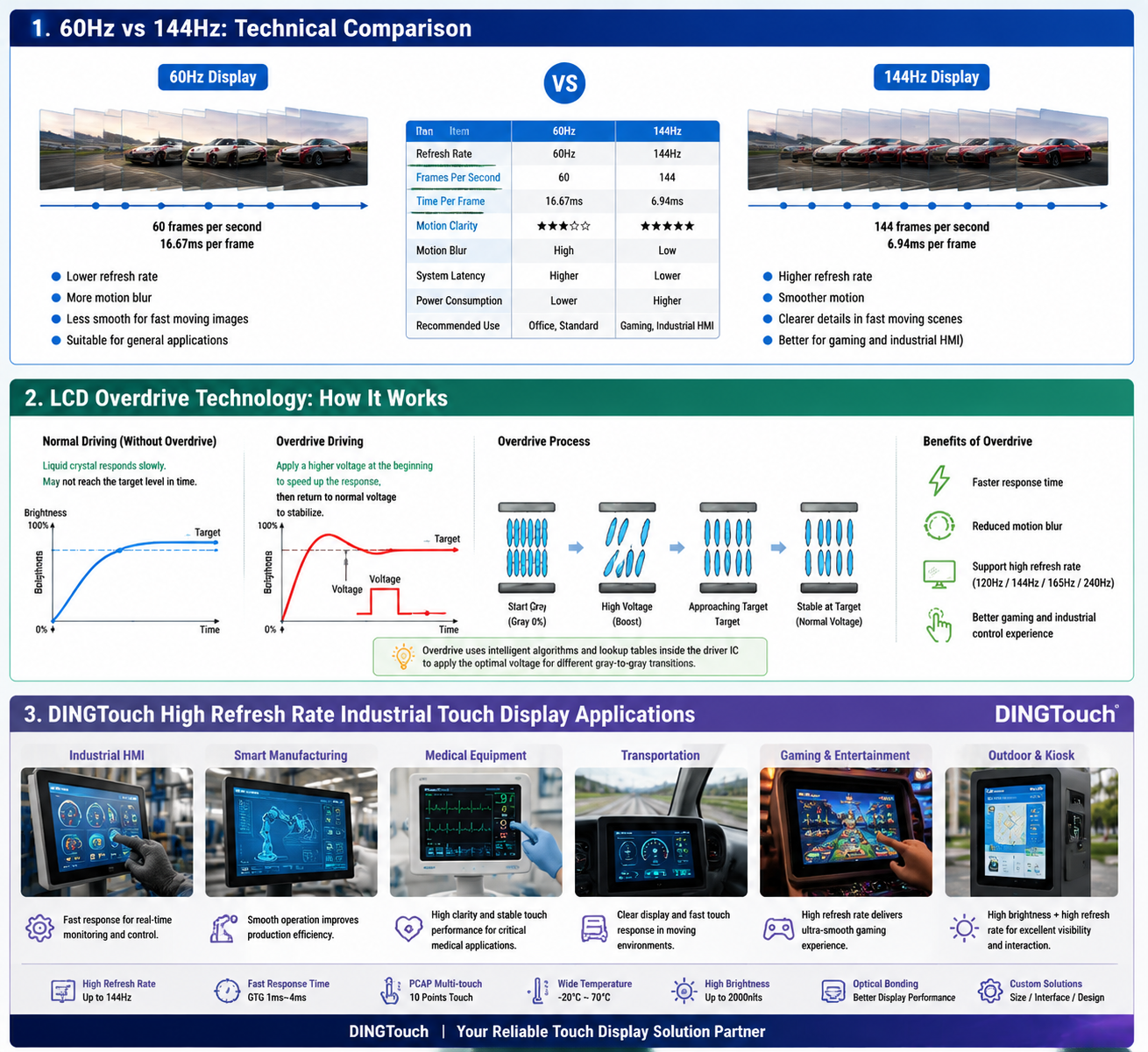

3. Overdrive Technology: The Key Behind Fast LCD Response

Liquid crystal molecules have physical movement limitations.

So how can LCD panels achieve 144Hz performance?

The solution is:

Overdrive Technology

Overdrive temporarily increases the driving voltage to accelerate pixel transitions.

Without Overdrive:

The pixel slowly moves toward the target brightness.

With Overdrive:

The driver IC applies a stronger voltage pulse.

The liquid crystal molecules rotate faster.

Once the target position is reached, the voltage returns to normal.

This process is similar to:

A vehicle accelerating quickly before maintaining a stable speed.

4. How Driver IC Algorithms Improve Display Speed

Modern LCD panels use intelligent algorithms stored inside the display controller.

One important technology is:

Overdrive Lookup Table (LUT)

The system calculates:

• Previous grayscale value
• Target grayscale value
• Required compensation voltage

Different transitions require different driving strategies.

For example:

Black → Gray

requires different compensation compared with:

Gray → White

Through precise tuning:

LCD response time can be reduced significantly, allowing support for:

• 120Hz
• 144Hz
• 165Hz
• 240Hz

high refresh applications.

5. High Refresh Rate Also Creates New Engineering Challenges

Higher speed brings higher requirements.

1. Increased Power Consumption

A 144Hz display requires:

• Faster pixel scanning
• Higher data transmission speed
• More frequent voltage switching

The driver IC works harder, increasing power consumption.

2. More Heat Generation

Additional energy becomes heat.

For consumer devices, this affects battery life.

For industrial equipment, thermal stability becomes even more important.

Industrial displays often need:

• Long operating hours
• Wide temperature capability
• Stable brightness output

DINGTouch designs solutions considering:

• Driver IC temperature
• Backlight power
• Panel structure
• Thermal management

6. Refresh Rate Is Not the Only Factor for Industrial Touch Displays

A high refresh rate does not automatically mean a better display.

Industrial applications require a balance between:

Response Time

Fast refresh requires fast pixel switching.

Brightness

For outdoor environments:

A 1000nit 60Hz display may perform better than a low-brightness 144Hz display.

Touch Response

A touchscreen system also depends on:

• Touch sampling rate
• Touch controller performance
• Firmware optimization

For industrial HMI systems:

Fast display response + fast touch feedback = better user experience.

Reliability

Industrial customers also care about:

• Operating temperature
• EMI resistance
• Optical bonding
• Glove touch capability
• Long lifetime

7. DINGTouch High Performance Touch Display Solutions

DINGTouch provides customized touch display solutions for demanding applications.

Products include:

Industrial TFT LCD Touch Displays

• Various sizes
• High brightness options
• Wide temperature support

PCAP Capacitive Touch Screen

Features:

• Multi-touch support
• Glove operation
• Water resistance
• EMI optimization

TP + LCD Integrated Modules

Including:

• Optical bonding
• Anti-reflection coating
• Anti-glare treatment
• Anti-fingerprint surface

Applications:

• Industrial HMI
• Medical equipment
• Transportation systems
• Smart retail
• Outdoor terminals
• Energy management systems

8. The Future of High Refresh Rate Displays

Display technology continues evolving.

Future trends include:

OLED

Advantages:

• Extremely fast response
• High contrast
• Self-emissive pixels

Mini LED

Advantages:

• Higher brightness
• Better HDR performance
• Longer lifetime

Advanced LCD Technologies

Including:

• Faster liquid crystal materials
• Better driver algorithms
• Lower power consumption

The future of high refresh rate displays is not simply about higher Hz numbers.

It is about achieving:

Faster response + Lower power + Higher reliability

Conclusion

The evolution from 60Hz to 144Hz represents a major breakthrough in display engineering.

Behind every smooth image is a combination of:

• Advanced liquid crystal materials
• High-speed driver IC
• Intelligent algorithms
• Thermal optimization

For industrial touch displays, the goal is not only to achieve higher refresh rates, but to deliver reliable performance in real-world environments.

With years of experience in customized touch display solutions, DINGTouch continues to develop industrial-grade display technologies that combine speed, durability, and intelligent interaction.

DINGTouch — Your Reliable Touch Display Solution Partner.
