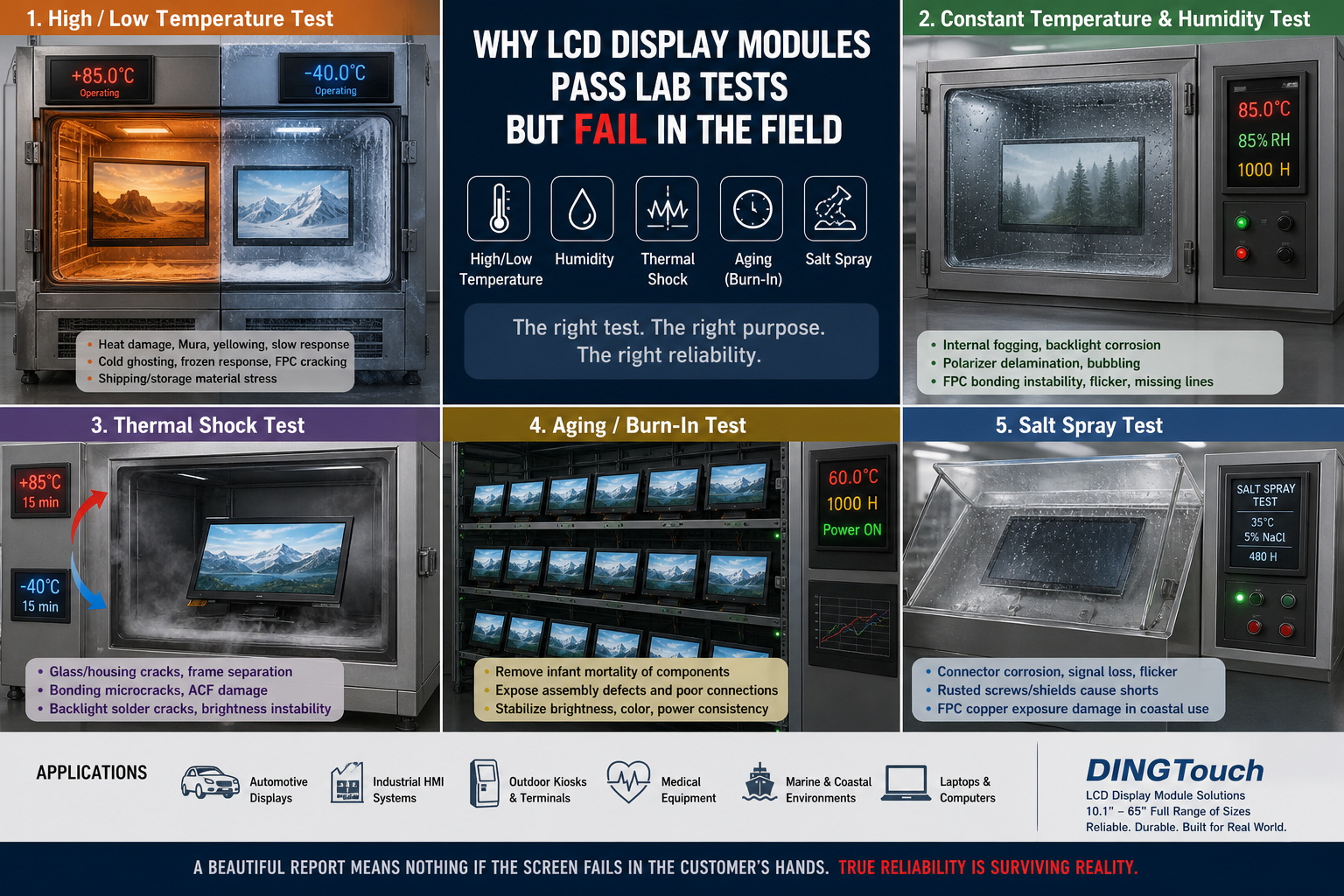

Why LCD Display Modules Pass Lab Tests but Fail in the Field: What High/Low Temp, Humidity, Thermal Shock, Aging & Salt Spray Really Solve

Green Reports, Red Flags in Real Life

Many LCD display modules leave the factory with “all-pass” reliability reports—yet still fail once deployed in the real world.

A screen works perfectly during pilot runs, then ghosts in sub-zero winters. Another fogs internally during humid rainy seasons. A third turns yellow and glitches after months of desert heat exposure.

So what went wrong?

Usually, the problem is not that testing was skipped—it’s that the wrong test was chosen, or the failure mechanism behind the field issue was never understood.

Too many companies still run environmental tests because:

The customer asked for it
Auditors require it
Competitors do it

But reliability testing should never be box-ticking. It should answer one question:

What is most likely to kill this LCD module in the real world?

In this guide, we break down the five most important LCD reliability tests in plain English—and explain what display problems each one is designed to prevent.

1. High / Low Temperature Testing

Can the LCD Still Perform in Extreme Heat or Freezing Cold?

High/low temperature testing places the LCD module in hot or cold environments to evaluate:

Display functionality
Response speed
Material stability
Mechanical deformation

There are two common conditions:

Operating Test

The module is powered on during exposure to verify active performance.

Storage Test

The module is powered off to check whether materials degrade during transport or warehousing.

What Problems Does It Solve?

1. Heat Damage to LCD Fluid and Backlight

High temperatures can cause:

Uneven cell gap (Mura defects)
Yellowing image quality
Slow or unstable response
Light guide plate warping
Bright spots / shadow areas

2. Cold Damage to Liquid Crystal and FPC

Low temperatures may cause:

Severe motion ghosting
Poor contrast
Frozen response times
Brittle FPC cables that crack during flexing

3. Hidden Damage During Shipping & Storage

Containers, warehouses, and cargo exposure often exceed usage temperatures.

This can lead to:

Polarizer shrinkage
Adhesive frame deformation
Internal stress before installation even begins

Critical Applications

Automotive displays
Outdoor charging stations
Industrial HMI systems
Laptops sold to cold or desert markets

2. Constant Temperature & Humidity Testing

Can Moisture Enter the Display and Cause Slow Internal Failure?

Many assume this is just “hot temperature plus humidity.” It is not.

This test evaluates whether water vapor slowly penetrates the module and damages optics, electronics, or bonding interfaces over time.

While temperature tests focus on extremes, humidity testing focuses on long-term environmental aging.

What Problems Does It Solve?

1. Internal Fogging & Backlight Corrosion

Moisture can cause:

White haze in light guide plates
Wrinkled optical films
Corroded IC pins
Missing lines or black screens

2. Polarizer Delamination

Absorbed moisture may create:

Bubbling edges
Layer separation
Optical distortion

3. FPC Bonding Instability

ACF (anisotropic conductive film) can absorb moisture and raise contact resistance, causing:

Flickering image
Missing rows/columns
Intermittent failures that are hard to diagnose

Critical Applications

Smart home panels
Outdoor kiosks
Automotive electronics
Medical monitors
Coastal deployments

3. Thermal Shock Testing

Can Different Materials Survive Sudden Temperature Swings?

Thermal shock is often confused with temperature cycling.

They are not the same.

Temperature cycling = gradual change
Thermal shock = rapid hot-to-cold transitions

This reveals failures caused by different expansion rates between glass, metal, plastic, adhesive, and FPC materials.

What Problems Does It Solve?

1. Glass / Housing Cracks

Repeated stress can create:

Frame separation
LCD cell distortion
Permanent image retention
Structural Mura defects

2. Bonding Microcracks

Especially common in automotive displays:

ACF particle damage
Intermittent flicker
Missing display lines

3. Backlight Structural Failure

Sudden stress may lead to:

LED solder cracks
Loose guide plate fixation
Brightness instability
Complete backlight loss

Critical Applications

Vehicle displays
Outdoor telecom systems
Rugged industrial equipment

4. Aging / Burn-In Testing

Can Early-Life Failures Be Removed Before Shipment?

Aging tests run LCD modules continuously under powered conditions to expose products that fail shortly after installation.

This is one of the most cost-effective quality screens for mass production.

What Problems Does It Solve?

1. Infant Mortality of Components

Weak parts fail early, such as:

Driver ICs
LED backlights
Power circuits

2. Assembly Defects

Continuous heat buildup exposes:

Cold solder joints
Loose connectors
Poor FPC bonding

3. Parameter Drift

Burn-in stabilizes:

Brightness
Color temperature
Touch sensitivity
Power consistency

Critical Applications

Laptop displays
Industrial monitors
Medical displays
Automotive modules
Large-volume shipments

5. Salt Spray Testing

Will Connectors and Metal Parts Corrode in Harsh Environments?

Salt spray testing accelerates corrosion on metal surfaces and interfaces.

It does not directly equal service life.

Claims like “500 hours = 5 years outdoors” are misleading.

Instead, the purpose is to quickly expose weak plating, poor sealing, and corrosion-prone structures.

What Problems Does It Solve?

1. Connector Corrosion

Can cause:

Higher resistance
Signal loss
Flicker
No display output

2. Rusted Screws / Shields

Corrosion debris may fall inside and short electronics.

3. FPC Copper Exposure Damage

Particularly common in coastal environments.

Critical Applications

Marine equipment
Outdoor charging stations
Coastal industrial systems
Telecom base stations

How to Combine These Tests Correctly

During R&D Stage

Use:

High/Low Temperature
Humidity
Thermal Shock

Goal: expose design weaknesses early.

During Pilot Production

Add:

Aging tests
Salt spray (if outdoor/coastal project)

Goal: verify manufacturing consistency.

During Mass Production

Use fast-screening methods:

Aging
Spot high/low temp sampling

Goal: catch process drift quickly.

Quick Selection Guide

If You Fear…

Freezing, overheating, ghosting

➡ Use High / Low Temp

Fogging, moisture, bubbling

➡ Use Humidity

Sudden climate changes, cracking

➡ Use Thermal Shock

Early failures, unstable quality

➡ Use Aging

Rust, connector corrosion

➡ Use Salt Spray

The Real Question Most Buyers Should Ask

Don’t ask:

“Which standards should I run?”

Ask:

“How is this LCD most likely to fail in my real application?”

That single question saves more money than any test report.

DINGTouch LCD Display Module Solutions

At DINGTouch, we design and manufacture LCD display modules from 10.1” to 65”, including:0.96/1.5/2.4/3.5/4.3/5/6/7/8/9 /10.1 / 10.8 / 11.6 / 13.3 / 13.6 / 14 / 15 / 15.6 / 18.5 / 21.5 / 22 / 23.8 / 27 / 31.5/32/43/55/65 inch sizes

Applications include:

Computers
Laptops
Industrial control systems
Automotive electronics
Medical equipment
Smart terminals

Final Thought

A beautiful report means nothing if the screen fails in the customer’s hands.

True reliability is not passing tests.

It is surviving reality.

If you're unsure which tests your LCD module actually needs, tell us your environment, use case, and deployment region—and we’ll help identify the right failure risks before they become expensive returns.
