DINGTouch 10.1-Inch 2000 Nits High-Brightness TFT LCD Display for UAV Controllers and Outdoor Monitoring Systems

DINGTouch 10.1-Inch 2000 Nits High-Brightness TFT LCD Display for UAV Controllers and Outdoor Monitoring Systems

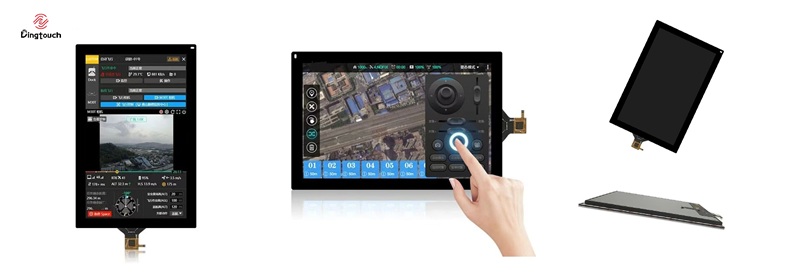

Sunlight Readable 1200×1920 IPS Display Designed for Professional Outdoor Applications

As intelligent devices continue to expand into outdoor and industrial environments, display visibility under direct sunlight has become a critical requirement. DINGTouch introduces its 10.1-inch High-Brightness TFT LCD Display, specifically engineered for UAV ground control stations, unmanned vehicle controllers, portable monitoring equipment, and outdoor industrial applications.

Featuring an ultra-high brightness of 2000 cd/m², a high-resolution 1200 × 1920 display, and IPS full viewing angle technology, this display delivers crystal-clear images and exceptional readability even under strong sunlight.

Designed, developed, and manufactured by DINGTouch, this display combines outstanding optical performance, industrial-grade reliability, and extensive customization capabilities to meet the needs of professional equipment manufacturers worldwide.

Exceptional Visual Performance for Outdoor Environments

2000 Nits Ultra-High Brightness

Traditional displays often become difficult to read in bright outdoor conditions. The DINGTouch 10.1-inch display incorporates a powerful high-brightness backlight system delivering up to 2000 cd/m².

Key Benefits

• Excellent sunlight readability
• Enhanced outdoor visibility
• Reduced reflection impact
• Improved operational efficiency
• Suitable for all-weather applications

Whether deployed in open fields, construction sites, airports, or emergency response environments, operators can clearly view critical information without shading the screen.

High Resolution 1200 × 1920 Display

The display features a 1200 × 1920 pixel resolution in a 9:16 portrait format, providing sharp image quality and detailed visual presentation.

Advantages include:

• High-definition graphics rendering
• Precise data visualization
• Enhanced map and navigation display
• Improved monitoring accuracy
• Clear text and interface elements

This makes it ideal for professional drone control systems and advanced monitoring applications.

IPS Full Viewing Angle Technology

The integrated IPS panel provides:

• 178° wide viewing angles
• Consistent color reproduction
• Superior image stability
• Reduced color shifting
• Enhanced outdoor readability

Operators can maintain clear visibility from virtually any angle, improving usability in dynamic working environments.

Designed for Professional UAV and UGV Control Systems

Optimized for Drone Remote Controllers

Modern UAV systems require reliable visual feedback for safe and efficient operation.

DINGTouch 10.1-inch display is ideal for:

• Drone flight monitoring
• FPV viewing systems
• Mission planning interfaces
• Mapping and surveying equipment
• Agricultural drone control systems
• Public safety UAV platforms

The portrait-oriented display format provides ample vertical viewing space for flight telemetry, video feeds, and mission-critical data.

Unmanned Ground Vehicle (UGV) Applications

The display is equally suitable for:

• Robotic vehicle controllers
• Autonomous mobile platforms
• Security patrol systems
• Inspection robots
• Industrial automation equipment

Its high brightness and rugged performance ensure reliable operation in outdoor and industrial settings.

Wide Temperature Reliability

Industrial applications demand dependable operation across varying environmental conditions.

Operating Temperature

-10°C to +60°C

The display maintains stable image quality and performance across a wide operating temperature range, making it suitable for:

• Outdoor equipment
• Industrial machinery
• Mobile control terminals
• Transportation systems
• Energy storage equipment

Custom touchscreen and Display Solutions

As a professional touchscreen and display manufacturer, DINGTouch offers comprehensive customization services tailored to customer requirements.

Capacitive touchscreen Integration

Optional projected capacitive (PCAP) touchscreen solutions include:

• Multi-touch functionality
• Glove touch support
• Waterproof touch capability
• Anti-interference optimization
• Optical bonding integration

Driver Board Customization

DINGTouch can develop customized controller boards supporting various interfaces:

• HDMI
• LVDS
• MIPI
• RGB
• eDP
• USB Touch
• I²C Touch

Enabling seamless integration into customer systems.

Cover Glass and Mechanical Design

Customization options include:

• Cover lens thickness
• AG (Anti-Glare) treatment
• AR (Anti-Reflection) coating
• AF (Anti-Fingerprint) coating
• Custom silk printing
• Logo printing
• Waterproof structures
• IK impact-resistant designs

Quality Assurance You Can Trust

DINGTouch operates a complete in-house development and manufacturing system.

Why Choose DINGTouch?

✔ Independent R&D and engineering team

✔ Strict production quality control

✔ 99.7% shipment yield rate

✔ Comprehensive technical support

✔ Fast customization capabilities

✔ Long-term supply stability

✔ Professional after-sales service

Every display undergoes rigorous testing to ensure consistent quality and reliability before shipment.

Typical Applications

The DINGTouch 10.1-inch high-brightness display is widely used in:

UAV Remote Controllers

Real-time flight monitoring and mission control.

UGV Control Systems

Autonomous vehicle operation and monitoring.

Portable Field Monitors

Outdoor inspection and surveillance applications.

Medical Equipment

Mobile diagnostic and monitoring devices.

Industrial HMI Systems

Human-machine interfaces for industrial automation.

Outdoor Information Displays

Sunlight-readable kiosks and portable terminals.

Energy Storage and Power Systems

Monitoring and control displays for renewable energy applications.

Technical Specifications

Display Size: 10.1 Inch

Resolution: 1200 × 1920

Aspect Ratio: 9:16

Panel Type: TFT LCD IPS

Brightness: 2000 cd/m²

Viewing Angle: 178° Full Viewing Angle

Operating Temperature: -10°C to +60°C

Touch Option: PCAP Capacitive touchscreen

Interfaces: Customizable

Customization: Touch Panel, Driver Board, FPC, Cover Glass

Conclusion

The DINGTouch 10.1-Inch 2000-Nit High-Brightness TFT LCD Display combines outstanding outdoor visibility, IPS full-view technology, high-resolution image quality, and extensive customization capabilities. Designed specifically for UAV controllers, unmanned systems, industrial monitoring, and professional outdoor equipment, it delivers reliable performance in demanding environments.

With comprehensive engineering support, flexible customization options, and industry-leading quality control, DINGTouch continues to provide innovative display solutions that help customers build smarter, more reliable products.
