Small-Size Outdoor High-Brightness LCD Screen: The Core Light Powering Smart Terminals

Small-Size Outdoor High-Brightness LCD Screen: The Core Light Powering Smart Terminals

As smart cities, IoT terminals, and portable industrial devices continue to evolve, display technologies are facing new challenges: “smaller, brighter, and stronger.” Small-size outdoor high-brightness LCD screen are emerging as a vital display solution for demanding environments, becoming the essential core of the next generation of smart devices.

This article dives into the brilliance of these displays from multiple dimensions—technical principles, performance advantages, application value, and industry trends.

1. What Are Small-Size Outdoor High-Brightness LCD Screen?

Small-size outdoor high-brightness LCD screen refer to LCD displays that are 10.1 inches or smaller, specially designed for outdoor use and capable of high-brightness performance (≥1000 nits). These screens typically use TFT-LCD technology, combined with high-brightness LED backlight modules, anti-reflective treatments, and high-contrast LCD panels to ensure visibility and responsiveness in bright light conditions.

To meet mobile needs, they are also designed to be lightweight and slim, with wide temperature operating ranges, integrated touch functions, and low power consumption—making them ideal for handheld outdoor terminals, smart hardware, and industrial control systems.

2. In-Depth Technical Features

1. Extreme Brightness – Readable in Sunlight

Using high-brightness backlight modules (such as direct-lit or dual-edge LED), enhanced polarizers, and AR coating, these screens can achieve brightness levels from 1500 to 4000 nits. Even under direct sunlight, content remains vivid and visible, ensuring effective interaction and information delivery.

2. Wide Temperature Tolerance – Strong Environmental Adaptability

Made with industrial-grade LCD materials and control solutions, they support wide temperature ranges from -20°C to +70°C or beyond, functioning reliably in extreme cold, heat, humidity, or high altitudes—ideal for outdoor and specialized industrial use.

3. Waterproof & Dustproof – Rugged and Durable

Utilizing G+G structure, optical bonding, and full lamination, combined with IP65/IP67 protection, these screens offer scratch resistance, rain protection, and dust resistance. Some models also feature UV aging resistance and salt-spray corrosion protection, making them suitable for coastal, industrial, and mountainous environments.

4. Sunlight Readability + Capacitive Touch

Featuring full-laminated projected capacitive touch (PCAP) technology, they support multi-touch, glove, and wet-hand operation. Touch ICs such as GT911 and ILI2510 deliver high sensitivity and strong anti-interference performance, suitable for complex electromagnetic environments.

5. Power Efficient – Extend Device Battery Life

Optimized backlight driving circuits and PWM dimming strategies ensure high brightness with minimal power consumption—ideal for battery-powered portable devices.

3. In-Depth Industry Applications

1. Handheld Terminal Devices

• Handheld Scanners: Used in logistics, warehousing, and express delivery for order display and scanning—requires high brightness and outdoor readability.

• Rangefinders/Thermal Imagers: Used in construction, forest patrol, and energy inspection for real-time parameter display in varied outdoor conditions.

• Emergency Communication Terminals: Outdoor wireless devices for disaster response or police communication—must be shock-resistant and readable in all conditions.

2. New Energy Charging & Smart Piles

• EV Charging Stations: Display charging status and fees clearly even under sunlight and rain, ensuring 24/7 visibility.

• Shared E-Bike Station Screens: Offer user-friendly operation and status information.

3. Smart City & Public Services

• Smart Trash Sorting Stations: Provide real-time feedback and interactive interfaces.

• City Info Guidance Screens: Small displays at bus stops or parking terminals that require all-weather operation and low maintenance.

4. Modern Agriculture & Forestry Monitoring

• Agricultural IoT Terminals: Display real-time temperature, humidity, pressure, and light data for smart farming.

• Forest Fire Prevention Equipment: Integrate touch and LCD for outdoor deployment, showing alerts and patrol status.

4. Development Trends & Future Outlook

• Higher Brightness, Lower Power: Moving toward Mini-LED backlight solutions, enabling finer brightness control and energy savings.

• Sensor Integration: LCD modules will increasingly integrate sensors, voice recognition, and cameras, becoming interactive hubs.

• Mature Optical Bonding & Anti-Reflective Tech: OCA or optical resin full bonding will become standard, improving visibility and optical clarity.

• Flexibility & Portability: Future small-size high-brightness screens may adopt flexible substrates for wearables and ultra-slim smart devices.

5. Choose DINGTOUCH for Premium Small-Size Outdoor LCD Screen

As a dedicated touch display solution provider, DINGTOUCH offers a full range (2.4"–10.4") of high-brightness LCD solutions with the following advantages:

• Custom Brightness Range: Options from 1000 to 4000 nits.

• Multi-Interface Compatibility: Support for RGB, MIPI, LVDS, SPI, and more.

• Touch Integration: Capacitive/resistive options with full bonding support.

• Structural Optimization: IP-rated designs, reinforced glass, anti-explosion films.

• Stable Bulk Supply: Industrial-grade reliability with long-term product support.

Conclusion: Small Screens, Big Intelligence

Though small in size, small-size outdoor high-brightness LCD screen carry the heavy responsibility of delivering seamless human-machine interaction in challenging environments. In an era of increasingly prevalent smart terminals, their outstanding brightness, durability, and interaction capabilities make them an essential driver of portable smart device evolution.
Choosing the right screen empowers your device with broader outdoor application potential.

DINGTouch :Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.
Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

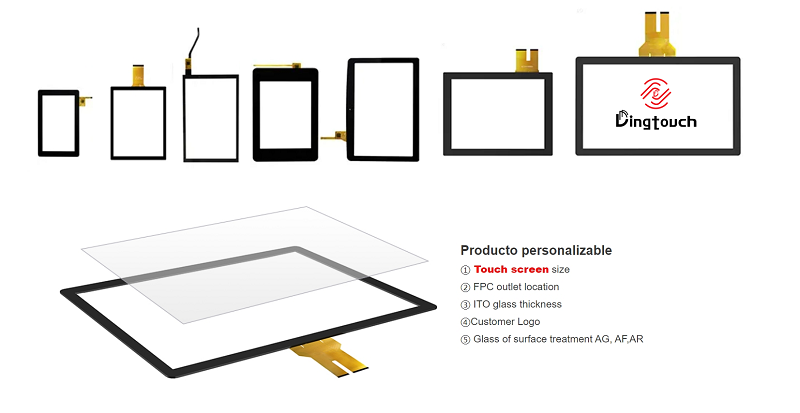

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

Dingtouch Industrial Capacitive Touch Screen Manufacturer

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs.
