PCAP Touchscreen Integration Guide: Critical Installation Tips for Reliable Performance

PCAP touchscreen Integration Guide: Critical Installation Tips for Reliable Performance

Why Proper PCAP Integration Matters

In industrial, medical, and commercial display systems, integrating a capacitive touchscreen is far more than a simple mechanical assembly task—it directly impacts system stability, touch accuracy, and product lifespan.

Projected Capacitive (PCAP) touch panels are highly sensitive electronic components. Improper installation can easily lead to false touches, electromagnetic interference (EMI), or slow response times.

Based on DINGTouch engineering experience, here are the essential best practices to ensure optimal PCAP performance in real-world applications.

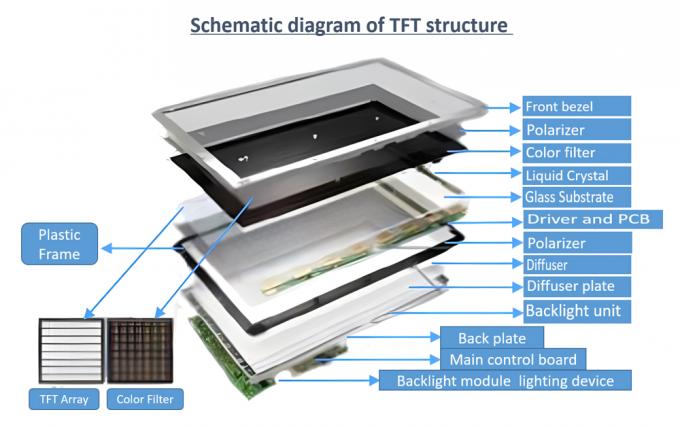

1. Avoid Direct Contact with Metal Components

PCAP touch panels are extremely sensitive to electromagnetic interference, especially from nearby conductive materials.

Installation Guidelines

• Prevent direct contact between the touch panel circuitry and metal parts
• Maintain at least 1.5 mm gap between the LCD metal frame and the touch panel
• Increase spacing for larger screen sizes

Risks if Ignored

• Touch drift
• Ghost touch (false triggering)
• Unstable responsiveness

2. Keep the Backside of the Touch Panel Clean

The backside of a PCAP panel contains delicate conductive layers that are highly vulnerable to contamination.

Best Practices

• Avoid direct hand contact
• Prevent dust, oil, and fingerprints
• Clean only when necessary

Recommended Cleaning Method

• ≥99% anhydrous ethanol
• Lint-free cloth

Avoid

• Acidic or alkaline cleaners (including common LCD cleaners)

Potential Issues

• Oxidation
• Corrosion
• Reduced long-term reliability

3. Ensure Proper System Grounding

Good grounding is essential for minimizing electrical noise and maintaining stable touch performance.

Requirements

All components must share a common ground, including:

• LCD metal frame
• Metal enclosure
• Mainboard
• Power supply
• Touch controller

Use a three-prong grounded power connection whenever possible.

Benefits

• Reduced electrical noise
• Improved touch accuracy
• Elimination of latency and signal errors

4. Optimize Touch Controller Placement

The placement of the touch controller plays a critical role in preventing interference.

Avoid Positioning Near

• LCD logic board
• Mainboard
• High-frequency components
• Power modules or converters

If Avoidance Is Not Possible

Use EMI shielding materials:

• Copper foil
• Aluminum foil
• Conductive fabric
• Grounded insulating tape

Result

• Reduced interference
• Stable signal transmission

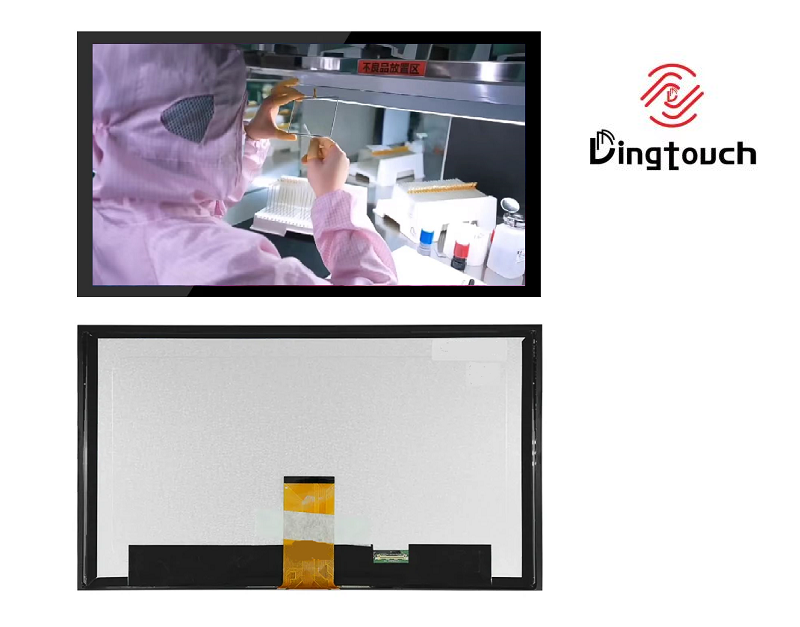

5. Prevent FPC Signal Interference

Improper routing of Flexible Printed Circuits (FPC) can cause signal interference.

Guidelines

• Avoid overlapping FPC cables between LCD and touch panel

If Overlap Is Unavoidable

• Insert an aluminum shielding layer between cables

Prevention

• Signal crosstalk
• Touch malfunction
• Display noise

Final Thoughts: Reliable PCAP Integration = Long-Term Performance

A well-executed PCAP integration process is critical for achieving high-performance, durable touch systems—especially in demanding environments such as:

• Industrial automation
• Medical equipment
• Commercial kiosks

By following these guidelines, manufacturers can:

• Minimize interference issues
• Improve touch accuracy
• Extend product lifespan
