OCA Optical Bonding for Industrial HMI/IPC: Why It’s Non-Negotiable for Harsh Factory Environments

OCA Optical Bonding for Industrial HMI/IPC: Why It’s Non-Negotiable for Harsh Factory Environments

● 1.The Fundamental Flaw of Air Bonding in Industrial Applications

>> 1.1 Catastrophic Optical Degradation in High-Light Environments

>> 1.2 Dust and Moisture Ingress

>> 1.3 Poor Mechanical Durability

>> 1.4 Parallax Error: A Hidden Threat to Precision Control

● 2. Technical Advantages of OCA Optical Bonding for Industrial HMIs

>> 2.1 Superior Optical Performance for Sunlight Readability

>> 2.2 Enhanced Environmental Protection

>> 2.3 Exceptional Mechanical Strength and Vibration Resistance

>> 2.4 Improved Touch Accuracy and Responsiveness

>> 2.5 Enhanced UV Resistance and Long-Term Stability

● 3. OCA vs LOCA: Why OCA is Better for Industrial Applications

>> 3.1 UV Yellowing and Long-Term Stability

>> 3.2 Process Variability and Defect Rates

>> 3.3 Thermal Stability and Temperature Range

>> 3.4 Repairability and Rework

● 4. Common OCA Bonding Pitfalls and How SZDINGTouch Avoids Them

>> 4.1 Bubble Formation

>> 4.2 Delamination

>> 4.3 Yellowing

>> 4.4 Mura and Uneven Brightness

● 5. SZDINGTouch 7-Inch Fully Bonded touchscreen: Built for Industrial Performance

>> Key Specifications

>> Every unit undergoes rigorous quality testing, including

● 6. Partner with SZDINGTouch for Your Industrial Display Needs

>> Our Unique Advantages for Industrial HMI Manufacturers

1.3 Poor Mechanical Durability

Air bonding only adheres the edges of the cover glass, leaving the entire center area unsupported. This makes the display highly susceptible to damage from vibration, shock, and impact. In industrial environments with constant machine vibration, the air gap causes the cover glass to flex repeatedly, leading to:

● Delamination of the touch sensor from the cover glass

● Cracked LCD panels from even minor impacts

● Touch drift and dead zones caused by loose connections

● Complete display failure from fatigue failure of the edge adhesive

Our lab testing shows that air-bonded displays typically fail after just 200 hours of vibration testing per IEC 60068-2-6, compared to 1000+ hours for OCA-bonded displays.

1.4 Parallax Error: A Hidden Threat to Precision Control

The air gap in air-bonded displays causes parallax error, where the touch point appears offset from the actual display point. This reduces touch accuracy to ±2mm, which is unacceptable for precision industrial control applications that require operators to interact with small buttons or fine graphical elements.

Parallax error is especially problematic for applications like:

● Precision CNC machine control

● Laboratory testing instruments

● Medical device interfaces

● Robotics control systems

Even a small error in touch input can lead to incorrect process parameters, damaged equipment, or compromised product quality.

2. Technical Advantages of OCA Optical Bonding for Industrial HMI

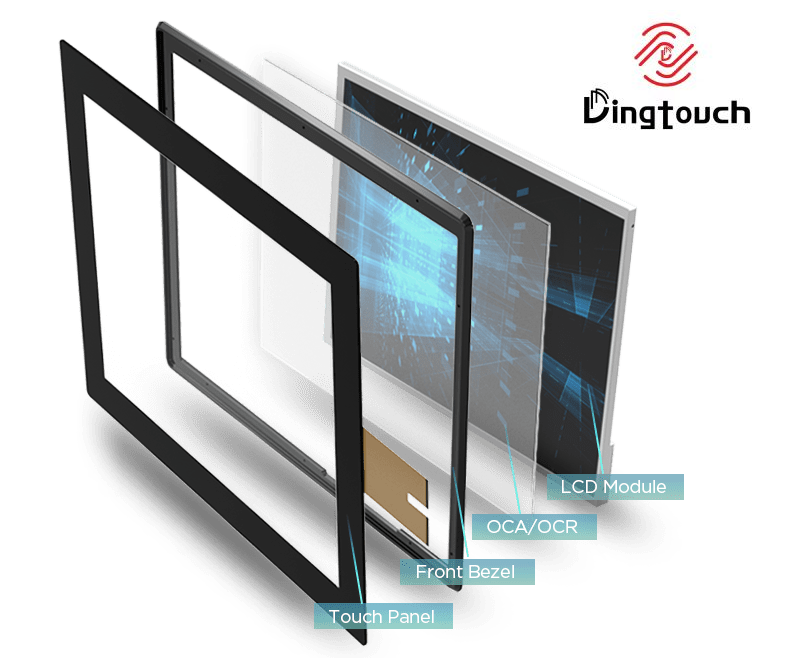

OCA optical bonding eliminates the air gap entirely, creating a single, monolithic display assembly that addresses all of air bonding’s weaknesses. By using a pre-cut, solid-state optical clear adhesive film with a refractive index nearly identical to glass (≈1.5), OCA bonding transforms the display from a collection of separate components into a single, integrated system.

2.1 Superior Optical Performance for Sunlight Readability

The most immediate benefit of OCA optical bonding is dramatically improved optical performance. By matching the refractive index of glass, OCA eliminates almost all internal reflection, increasing total light transmittance to 88-93% and reducing surface reflectivity to just 4-6%.

This translates to a 4x improvement in contrast ratio under direct sunlight, making the display clearly readable even in the brightest factory environments. Our 7-inch fully bonded touchscreen achieves 92% total light transmittance and 800:1 contrast ratio, with optional anti-glare (AG) coating that further reduces surface reflectivity to less than 2% for even better performance in high-light conditions.

For industrial applications, this means:

● Operators can read critical process data at a glance, without squinting or shading the display

● Reduced eye strain and fatigue for workers who spend hours interacting with HMI panels

● Improved safety by ensuring that warning messages and alarm indicators are clearly visible

● No need for expensive high-brightness backlights to compensate for poor optical performance

2.2 Enhanced Environmental Protection

By eliminating the air gap, OCA optical bonding creates a continuous, sealed barrier against dust and moisture. This allows us to achieve IP65 and even IP67 protection ratings, making the display resistant to:

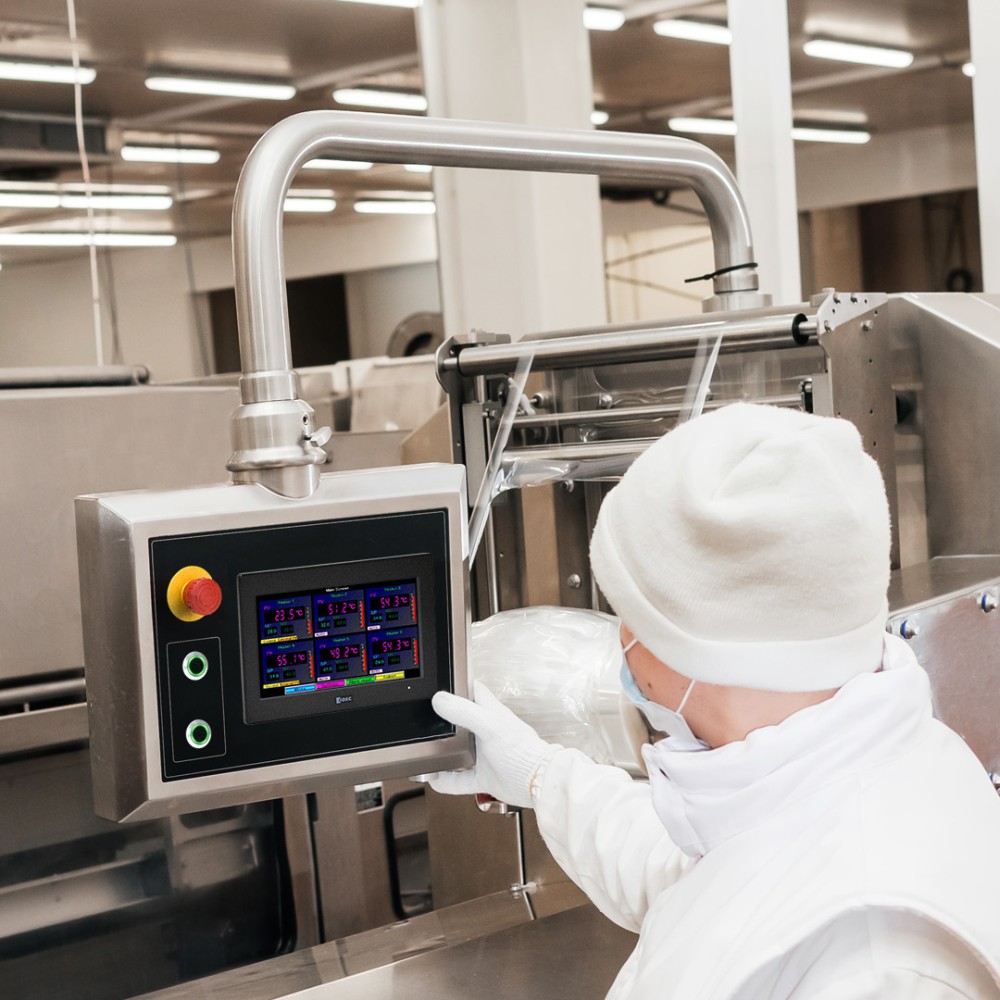

● High-pressure water jets (for washdown applications in food and beverage manufacturing)

● Fine dust and particulate matter

● Humidity and condensation

● Chemical splashes and spills

The solid bond also prevents condensation from forming between the layers, a common problem in temperature-fluctuating industrial environments where displays are exposed to rapid changes in temperature. This is especially important for outdoor industrial control stations and facilities with variable climate control.

2.3 Exceptional Mechanical Strength and Vibration Resistance

The monolithic structure of OCA-bonded display significantly increases mechanical strength. The OCA film acts as a shock absorber, distributing impact energy across the entire display surface and reducing the risk of cracked LCD panels.

Our lab testing shows that OCA-bonded display can withstand:

● 10-2000Hz vibration testing per IEC 60068-2-6 (10x longer than air-bonded displays)

● 1.5m drop testing onto concrete

● 1000 hours of temperature cycling from -30°C to 85°C

● 500 hours of salt spray testing (for coastal and marine applications)

This exceptional durability makes OCA-bonded displays ideal for heavy industrial applications where vibration and shock are constant concerns, such as construction equipment, mining machinery, and heavy-duty industrial PC.

2.4 Improved Touch Accuracy and Responsiveness
OCA optical bonding eliminates parallax error entirely, improving touch accuracy to ±0.5mm. This allows for smaller buttons, more precise control, and faster operator response times—critical for high-speed manufacturing processes.

The solid bond also improves touch sensitivity, allowing the display to respond reliably even when the operator is wearing thick industrial gloves. This is a major advantage in manufacturing environments where workers are required to wear protective gloves for safety.

Our 7-inch fully bonded touchscreen supports 10-point multi-touch with a response time of less than 10ms, ensuring smooth, lag-free operation even during complex multi-touch gestures.


2.5 Enhanced UV Resistance and Long-Term Stability
When combined with our anti-UV coating technology, OCA optical bonding provides exceptional protection against UV radiation damage. The OCA film itself contains UV stabilizers that prevent yellowing and degradation, while our anti-UV coated cover glass blocks 99.8% of harmful UV rays.

This means that OCA-bonded displays will maintain their optical clarity and performance for 7-10 years, even in environments with high UV exposure, such as factories with skylights or outdoor industrial control stations. In contrast, air-bonded displays typically show significant yellowing and fading within 2-3 years of UV exposure.


3. OCA vs LOCA: Why OCA is Better for Industrial Applications
While LOCA (Liquid Optical Clear Adhesive) bonding also eliminates the air gap, it has several key disadvantages compared to OCA for industrial use:

3.1 UV Yellowing and Long-Term Stability
LOCA resin is significantly more susceptible to UV-induced yellowing over time. Even UV-stabilized LOCA formulations will show noticeable yellowing after 3-5 years of UV exposure, reducing display clarity and contrast. In contrast, high-quality industrial-grade OCA film shows no measurable yellowing after 1000 hours of accelerated UV testing (equivalent to 5 years of outdoor use).


3.2 Process Variability and Defect Rates
LOCA requires precise dispensing and UV curing, making it much more sensitive to process variations than OCA. Even small changes in dispensing volume, curing time, or temperature can lead to defects such as bubbles, uneven curing, or delamination.

For mass production, this means higher defect rates and lower yields. At SZDINGTouch, we achieve a 99.5% yield rate for OCA bonding, compared to 92-95% for LOCA bonding.


3.3 Thermal Stability and Temperature Range
OCA has better thermal stability than LOCA, maintaining its bonding properties over a wider temperature range. Industrial-grade OCA can operate reliably from -40°C to 120°C, while most LOCA formulations are limited to -25°C to 80°C.

This makes OCA the only viable choice for industrial applications that require operation in extreme temperature environments, such as cold storage facilities, steel mills, and outdoor control stations in arctic or desert climates.


3.4 Repairability and Rework
OCA-bonded displays are easier to rework and repair than LOCA-bonded displays. If a component fails, the OCA bond can be carefully separated and the defective component replaced, reducing repair costs. In contrast, LOCA forms a permanent, irreversible bond that makes rework almost impossible—meaning a single component failure requires replacing the entire display assembly.

4.3 Yellowing
As mentioned earlier, low-quality OCA material can yellow over time due to UV exposure. We use only UV-stabilized industrial-grade OCA film that has been tested to show no measurable yellowing after 1000 hours of accelerated UV testing.

4.4 Mura and Uneven Brightness
Mura (uneven brightness) can be caused by uneven pressure during lamination or variations in OCA film thickness. We use precision lamination equipment that applies uniform pressure across the entire display surface, and we source OCA film with tight thickness tolerances (±5μm) to ensure consistent optical performance.

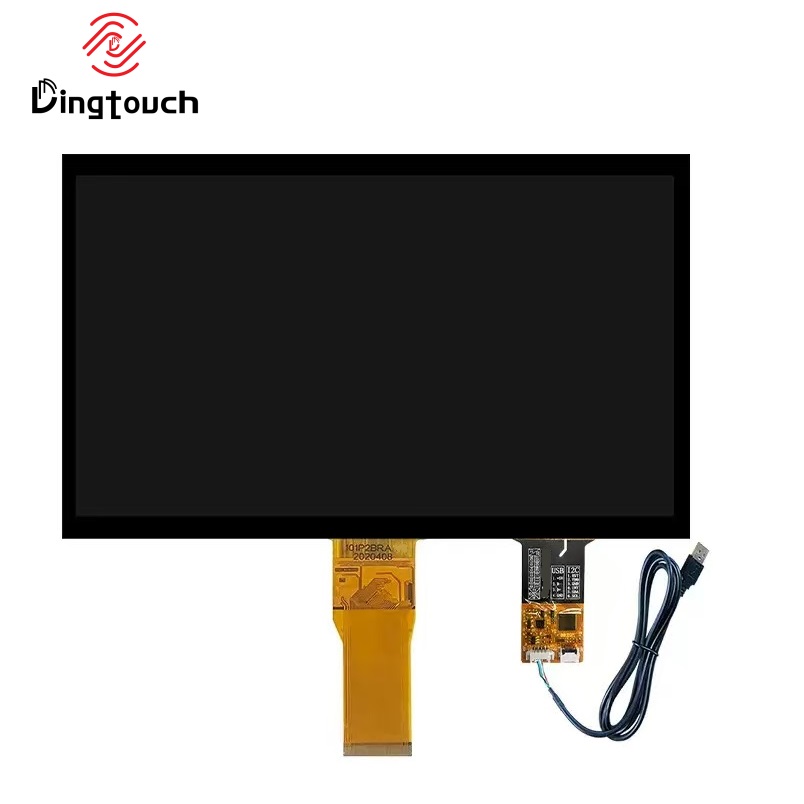

5. SZDINGTouch 7-Inch Fully Bonded touchscreen: Built for Industrial Performance
Our new 7-inch fully bonded touchscreen assembly is engineered to meet the most demanding industrial requirements. It combines premium OCA optical bonding technology with our industry-leading anti-UV and ruggedization features to deliver a display that performs reliably in even the harshest factory environments.

Key Specifications
● 7-inch TFT LCD display with 1024×600 resolution

● Premium industrial-grade OCA optical bonding

● 92% total light transmittance and 800:1 contrast ratio

● Optional anti-glare (AG) and anti-fingerprint (AF) coating

● Optional anti-UV coating with 99.8% UVR blocking rate

● IP65 dust and water resistance

● -20°C ~ 70°C operating temperature range (extendable to -30°C ~ 85°C)

● 10-point capacitive touch with ±0.5mm accuracy

● Compatible with LVDS, MIPI, and RGB interfaces

● Supports glove touch operation


Every unit undergoes rigorous quality testing, including
● Temperature cycling testing (-30°C to 85°C, 100 cycles)

● Vibration testing (10-2000Hz, 10 hours)

● Optical performance verification

● Touch accuracy and responsiveness testing

● UV aging testing (1000 hours)


6. Partner with SZDINGTouch for Your Industrial Display Needs
At SZDINGTouch, we don't just sell touchscreens—we engineer display solutions that solve real industrial problems. Our team of experienced engineers can work with you to design a custom bonded display that meets your exact specifications, from size and interface to environmental protection and surface treatments.

Our Unique Advantages for Industrial HMI Manufacturers
We understand that industrial projects have unique requirements and tight deadlines.

Our Unique Advantages for Industrial HMI Manufacturers:

● 13years of industry expertise: Established in 2013, we have deep experience in designing and manufacturing industrial-grade displays

● No MOQ policy: We offer OCA bonding for prototype quantities as small as 1 unit, so you can test the technology without a large upfront investment

● Fast sample delivery: Samples are delivered in 12-15 days, with ultra-low development fees and free samples available for qualified projects

● Full customization capabilities: We support custom sizes from 2.4" to 32", custom FPC pinouts, custom cover glass shapes and printing, and custom brightness levels from 250 to 2000 nits

● End-to-end engineering support: Our R&D team provides technical assistance at every stage of your project, from initial design through mass production

Large-scale production capacity: Our 6,000 sq.m factory with 10+ precision production lines can deliver up to 750,000 units per month, ensuring on-time delivery for large orders.
