Industrial PCAP Touch Controller IC Selection Guide: How to Choose the Right Capacitive Touch Controller

Industrial PCAP Touch Controller IC Selection Guide: How to Choose the Right Capacitive Touch Controller

A capacitive touch screen is much more than a piece of cover glass placed on top of an LCD display.

Behind every accurate, fast, and reliable touch experience is a critical component — the capacitive touch controller IC.

The touch controller IC is responsible for detecting touch signals, processing noise, recognizing gestures, and communicating with the host processor through interfaces such as I²C, USB, or SPI.

For industrial HMIs, medical devices, outdoor terminals, and self-service kiosks, the performance of the touch controller directly affects the user experience and long-term reliability.

Therefore, selecting the right PCAP (Projected Capacitive) touch controller IC is one of the most important decisions during touch screen design.

This guide explains the key factors engineers should consider when selecting a capacitive touch controller IC, why controller selection should be based on application requirements rather than brand preference, and how experienced engineers evaluate the complete touch solution.

What Is a Capacitive Touch Controller IC?

A capacitive touch controller IC is the processing center of a projected capacitive (PCAP) touch screen system.

The touch sensor detects changes in capacitance caused by a finger or conductive object, while the controller IC processes these signals and converts them into accurate touch coordinates.

The main functions of a touch controller IC include:

• Scanning the touch sensor
• Detecting touch coordinates
• Supporting multi-touch operation
• Filtering electrical noise
• Rejecting false touches
• Recognizing gestures
• Communicating with the host system through I²C, USB, or SPI interfaces

Although different manufacturers use different hardware architectures and firmware algorithms, the goal of every touch controller IC is the same:

To provide accurate and stable touch performance under real-world operating conditions.

How to Choose the Right PCAP Touch Controller IC?

A common question from engineers is:

Which touch controller IC should I choose?

Should it be Microchip?

Goodix?

ILITEK?

FocalTech?

The answer is:

It depends on the application requirements.

Experienced engineers usually do not select a touch controller only based on the manufacturer name.

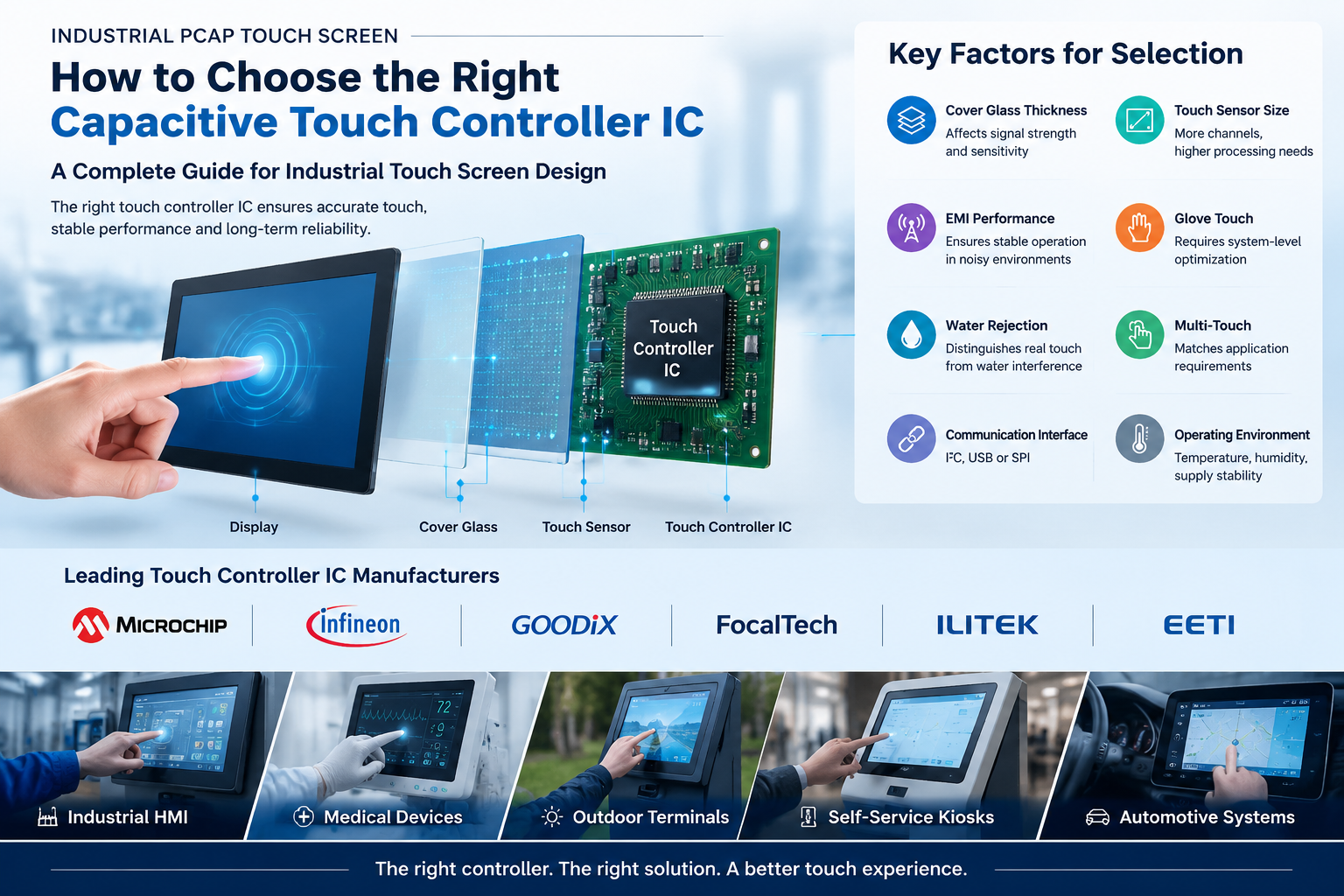

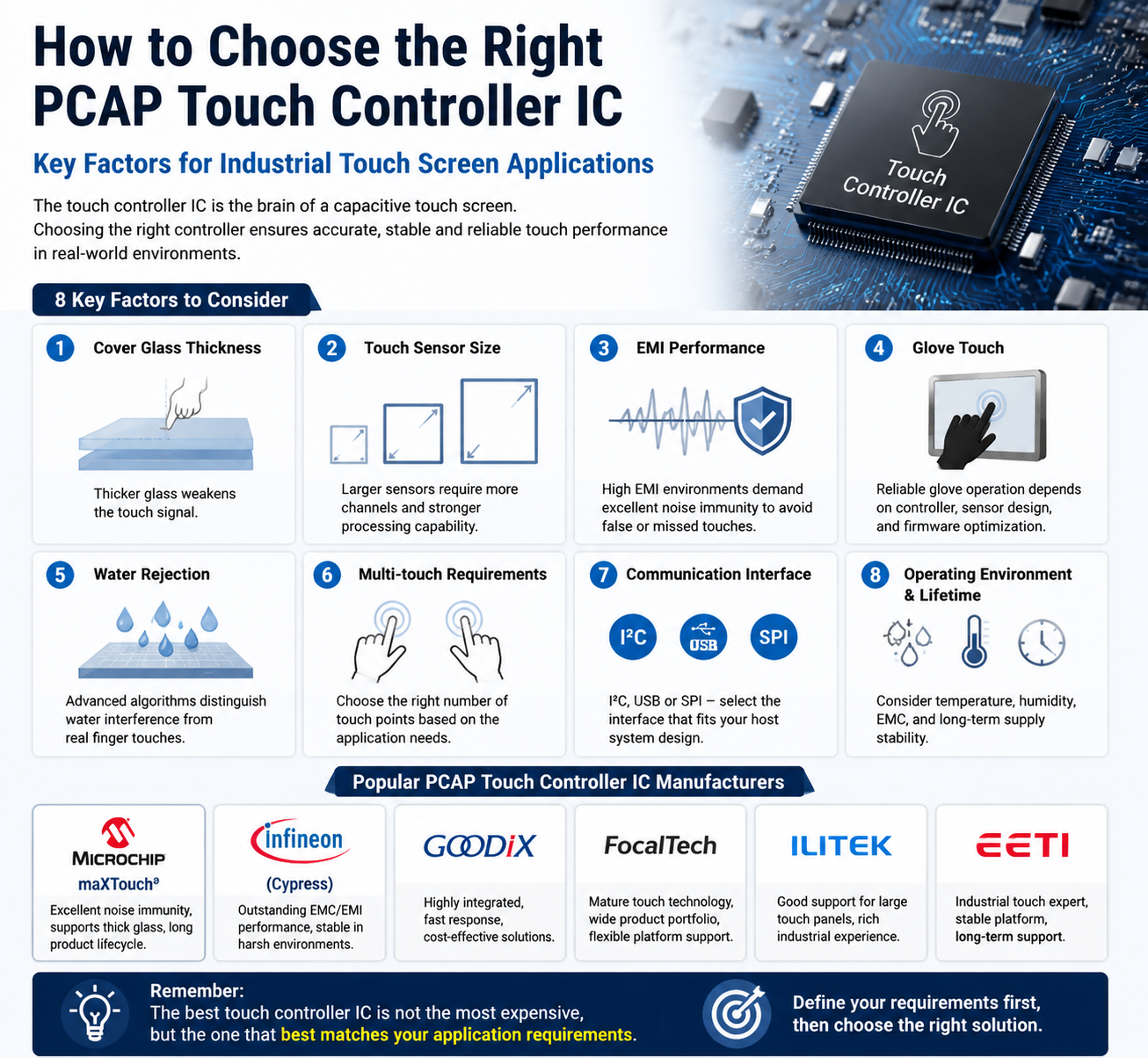

Instead, they first evaluate the project requirements, including:

• Cover glass thickness
• Touch sensor size
• Operating environment
• EMI conditions
• Glove operation requirements
• Water rejection performance
• Communication interface
• Product lifetime requirements

1. Cover Glass Thickness: A Key Factor Affecting Touch Sensitivity

Cover glass thickness is one of the first factors engineers evaluate when selecting a touch controller IC.

As the cover glass becomes thicker, the distance between the finger and the touch sensor increases, which weakens the touch signal.

Typical applications include:

Applications using thick protective glass require touch controllers with:

• Higher signal processing capability
• Better signal-to-noise ratio (SNR)
• Advanced sensitivity adjustment
• Optimized firmware algorithms

A controller designed for a thin consumer device may not perform well in a rugged industrial touch application.

2. Touch Sensor Size: Larger Screens Require More Processing Capability

A larger touch sensor is not simply an enlarged version of a small sensor.

Large PCAP touch panels require:

• More sensing channels
• Faster scanning performance
• Better noise management
• More complex firmware optimization

Engineers need to consider:

• Scan time
• Signal attenuation
• Channel capacity
• Noise performance
• Firmware tuning capability

For example, a controller suitable for a 5-inch touch display may not be the best choice for a 21.5-inch industrial touchscreen.

3. EMI Performance: Critical for Industrial Applications

Industrial environments often contain significant electrical noise generated by:

• Motors
• Switching power supplies
• Inverters
• LCD displays
• High-speed communication systems

A reliable industrial touch controller IC must maintain stable operation under these challenging conditions.

Poor EMI performance can cause:

• False touches
• Missed touches
• Coordinate drifting
• Slow response
• Unstable operation

For industrial applications, noise immunity is often more important than maximum sensitivity.

4. Glove Touch Performance: A Complete System Optimization

Many industrial and medical devices must operate reliably while users wear protective gloves.

However, glove touch performance does not depend only on the touch controller IC.

Engineers must evaluate the complete touch system, including:

• Cover glass thickness
• Touch sensor design
• Controller capability
• Firmware tuning

Reliable glove operation is achieved only when these elements work together.

5. Water Rejection and Wet Touch Performance

Outdoor equipment, marine systems, and public terminals often operate in wet environments.

Rain, water drops, and condensation can interfere with capacitive sensing.

Modern touch controller IC use advanced hardware and firmware algorithms to distinguish between:

• Real finger touches
• Water interference
• Accidental contact

This improves touch reliability in outdoor and harsh environments.

6. Multi-Touch Requirements

Different applications require different levels of multi-touch capability.

Examples:

Industrial HMI

Usually requires:

• 2–5 touch points
• High stability
• Reliable operation

Commercial Touch Displays

May require:

• 10-point multi-touch
• Smooth gesture control

Medical Equipment

Usually prioritizes:

• Accuracy
• Reliability
• Easy operation

More touch points do not always mean better user experience.

The controller should match the actual application requirements.

7. Communication Interface Compatibility

Most capacitive touch controller ICs communicate with the host processor through:

• I²C
• USB
• SPI

The interface affects:

• Hardware design
• Software development
• System compatibility

However, the interface alone usually does not determine the best controller choice.

8. Operating Environment and Product Lifetime

For industrial products expected to operate for many years, engineers should also consider:

• Operating temperature
• Humidity
• EMC requirements
• Supply stability
• Long-term availability

A controller with stable supply and long lifecycle support can be just as important as technical performance.

Major Capacitive Touch Controller IC Manufacturers

After defining project requirements, engineers can evaluate suitable controller solutions.

Several manufacturers provide mature PCAP touch controller IC solutions. Each company has different strengths depending on application requirements.

Microchip maXTouch

Microchip maXTouch controller ICs are widely used in industrial, medical, and automotive applications.

Typical advantages:

• Excellent noise immunity
• Support for thick cover glass
• Strong firmware tuning capability
• Long product lifecycle support
• Extensive industrial experience

Common applications:

• Industrial HMIs
• Medical devices
• Factory automation
• Automotive systems

Infineon (Formerly Cypress TrueTouch)

Infineon inherited Cypress TrueTouch technology and has long experience in reliable touch solutions.

Typical advantages:

• Excellent EMC performance
• Stable operation in noisy environments
• Industrial and automotive experience
• Long-term product support

Common applications:

• Industrial equipment
• Transportation systems
• Outdoor terminals

Goodix

Goodix is one of the world's leading capacitive touch controller suppliers.

Its solutions cover consumer electronics and embedded applications.

Typical advantages:

• Wide product portfolio
• High integration
• Fast touch response
• Cost-effective solutions

Common applications:

• Smart devices
• Embedded systems
• Commercial equipment
• Industrial products

FocalTech

FocalTech provides touch controller solutions for smartphones, tablets, industrial displays, and embedded products.

Typical advantages:

• Mature touch technology
• Flexible controller options
• Broad platform support

Common applications:

• Industrial terminals
• Commercial displays
• Embedded systems

ILITEK

ILITEK has extensive experience in industrial touch displays and HMI applications.

Typical advantages:

• Good support for medium and large touch panels
• Industrial application experience
• Flexible firmware optimization
• Stable supply capability

Common applications:

• Industrial touch monitors
• HMI systems
• POS terminals
• Self-service kiosks

EETI

EETI focuses mainly on industrial and commercial touch solutions.

Typical advantages:

• Strong industry experience
• Good sensor compatibility
• Stable platform support
• Long product lifecycle

Common applications:

• Medical equipment
• Industrial automation
• POS systems
• Industrial control devices

Touch Controller IC Selection: Requirements Matter More Than Brands

A common question is:

Which touch controller IC is the best?

The reality is:

There is no single controller that is the best for every application.

A controller that performs well in a medical device may not be the ideal choice for an outdoor kiosk.

A controller designed for commercial displays may not be optimized for battery-powered handheld equipment.

Engineers should compare the controller solution with the actual application requirements.

Why Firmware Optimization Is as Important as the Touch Controller IC

The touch controller IC is only one part of the complete touch solution.

In industrial applications, firmware optimization plays an equally important role.

The same controller IC may provide completely different touch performance depending on:

• Sensor design
• Cover glass thickness
• LCD noise level
• Firmware parameters
• Mechanical structure

Firmware tuning usually includes:

• Sensitivity adjustment
• Scan frequency
• Filtering strategy
• Touch threshold
• Water rejection parameters
• Glove touch optimization

Therefore, successful PCAP touch performance is a complete system engineering process.

Why Work With an Experienced Touch Solution Provider?

Many OEM customers believe they need to select the touch controller IC before starting development.

In practice, a more efficient approach is:

Define the application requirements first, then select and optimize the controller solution.

A complete touch solution should consider:

• Touch sensor design
• Controller IC selection
• Firmware optimization
• Cover glass structure
• Optical bonding
• Mechanical integration
• Reliability testing
• Long-term supply

At DINGTouch, our engineering team works with leading touch controller solutions including:

• Microchip
• Infineon (Cypress)
• Goodix
• FocalTech
• ILITEK
• EETI

We select and optimize touch controller solutions based on each project's requirements instead of recommending a single controller brand.

Frequently Asked Questions

1. Can different touch controller ICs work with the same touch sensor?

Sometimes yes. However, replacing the controller usually requires hardware validation, firmware adjustment, and compatibility testing.

2. Does a better touch controller IC always provide better performance?

Not necessarily.

Touch performance depends on:

• Controller IC
• Sensor design
• Cover glass
• Firmware tuning
• System integration

3. Can a touch controller improve glove touch or waterproof performance?

Yes, but only as part of a complete solution.

Glove operation and water resistance also depend on sensor design, glass thickness, and firmware optimization.

4. Can touch controller firmware be customized?

Yes.

Many industrial touch controllers support firmware tuning for:

• Sensitivity
• EMI resistance
• Water rejection
• Glove touch
• Application-specific performance

5. Should OEM customers select the touch controller IC by themselves?

Not always.

The best approach is to define the application requirements first and work with an experienced touch solution provider to select and optimize the right controller.

Conclusion

Choosing the right capacitive touch controller IC is not simply about selecting the most famous brand or the highest specification.

The best controller is the one that matches the application's real requirements.

For industrial PCAP touch screen, factors such as cover glass thickness, EMI environment, glove operation, waterproof performance, firmware optimization, and product lifetime must all be considered.

A successful touch solution is not created by the controller IC alone — it is the result of complete system engineering.
