IK Rating and Cover Glass Thickness: Key Factors in Building Durable Touch Display Solutions

IK Rating and Cover Glass Thickness: Key Factors in Building Durable Touch Display Solutions

Why Durability Is Critical for Touch Display

In demanding environments such as industrial automation, public kiosks, and transportation systems, touch display are exposed to constant mechanical stress, impacts, and harsh operating conditions.

In these scenarios, long-term reliability depends primarily on two critical factors:

• IK Rating (Impact Protection Level)
• Cover Glass Thickness (Structural Protection)

The right combination of these elements directly determines the display’s durability, lifespan, and maintenance costs.

1. What Is IK Rating? — The Global Standard for Impact Resistance

1.1 Definition: A Standardized Measure of Mechanical Protection

The IK rating is defined by the international standard IEC 62262 (EN 62262). It classifies the degree of protection an enclosure provides against external mechanical impacts.

In simple terms:

It quantifies how much impact force a device can withstand without damage.

1.2 IK Rating Scale: From No Protection to Extreme Durability

IK ratings range from IK00 (no protection) to IK11 (highest protection), each corresponding to a specific impact energy level (measured in joules).

Key Insight: The higher the IK rating, the stronger the resistance to mechanical impact.

1.3 Testing Methods: How IK Ratings Are Verified

IK ratings are validated through standardized testing procedures, including:

• Free-fall impact tests (steel ball drop)
• Pendulum hammer tests

These tests simulate real-world impacts by applying controlled energy levels using defined:

• Weight
• Drop height
• Impact force

2. Cover Glass Thickness: Balancing Protection and Performance

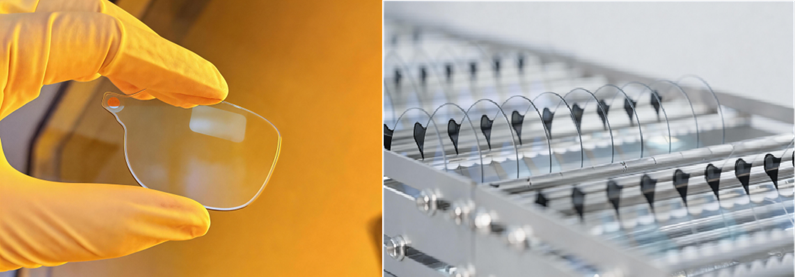

2.1 Role of Cover Glass: The First Line of Defense

The cover glass (also known as the cover lens) is the outermost layer of a touch display. Its primary functions include:

• Impact resistance
• Scratch protection
• Environmental shielding (dust, oil, chemicals)
• Structural reinforcement

2.2 Thickness Range and Application Scenarios

Typical cover glass thickness ranges from:

0.5 mm to 6 mm

2.3 The Trade-Off: Thicker Isn’t Always Better

Advantages of thicker glass:

• Higher impact resistance
• Improved structural rigidity
• Longer service life

However, drawbacks include:

• Reduced touch sensitivity (signal attenuation)
• Lower optical performance (light transmission, reflection)
• Increased cost

Key takeaway: Optimal thickness is about balance—not maximum thickness.

2.4 Common Materials Used

The most widely used cover glass materials include:

• Tempered Glass
  → Cost-effective with reliable strength
• Chemically Strengthened Glass
  → Higher durability, ideal for industrial and high-end applications

3. IK Rating × Glass Thickness: Finding the Optimal Balance

In real-world design, IK rating and glass thickness must be considered together, not independently.

3.1 Recommended Combinations by Application

3.2 Key Design Considerations

When selecting specifications, consider:

• Operating environment (indoor / outdoor / extreme conditions)
• Impact risk (accidental vs. intentional damage)
• Touch requirements (glove touch, wet touch, precision)
• Display performance (brightness, clarity)
• Cost and maintenance cycle

3.3 Common Misconceptions

“Higher IK rating always guarantees better protection”
→ Structural design and material quality also matter

“Thicker glass is always more durable”
→ May negatively affect touch performance

“One standard solution fits all applications”
→ Customization is often required

4. Conclusion: Engineering Reliable Touch Display

Designing touch display for harsh environments is not about optimizing a single parameter—it’s about system-level engineering.

Best practice:

Combine the appropriate IK rating with optimized cover glass thickness to achieve the ideal balance between protection, usability, and cost efficiency.

Whether applied in:

• Industrial HMI systems
• Medical devices
• Outdoor kiosks
• Smart transportation

Early-stage design decisions around these two factors are essential to ensuring long-term durability and stable performance.

If you're developing a high-reliability touch display solution, we can help you optimize IK ratings and cover glass structures based on your specific application requirements.

Feel free to reach out for customized engineering support and design consultation-DINGTouch.
