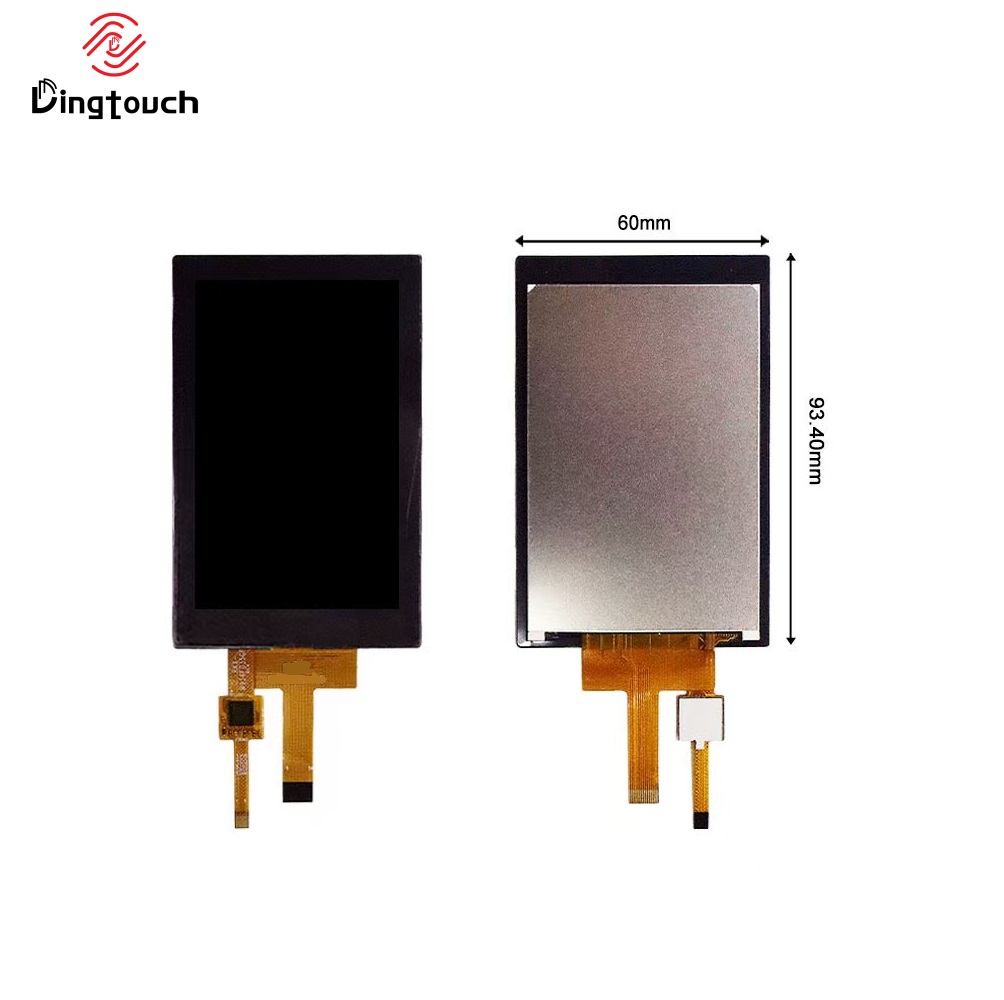

How to Choose a 3.5-Inch LCD Display: Features, Technologies, and Application Scenarios

A 3.5-inch LCD display is compact, versatile, and widely used in embedded systems, handheld devices, and industrial applications. When selecting a 3.5" display, it’s crucial to consider resolution, interface, touch support, brightness, and integration requirements based on your use case.

I. Key Specifications of 3.5-Inch LCD Display

1️⃣ Display Parameters

• Screen Size: 3.5 inches (measured diagonally)

• Resolution Options:

  • 320×240 (QVGA) – Common in low-power devices

  • 480×320 (HVGA) – Better clarity for graphics/UI

  • 800×480 (WVGA) – High-end variant for sharper visuals

• Aspect Ratios: Typically 4:3 or 16:9

• Brightness: 200–500 nits (customizable for indoor/outdoor use)

• Pixel Density: Depends on resolution; higher resolution = sharper display

2️⃣ Display Technology

• TFT LCD: Economical and widely adopted; fast response

• IPS LCD: Provides wider viewing angles and better color accuracy

• Backlight: LED backlight (low power, long life)

II. touchscreen Options (Optional)

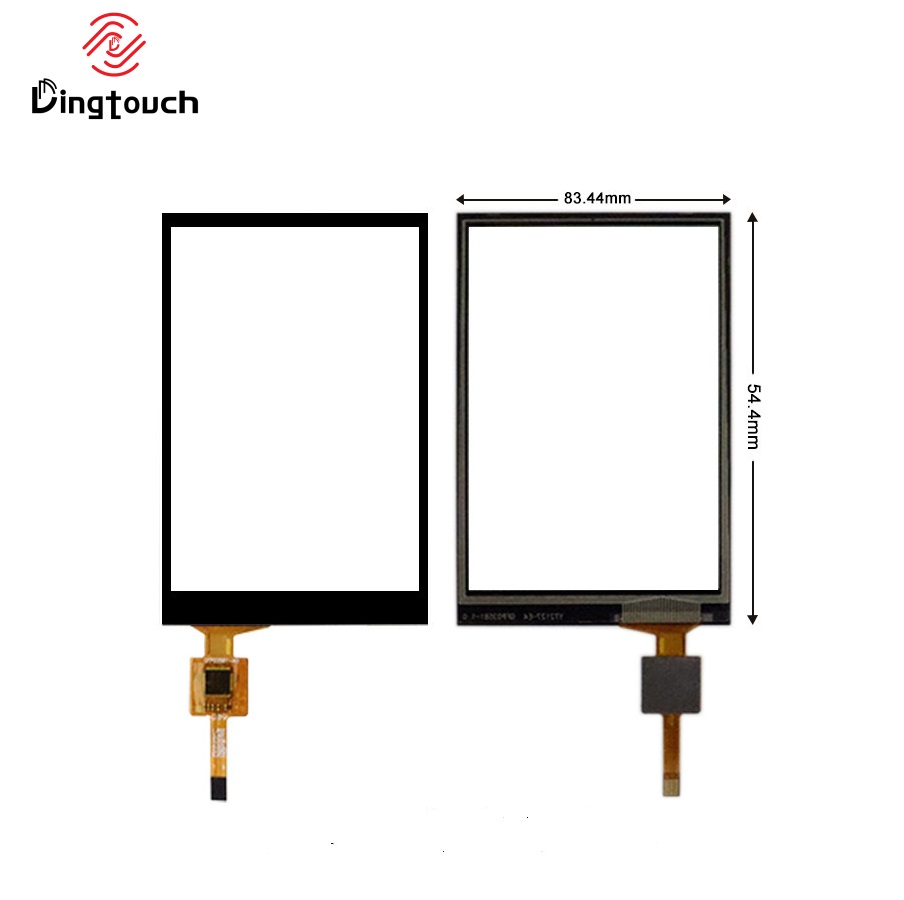

• Resistive touchscreen:

  • Works with stylus or gloved finger

  • Less sensitive but affordable

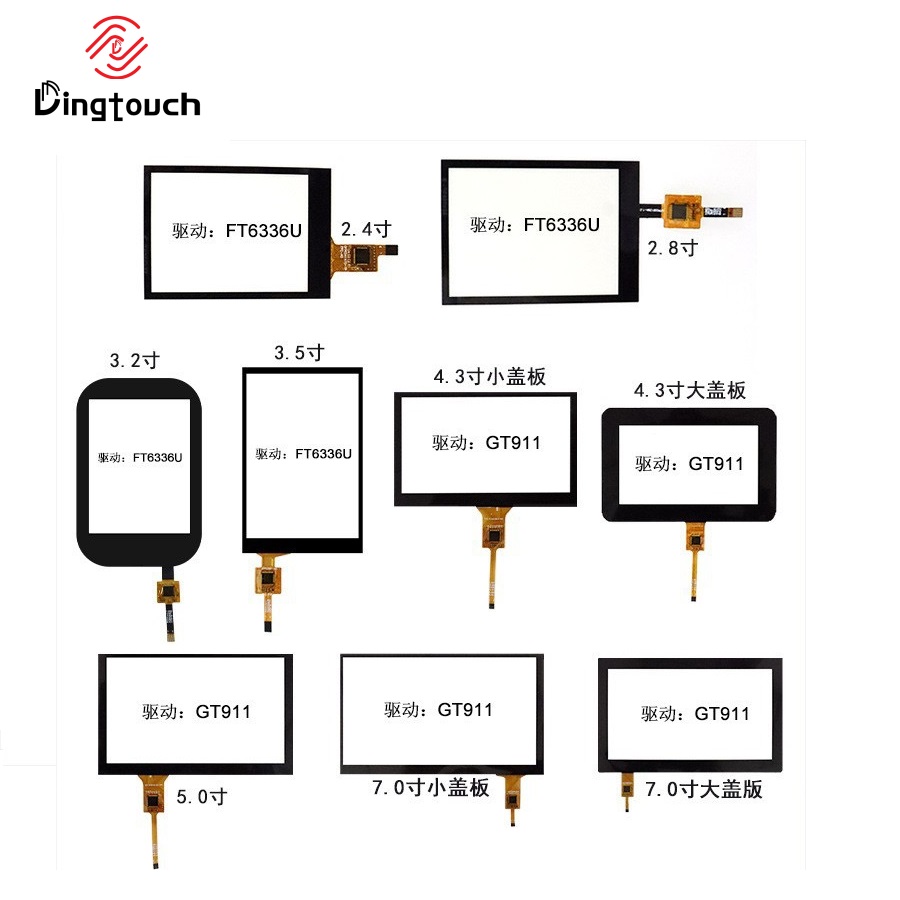

• Capacitive touchscreen:

  • Multi-touch support

  • High responsiveness and durability

  • Preferred in modern consumer applications

III. Interface & Connectivity

Choose the interface based on your system's I/O capabilities:

• Power Consumption: Typically 1W–3W, depending on brightness and backlight efficiency

IV. Applications of 3.5-Inch LCD Display

1. Embedded Systems & Prototyping

• Raspberry Pi/Arduino Projects: Used for GUI dashboards, sensor readouts, smart controls

• ESP32/STM32 Interfaces: Real-time data display in IoT systems

• DIY Makerspace Projects: Compact and easy to integrate for personal or educational builds

2. Handheld Devices

• Portable Game Consoles: Retro-style gaming devices

• Medical Instruments: Vital sign monitors, glucose meters, and portable diagnostics

• Measurement Tools: Oscilloscopes, signal generators, and digital multimeters

3. Automotive & Industrial Use

• Car Dashboards: Reverse camera displays, multimedia systems

• Industrial HMIs: Machine control panels, automation systems

• Security Panels: CCTV monitors, access control touchscreens

4. Consumer Electronics

• Smart Home Controllers: Thermostats, intercoms, smart lighting interfaces

• Digital Media Devices: MP4/MP5 players, photo viewers

• E-Readers: Compact e-ink alternatives with color display

5. Wearables & Portables

• Smartwatches & Fitness Devices: Some models use small, sharp LCDs

• Handheld GPS Navigators: Compact for outdoor navigation and fieldwork

V. Choosing the Right 3.5" Display: Key Considerations

VI. Conclusion

The 3.5-inch LCD display offers an excellent balance of size, resolution, and affordability for compact interfaces. Whether for industrial control, embedded computing, handheld devices, or smart home use, it provides a reliable and customizable solution.

DINGTouch: Custom 3.5-Inch LCD Display Solutions

• Capacitive & Resistive touch options

• SPI, RGB, MIPI, HDMI interfaces

• Standard or high-brightness displays (300–1000 nits)

• Driver boards, HMI kits, Android solutions available

• Long-lifecycle, industrial-grade panels with 50,000+ hour backlight

Contact us for datasheets, sample kits, or custom display integration.
