How to Achieve Zero-Error Display on Operating Room Serial Port Screens



How to Achieve Zero-Error Display on Operating Room Serial Port Screens



---

Chapter 1: The Precision Revolution in Medical Displays — Surpassing the Limits of Human Vision

1.1 DICOM GSDF Standard: The "Bible" of Medical Displays

Key Requirements:

• Grayscale display must comply with DICOM Part 14 standard

• Adjustable brightness range from 1 to 2000 cd/m²

• Gamma curve error must be less than 5%

Implementation Technology:

• 12/14-bit color depth processing (standard monitors typically use 8-bit)

• Each display is individually calibrated before shipping

• Built-in 3D LUT (lookup table) provides real-time color correction

Case Study: Coronis Uniti surgical displays utilize a 16-bit processing engine to achieve a grayscale contrast ratio of 10,000:1.

---

1.2 The "Color Accuracy" of Medical TFT LCD

Radiology Example: The RadiForce MX series can distinguish brightness differences as small as 0.3%, enabling detection of early-stage lung nodules as small as 1 mm.

---

Chapter 2: Surviving Extreme Conditions in the Operating Room

2.1 The "Chemical Warfare" of Disinfectants

Challenges:

• Chlorine-based disinfectants corrode screen surfaces

• Alcohol can strip off the anti-glare (AG) coating

Solutions:

• Nano oil-repellent coating (similar to Gorilla Glass anti-smudge technology)

• IP54-rated sealing to resist liquids

• Bezel-less design to prevent fluid accumulation

Test Data: The LMD-X series maintained a surface contact angle over 110° even after 10,000 wipes with isopropyl alcohol.

---

2.2 Electromagnetic Compatibility (EMC) Challenges

High-frequency electrosurgical instruments generate intense interference between 300 MHz and 2 GHz.

Medical displays must comply with:

• IEC 60601-1-2 (EMC standard for medical electrical equipment)

• YY 0505 (China’s medical EMC standard)

Innovative Solutions:

• Dual-layer shielded PCB design

• Fiber optic transmission replaces copper wiring

• The Stoneon STWi series adopts a full-metal enclosure as a Faraday cage

---



Chapter 3: The “Hell-Level” Testing Behind Medical Certifications

3.1 The Harsh Demands of FDA Certification

Accelerated Aging Test:

• 2000 hours of continuous operation at 85°C and 85% humidity

• 500 cycles of temperature ranging from -20°C to 50°C

Optical Stability Test:

• Brightness decay <5% (standard screens often degrade by 20%)

• Color shift ΔE <2

---

3.2 Real-World Medical Scenario Simulations

• Darkroom Testing: Assess low brightness performance in 5 lux environments

• Bright-Light Testing: Evaluate glare resistance under 2000 lux lighting

• Glove Touch Testing: Ensure responsiveness when operated with surgical gloves

Case Study: The RadiForce series maintained a contrast ratio of 1000:1 even when directly exposed to simulated surgical lighting.

---

Chapter 4: Future Trends — The Smart Evolution of Medical Display

AI-Powered Real-Time Diagnostic Support

• Integrated GPU-accelerated lesion recognition algorithms

• Canon Medical's CXDI series now offers automatic lung nodule detection

3D Surgical Navigation Display

• 4K 3D stereoscopic display combined with head-tracking

• Stryker’s 3D laparoscopic system achieves sub-8ms latency

Self-Disinfecting Surface Technologies

• Photocatalytic coatings eliminate 99.9% of bacteria under LED lighting

• Toshiba Medical is testing antimicrobial coatings using copper ions

---

Conclusion: Medical Displays as Guardians of Precision

Medical-grade display are more than just visual interfaces—they are vital tools in the diagnostic chain. From the strict DICOM compliance to surviving the harshest operating environments, these screens leverage advanced engineering to deliver life-saving accuracy.



 Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch :Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.
Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

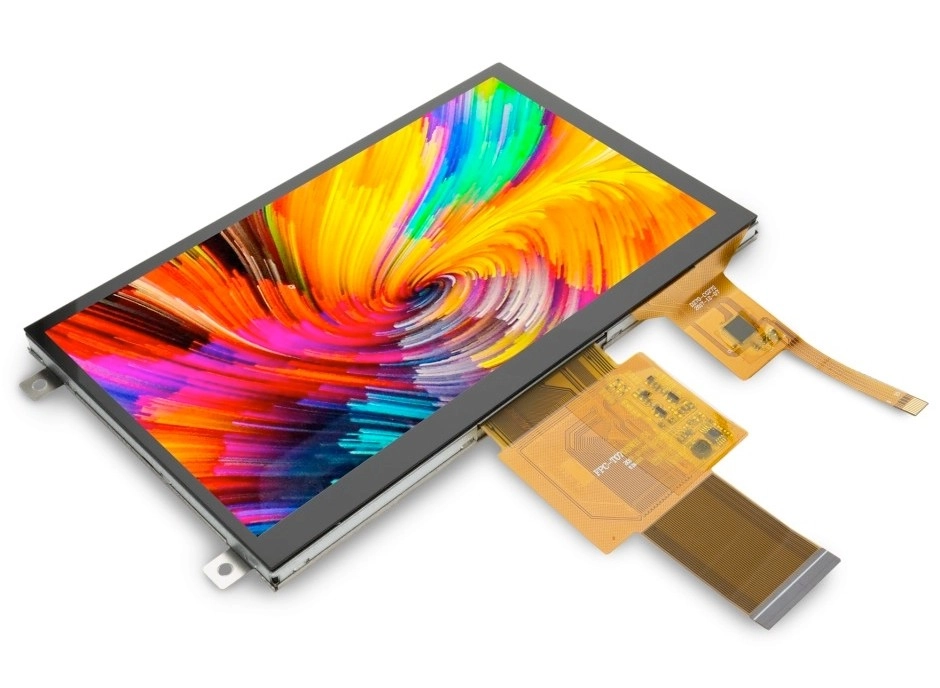

Dingtouch Industrial Capacitive Touch Screen Manufacturer
