Beyond Standard LCD Modules

In today’s fast-evolving display industry, LCD modules are no longer standalone components—they are integrated solutions. By incorporating additional functional elements such as touch interfaces, signal conversion circuits, and mechanical reinforcements, manufacturers can significantly improve system compatibility, reliability, and ease of assembly.

This article explores how strategic integration enhances LCD module performance while solving real-world engineering challenges.

1. Interface Integration: Simplifying System Connectivity

Multi-Interface Integration for Compact Designs

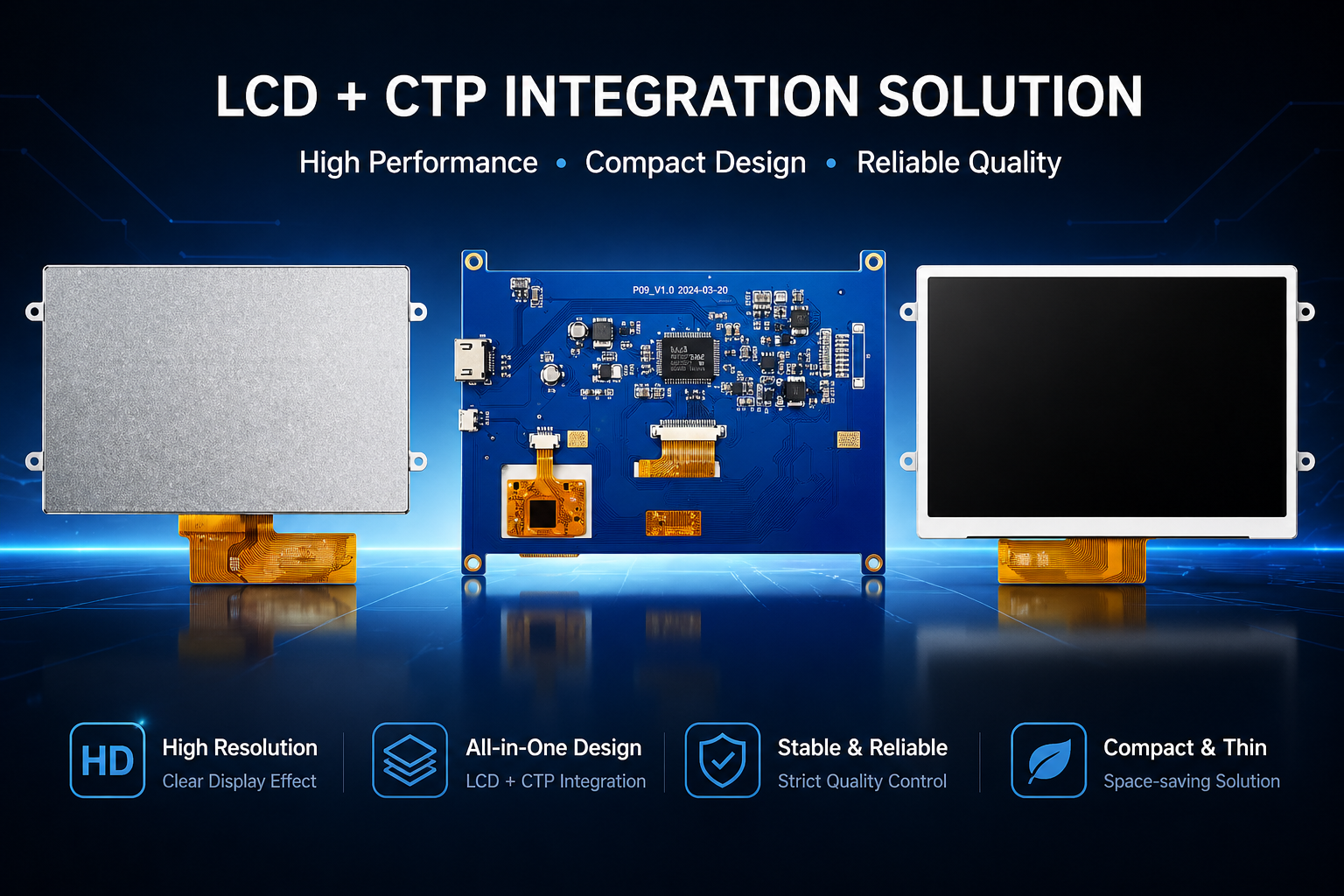

For LCD modules with touch functionality, combining interfaces such as:

• LCD display interface
• Capacitive Touch Panel (CTP) interface

can greatly reduce connector count and save valuable PCB space—especially critical for compact or space-constrained motherboards.

Key Design Consideration: Power Isolation

While integrating interfaces improves efficiency, careful attention must be paid to power design:

• Avoid sharing the same VDD between LCD and CTP
• Prevent signal interference and instability caused by power noise

Optimizing power architecture is essential to ensure stable touch performance and display reliability.

Advanced Integration: TCON-Based Consolidation

Another effective approach is integrating multiple signals into a TCON (Timing Controller) PCB, including:

• Backlight control
• LCD signals
• Resistive Touch Panel (RTP)
• Capacitive Touch Panel (CTP)

This method further simplifies wiring, reduces assembly complexity, and enhances overall system integration.

2. Signal Conversion: Bridging Interface Gaps

Solving Interface Mismatches

A common challenge in embedded systems is interface incompatibility. For example:

You need a 4.3-inch 480×272 RGB LCD, but your motherboard only supports an MCU interface.

Integrated Conversion Solutions

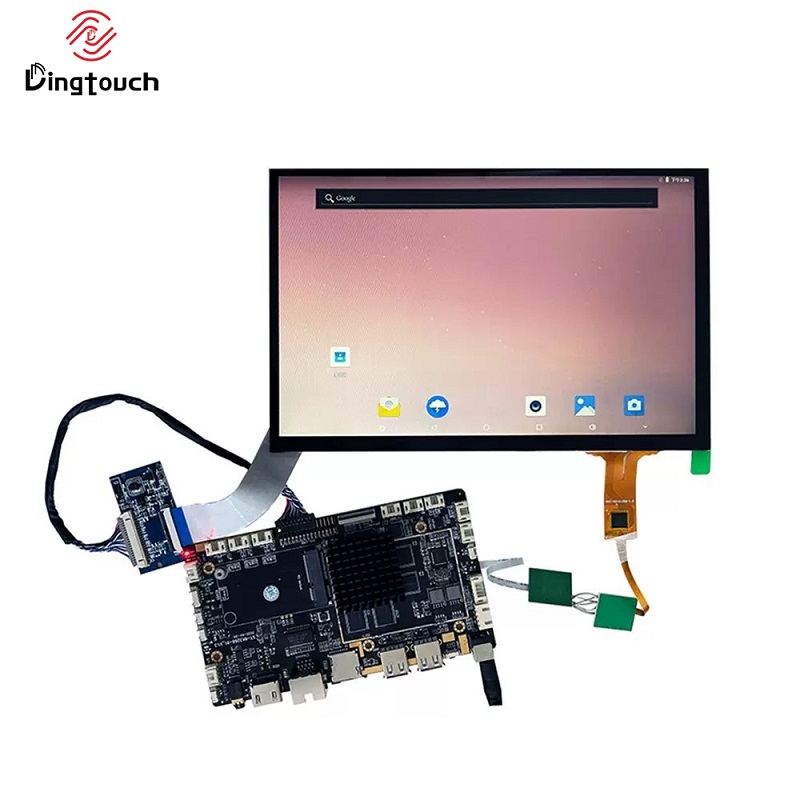

To address this, signal conversion circuits can be embedded directly into the LCD module, enabling:

• RGB → MCU conversion
• Compatibility across different display sizes and platforms

This allows seamless integration without redesigning the mainboard.

Design Trade-Offs

While highly effective, signal conversion integration comes with considerations:

• Additional circuitry increases module thickness
• Mechanical structure must be evaluated in advance
• Thermal and power consumption factors should be assessed

Proper early-stage design planning ensures optimal performance and fit.

3. Mechanical Enhancements: Improving Structural Reliability

When Adhesives Aren’t Enough

In applications exposed to:

• Shock
• Vibration
• Harsh environments

standard adhesive mounting may not provide sufficient stability.

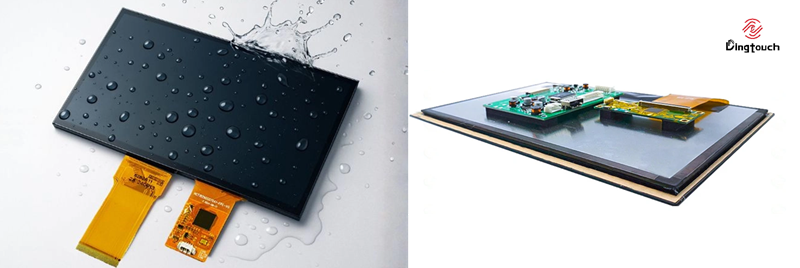

Screw Fixation Solutions

For enhanced durability, mechanical fastening methods can be implemented:

• PCB Extension Design
  Expand the PCB beyond the LCD perimeter and add through-holes for screw mounting
• Backlight Structure Optimization
  Utilize positioning holes in the backlight plastic frame or metal chassis for secure installation

Benefits

• Stronger mechanical fixation
• Improved resistance to vibration and impact
• Easier and more reliable assembly process

Conclusion: Integrated Design for Next-Generation LCD Modules

Enhancing LCD modules with additional components is more than just adding features—it's about delivering a complete, application-ready solution.

By combining:

• Interface integration for simplified connectivity
• Signal conversion for broader compatibility
• Mechanical design for robust installation

manufacturers can significantly improve both product performance and user experience.
