DINGTouch Heavy Machinery Outdoor Touch Display Solution

DINGTouch Heavy Machinery Outdoor Touch Display Solution

Rugged HMI Systems for Excavators, Mining Equipment, and Construction Machinery

In demanding industries such as forestry, construction, mining, and agriculture, touch displays have become a critical component of modern operator cabins. However, prolonged exposure to intense sunlight, extreme temperatures, moisture, vibration, and electromagnetic interference often causes conventional touchscreen to suffer from touch failure, yellowing, reduced visibility, and unstable performance.

As a leading provider of industrial touch display solutions, DINGTouch partnered with a globally recognized heavy equipment manufacturer to develop a highly reliable outdoor touchscreen system. By upgrading the traditional GFF structure to a robust G+G architecture and incorporating UV-resistant materials and industrial-grade touch technology, DINGTouch successfully delivered a display solution capable of operating in the harshest outdoor environments.

Today, this solution is deployed in thousands of excavators across China, Europe, India, and Brazil, with annual shipments exceeding 40,000 units.

Project Background

Supporting the Digital Transformation of Heavy Machinery

The customer is a global manufacturer of compact and mid-sized excavators, construction equipment, and mining machinery. As the industry shifts toward intelligent operator interfaces and digital control systems, the company required a rugged touchscreen solution capable of maintaining long-term reliability under extreme outdoor conditions.

Key Project Requirements

• Reliable outdoor performance in all weather conditions
• Industrial-grade durability and stability
• Adaptability to diverse global climates
• Integration with irregular dashboard designs
• High-precision multi-touch capability
• Glove-touch support
• Excellent EMC and EMI resistance

Key Challenges for Heavy Machinery Displays

Extreme Temperature Conditions

Heavy equipment often operates in deserts, mountainous regions, arctic environments, and tropical climates.

Operating Temperature

-30°C to +70°C

Storage Temperature

-40°C to +80°C

Standard consumer-grade touchscreens typically experience:

• Touch failure
• Optical bonding degradation
• Slow response times
• Display instability

under these demanding conditions.

Continuous UV Exposure

Long-term sunlight exposure can result in:

• Cover glass yellowing
• Silk-screen fading
• Adhesive degradation
• Reduced optical performance

These issues significantly impact display quality and service life.

Integration into Irregular Dashboards

Modern excavator cabins increasingly utilize ergonomic dashboard designs featuring:

• Complex geometries
• Curved surfaces
• Customized control layouts

Traditional rectangular touchscreens cannot easily meet these installation requirements.

High-Precision Touch in Harsh Environments

Operators frequently work under challenging conditions such as:

• Wearing heavy gloves
• Wet environments
• Mud and dust contamination
• Strong electromagnetic interference

Touch systems must remain responsive, accurate, and stable at all times.

DINGTouch Solution

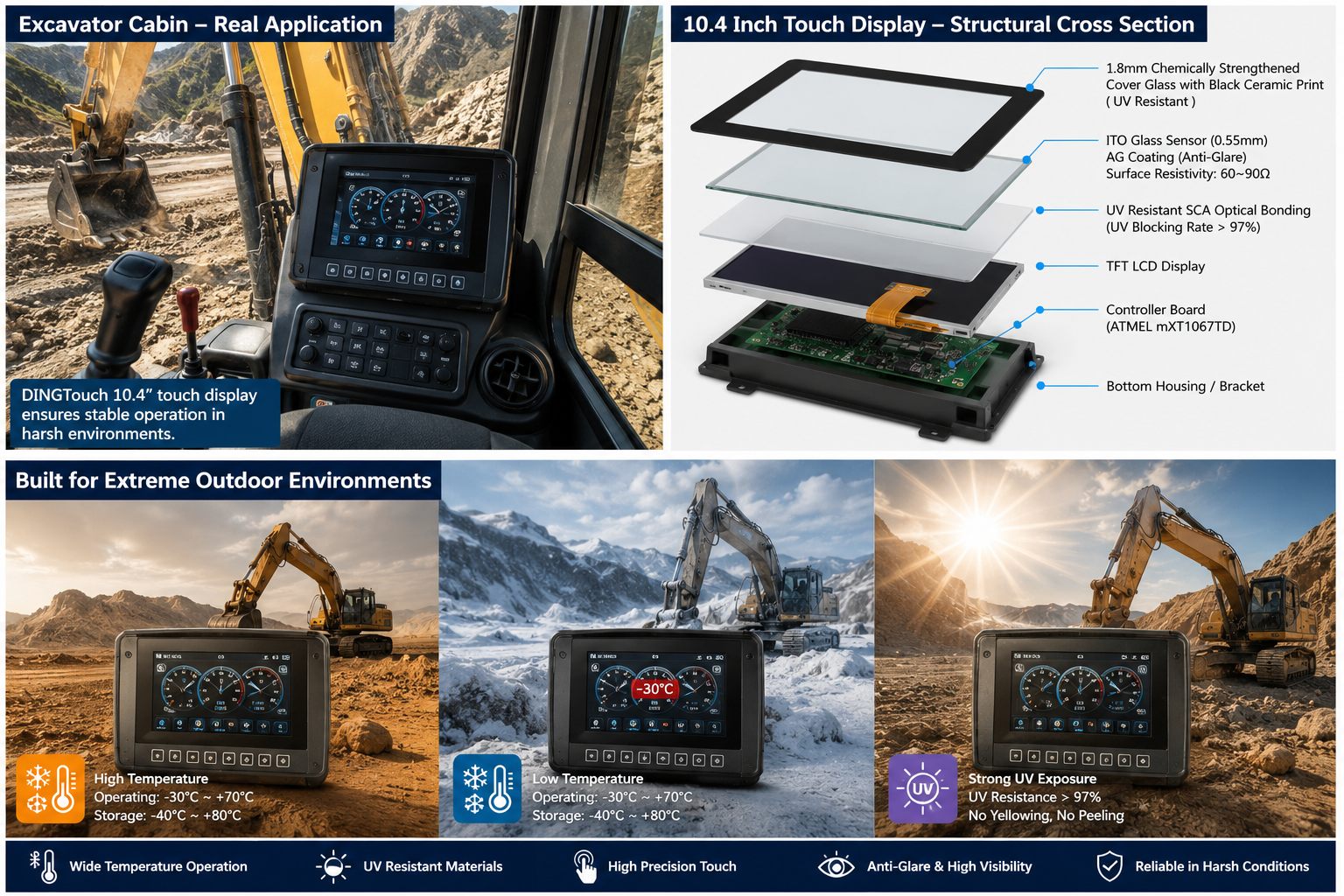

10.4-Inch Industrial Central Dashboard Touch Display

To address these challenges, DINGTouch developed a rugged 10.4-inch industrial touch display specifically engineered for heavy machinery applications.

Robust G+G Touch Structure

Upgrading from GFF to G+G Technology

Compared with traditional Glass-Film-Film (GFF) structures, the Glass-Glass (G+G) design offers:

• Superior mechanical strength
• Higher optical clarity
• Enhanced impact resistance
• Improved durability
• More stable touch performance

Even under continuous vibration and mechanical shock, the touchscreen maintains reliable operation.

Industrial-Grade Cover Glass

Cover Glass Specifications

• 1.8 mm chemically strengthened soda-lime glass
• Black UV-resistant ceramic printing
• Weather-resistant surface treatment

Benefits

• Enhanced impact resistance
• Long-term UV protection
• Consistent appearance over time
• Extended outdoor service life

Functional Window Design

To support advanced dashboard functionality, DINGTouch provides customized openings for:

• Infrared sensors
• Indicator lights
• Transparent functional windows

This enables seamless integration between the display and machine control systems.

Industrial Touch Sensor Design

Sensor Specifications

• 0.55 mm ITO glass sensor
• Double-sided anti-glare coating
• Surface resistance: 60–90 Ω

Manufacturing Process

• Precision screen printing
• Laser pattern processing
• Industrial-grade quality control

Advantages

• Higher touch accuracy
• Superior noise immunity
• Stable signal transmission

Custom CNC Irregular Cutting

To accommodate complex dashboard layouts, DINGTouch utilizes precision CNC machining technology.

Supported Features

• Curved edge designs
• Irregular openings
• Custom mounting structures

This ensures a perfect fit within modern heavy machinery cabins.

UV-Resistant Optical Bonding System

Advanced UV-Resistant SCA Bonding

The display utilizes a premium optical bonding adhesive featuring:

• UV blocking rate above 97%
• Operating temperature: -40°C to +90°C
• Anti-yellowing performance
• Delamination resistance
• Bubble prevention

The result is significantly improved outdoor reliability and product longevity.

Industrial Touch Controller

ATMEL maXTouch mXT1067TD

The solution incorporates the industrial-grade ATMEL maXTouch controller, providing:

• 6-pin I2C interface
• Multi-touch support
• High sensitivity
• Low power consumption
• Exceptional EMI resistance

Even near hydraulic systems, electric motors, and high-power equipment, touch performance remains stable and accurate.

Proven Results

Solving the Three Major Challenges of Outdoor Displays

Eliminating Yellowing

UV-resistant materials and specialized printing processes effectively prevent discoloration caused by prolonged sunlight exposure.

Preventing Touch Drift

The combination of G+G architecture and industrial-grade controllers significantly improves touch stability.

Reliable Operation in Extreme Conditions

Wide-temperature design ensures consistent performance in demanding environments.

Global Deployment Success

This solution has been successfully deployed across:

• China
• Europe
• India
• Brazil

Applications include:

• Excavators
• Wheel Loaders
• Bulldozers
• Mining Equipment
• Forestry Machinery
• Specialized Construction Vehicles

With annual shipments exceeding 40,000 units, the solution has proven its reliability in diverse global markets.

Why Choose DINGTouch?

As a professional industrial display manufacturer, DINGTouch provides complete design, engineering, and manufacturing services.

Customization Capabilities

• Custom touchscreens from 2.4" to 65"
• Irregular shape designs
• IK-rated impact-resistant solutions
• Optical bonding technologies
• Sunlight-readable display solutions

Industrial Reliability

• Wide-temperature operation
• Waterproof and dustproof designs
• EMI and EMC optimization
• UV-resistant construction

One-Stop Service

• TFT LCD Display
• PCAP Touch Panels
• Touch Controller Boards
• Cover Glass Solutions
• Full Optical Bonding Services

Contact DINGTouch for Your Heavy Equipment Display Solution

Are you experiencing:

✓ Touch failure in outdoor environments

✓ Screen yellowing caused by UV exposure

✓ Poor performance in extreme temperatures

✓ Touch drift and instability

✓ Challenges integrating displays into custom dashboards

DINGTouch engineering team can develop a customized industrial touch display solution tailored to your application environment, display size, and performance requirements—ensuring reliable operation in the world's most demanding working conditions.

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.
