As industrial Human-Machine Interface (HMI) systems continue expanding into public and heavy-duty operating environments, standard touchscreens are increasingly challenged by vandalism risks, accidental impacts, and long-term mechanical stress. Applications installed in public areas require touch interfaces capable of surviving harsh conditions without sacrificing performance or user experience.

To address these challenges, DINGTouch developed a customized 5.0-inch Projected Capacitive (PCAP) touch panel solution engineered specifically for rugged industrial environments where durability and impact resistance are critical.

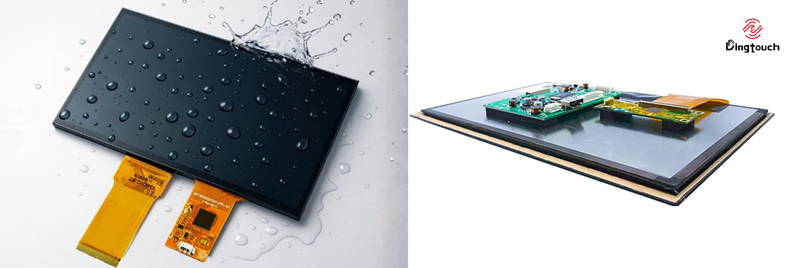

touchscreen="" designed="" for="" rugged="" industrial="" hmi="" applications="" cover="" lens="" |="" p+f+f="" structure="" high="" impact="" resistance="" industrial-grade="" public="" access="" environments"="">Project Overview

Application: Rugged Industrial HMI
Environment: Public Access / Heavy Duty Applications
Project Type: Confidential Customized Project

Core Customer Requirements

The customer required a highly durable touch interface capable of withstanding intensive usage and physical abuse in demanding environments.

Key requirements included:

• High impact resistance
• Shatterproof structure
• Enhanced mechanical durability
• Stable touch performance
• Compatibility with standard TFT display modules
• Long-term operational reliability

DINGTouch Customized Touch Solution

Touch Panel Specifications

To meet the project requirements, DINGTouch engineered a customized industrial-grade PCAP touch panel.

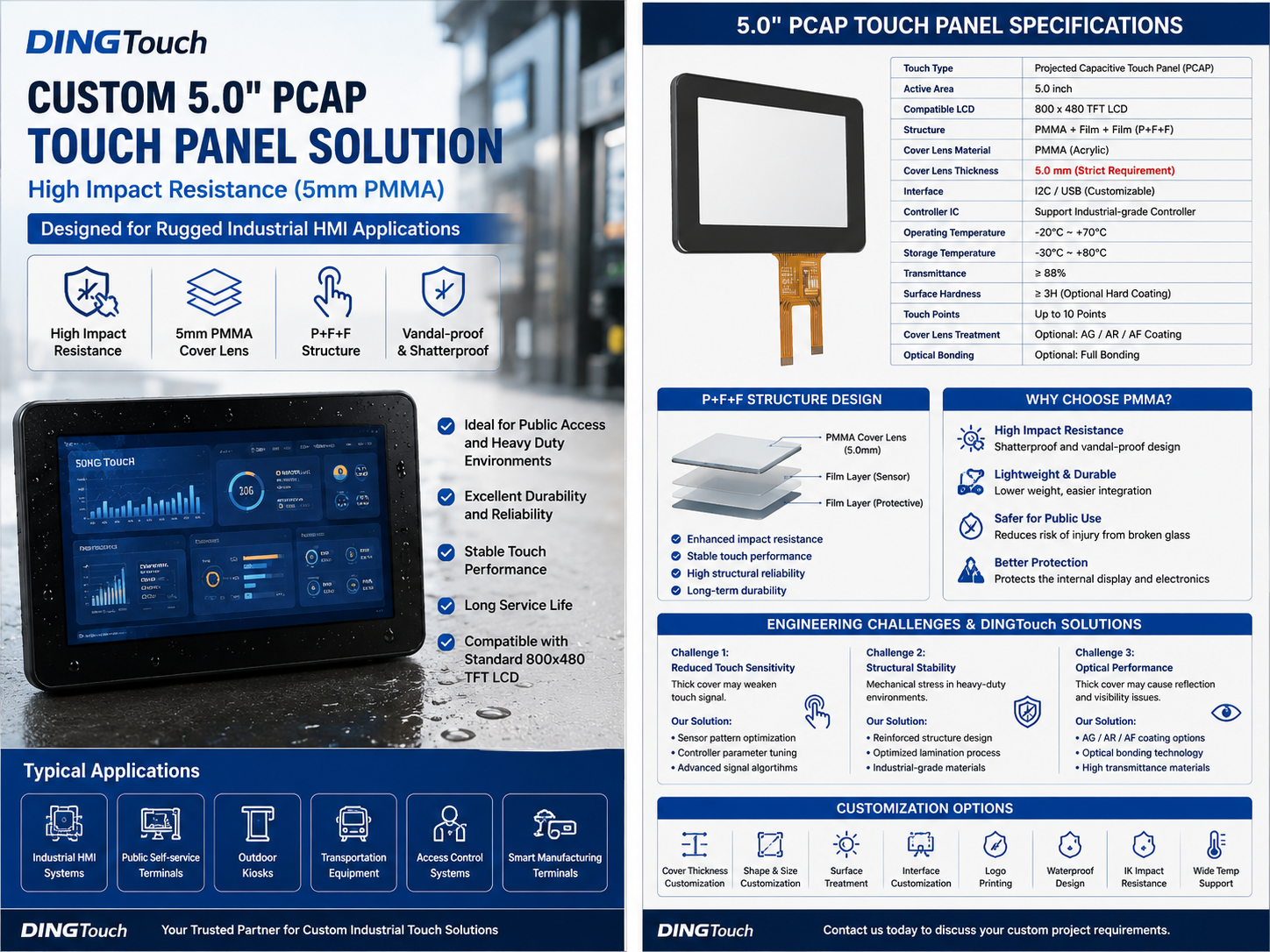

Technical Specifications:

• Touch Type: Projected Capacitive Touch Panel (PCAP)
• Active Area: 5.0 inch
• Compatible LCD Resolution: 800 × 480 TFT LCD
• Touch Structure: PMMA + Film + Film (P+F+F)
• Interface: Customizable
• Industrial-grade controller support available

High-Strength Cover Lens Design

PMMA Cover Lens Structure

Unlike conventional glass-based touch solutions, this project adopts a PMMA (Acrylic) cover lens design.

Material: PMMA (Acrylic)
Thickness: 5.0 mm (strict requirement)

Why PMMA Was Selected

For public access equipment and heavy-duty industrial devices, traditional glass may provide excellent optical performance but can crack or shatter under severe impacts.

DINGTouch selected PMMA material because it offers several important advantages:

Outstanding Impact Resistance

PMMA provides:

✔ Excellent resistance against accidental impacts

✔ Shatterproof characteristics

✔ Reduced risk of user injury

✔ Better protection for internal display components

✔ Enhanced system reliability

Lightweight Yet Durable

Compared with thick glass structures, PMMA offers:

• Lower weight
• Easier integration
• Better structural flexibility
• Reduced installation stress

Suitable for Public Access Equipment

PMMA touch structures are widely used in:

• Self-service kiosks
• Industrial control terminals
• Outdoor HMI systems
• Public information systems
• Transportation equipment
• Smart city terminals

P+F+F Structure Design Advantages

PMMA + Film + Film Architecture

DINGTouch selected a P+F+F structure to maximize both durability and touch performance.

Key benefits include:

Enhanced impact resistance

The structure absorbs external mechanical stress more effectively.

Improved touch sensitivity

Maintains stable touch response despite thick cover materials.

Higher structural reliability

Suitable for continuous operation in demanding industrial environments.

Long-term durability

Supports extended product life cycles.

Engineering Challenges & DINGTouch Solutions

Creating a high-impact touch panel with a 5mm PMMA cover lens introduces several technical challenges:

Challenge 1: Reduced Touch Sensitivity

Thicker cover materials can reduce touch signal transmission.

DINGTouch Solution:

• Sensor pattern optimization
• Controller parameter tuning
• Enhanced signal algorithms

Challenge 2: Structural Stability

Heavy-duty environments generate repeated mechanical stress.

DINGTouch Solution:

• Reinforced panel design
• Optimized lamination process
• Industrial-grade material selection

Challenge 3: Optical Performance

Thick cover materials may introduce reflection and visibility issues.

DINGTouch Solution:

Optional support for:

• AG coating (Anti-Glare)
• AR coating (Anti-Reflection)
• AF coating (Anti-Fingerprint)
• Optical bonding technology

Why Choose DINGTouch Custom Industrial Touch Solutions?

DINGTouch provides complete customized services including:

Mechanical Customization

• Cover thickness customization
• Material selection
• Shape customization
• Logo printing
• Surface treatment

Touch Optimization

• Controller tuning
• Sensor optimization
• Multi-touch support
• Glove touch support
• Water-resistant touch function

Industrial Enhancements

• Wide temperature support
• IK impact-resistant design
• Waterproof solutions
• EMI shielding
• Optical bonding solutions

Typical Applications

This high-impact PCAP touch solution is suitable for:

• Industrial HMI systems
• Public self-service terminals
• Outdoor kiosks
• Transportation equipment
• Heavy-duty control systems
• Smart manufacturing terminals
• Access control systems

Need a Customized Impact-Resistant Touch Solution?

At DINGTouch, we understand that every industrial project has unique requirements.

Whether your project requires:

• Thick PMMA cover lenses
• High-impact resistance
• Vandal-proof structures
• Custom touch controllers
• Optical bonding
• Industrial-grade reliability

Our engineering team can help create a tailored solution that matches your exact application requirements.

Contact DINGTouch today to discuss your project.
