DINGTouch 10.3-Inch 1280×480 TFT LCD Module with PCAP Touch High-Performance IPS Display Solution for Advanced Medical Equipment

DINGTouch 10.3-Inch 1280×480 TFT LCD Module with PCAP Touch

High-Performance IPS Display Solution for Advanced Medical Equipment

In modern healthcare environments, precision visualization and responsive interaction are critical. From patient monitoring systems to diagnostic consoles, medical equipment requires display modules that deliver stability, clarity, and durability.

DINGTouch proudly presents the 10.3-inch 1280×480 TFT LCD Module with Projected Capacitive Touch Screen, engineered to meet the strict reliability and performance standards of medical-grade applications.

Optimized 10.3-Inch Wide Format for Medical Interfaces

The 10.3-inch wide-format design (1280×480 resolution) provides an extended horizontal display area, making it ideal for:

• Vital sign monitoring dashboards

• Multi-parameter waveform displays

• Embedded medical control panels

• Smart bedside systems

• Laboratory and diagnostic instruments

The wide aspect ratio allows for efficient layout of real-time data, charts, and system controls without clutter — enhancing readability and operational efficiency.

IPS Technology for Accurate Color & Wide Viewing Angles

This module adopts an IPS (In-Plane Switching) display panel, offering:

• Wide viewing angles (up to 178°)

• Consistent color reproduction

• Minimal color shift

• Enhanced visual stability

For medical environments where multiple operators may observe the screen simultaneously, IPS ensures consistent image quality from various viewing positions.

High Brightness & Clear Visibility

With 480 nits brightness, the display provides:

• Clear visibility under strong indoor lighting

• Stable luminance performance

• Reduced glare impact in clinical settings

This ensures healthcare professionals can quickly and accurately interpret data in fast-paced environments.

Advanced Projected Capacitive Touch (PCAP)

Integrated with a Projected Capacitive Touch Screen featuring:

• Touch IC: GT911

• Touch Structure: G+G (Glass + Glass)

• Cover Lens Hardness: 6H

Advantages of G+G PCAP Structure:

• Excellent optical clarity

• High touch sensitivity

• Durable surface resistance

• Smooth and precise multi-touch interaction

The 6H hardness cover lens provides strong resistance against scratches and daily wear, making it suitable for continuous medical usage and frequent cleaning.

Reliable LVDS Interface for Stable Signal Transmission

The LVDS interface ensures:

• High-speed, low-noise signal transmission

• Reduced EMI interference

• Stable image performance

• Compatibility with industrial-grade medical motherboards

LVDS technology is widely adopted in professional equipment due to its reliability and signal integrity.

Mechanical & Structural Specifications

• Screen Size: 10.3 inch

• Resolution: 1280 × 480

• Display Type: IPS TFT

• Interface: LVDS

• LCM Outline Dimensions: 265.2 × 109.8 × 9.1 mm

• Active Area: 243.84 × 91.44 mm

• Brightness: 480 nits

• Touch IC: GT911

• Touch Structure: G+G

• Cover Lens Hardness: 6H

The slim 9.1 mm module thickness supports compact medical device integration.

Designed for Medical-Grade Applications

This 10.3-inch display module is ideal for:

• Patient monitoring systems

• Portable diagnostic equipment

• Surgical device interfaces

• Laboratory analyzers

• Smart hospital terminals

• Medical infusion systems

Its combination of IPS clarity, stable LVDS communication, and durable PCAP touch makes it a dependable choice for medical manufacturers.

Customization Services by DINGTouch

As a professional touch display manufacturer, DINGTouch offers flexible customization including:

• Optical bonding (OCA/OCR)

• Anti-glare / anti-fingerprint coating

• EMI/EMC optimization

• Brightness adjustment options

• Interface adaptation

• Cover glass printing & logo customization

• Wide temperature design

We support OEM and ODM medical projects with full engineering assistance from design validation to mass production.

Empowering Smarter Medical Devices

The DINGTouch 10.3-inch 1280×480 TFT LCD Module with PCAP Touch is more than a display — it is a precision interface designed to improve operational efficiency, enhance user interaction, and elevate healthcare device performance.

With high clarity IPS technology, stable LVDS transmission, and durable G+G capacitive touch integration, this solution helps medical equipment manufacturers build safer, smarter, and more reliable systems.

DINGTouch — Delivering Professional Display Solutions for Advanced Healthcare Innovation.

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.

DINGTouch :Committed to continuous innovation and improvement of product quality to meet customers' high requirements and expectations.

DINGTouch is a manufacturer that provides high quality touch screen panels. Focus on the design, manufacturing and sales of touch screen panels, and are committed to providing customized solutions that satisfy customers.

DINGTouch: In the process of customizing touch screen panels, we focus on close cooperation and communication with customers. Understanding customers' needs and providing customized solutions will meet customers' individual needs. The company's products are favored by customers for their high quality and reliability, and provide them with the best touchscreen panel solutions.

At DINGTOUCH, we are the world's leading touchscreen manufacturer, helping businesses around the world take advantage of this exciting technology. For more information, please visit the home page now.
Find the DINGTouch technical team to achieve the success of your company's new project.

How to choose touch screen customization?

DINGTouch is a company specializing in the R&D and production of touch screen technology, headquartered in Shenzhen, China. As a professional touch screen supplier, DINGTouch is committed to providing high-quality, stable and reliable touch screen products to meet the diverse needs of customers. We continue to carry out technological innovation and product optimization to ensure that its touch screen products have good sensitivity, accuracy and durability.

In addition to the products themselves, we also focus on cooperation and communication with customers, and are committed to providing customized solutions and excellent after-sales services. Through continuous efforts to improve product quality and customer satisfaction, we have established a good reputation in the touchscreen industry and won widespread market recognition.

What DINGTOUCH can do:

• PCAP  maximum size 65”

• Multi-touch (Touch screen can be customized to your needs.)

• Optical bonding service/air bonding

• LCD interface: HDMI/RGB/MIPI/LVDS/EDP, etc.

• PCAP interface: IIC/USB interface

• CTP can customize the cover glass surface treatment process AG (anti-glare), AR (anti-reflection), AF (anti-fingerprint), waterproof, and glove touch

• Supports 0.55 mm-12 mm coverslip touch.

• Support operating temperature: -40℃-90℃.

Dingtouch Industrial Capacitive Touch Screen Manufacturer

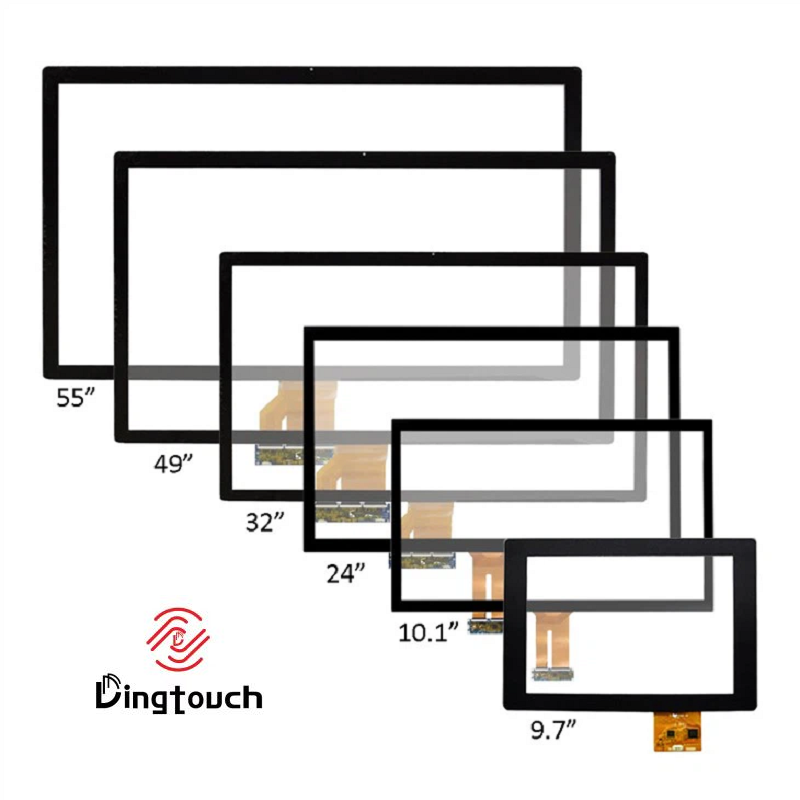

In conclusion, Dingtouch as a professional touch screen manufacturer with more than 10 years touch screen experience.We have many capacitive touch screen. Such as5  inch touch screen,7 inch touch screen,10.1inch touch screen,15 inch touch screen,15.6 inch touch screen,17 inch touch screen,18.5 inch touch screen,19 inch touch screen,21.5 inch touch screen,32 inch touch screen, However, we also welcome to customize your own touch screen . Contact our team today to learn what capacitive touch screen are best for our retail business needs.
