Backlight Technology Explained: The Optical Engine Behind High-Performance LCM Display

Backlight Technology Explained: The Optical Engine Behind High-Performance LCM Display

How Materials, Optical Design, and Engineering Decisions Define Brightness, Uniformity, and Reliability

— DINGTouch 10+ Years of Display & Touch Engineering Expertise

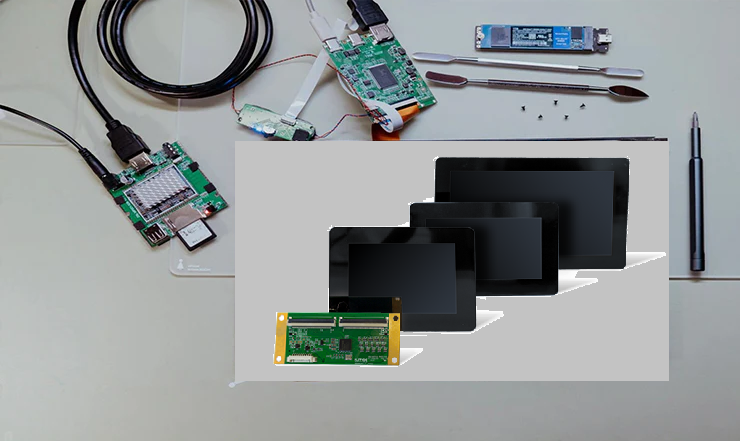

LCM Is More Than an LCD Screen: Understanding Display Modules as System-Level Products

In the liquid crystal display industry, an LCM (LCD Module) is not simply an LCD screen.
It is a highly integrated system-level display solution, combining multiple precision components, including:

• LCD panel

• Backlight unit (BLU)

• Driver ICs and control electronics

• PCB and signal interfaces

• Mechanical and optical support structures

As a professional LCD display manufacturer, DINGTouch clearly understands that the backlight is not an accessory, but a core subsystem that defines the upper limit of display performance.

The Backlight: The “Optical Engine” of an LCM

Liquid crystal materials do not emit light on their own.
All visible images are formed by modulating light provided by the backlight.

Therefore, the backlight serves as the optical foundation and energy source of the entire LCD module.

Key performance indicators directly influenced by the backlight include:

• Brightness (luminance)

• Luminance uniformity

• Color temperature and stability

• Power consumption and thermal behavior

• Lifetime and long-term reliability

The quality of the backlight ultimately determines how an LCD module performs in industrial, medical, outdoor, and commercial display applications.

Technical Breakdown: Materials and Optical Principles of Backlight Systems

1. Light Sources: Where Brightness, Color, and Lifetime Begin

Common backlight light sources include LED, EL, and CCFL, each defining the backlight’s fundamental characteristics:

• Initial brightness

• Color temperature range

• Service life

• Power efficiency

Today, LED backlighting has become the dominant solution across most display markets.

2. Light Guide Plate (LGP): The Core of Uniform Illumination

The light guide plate converts point or line light sources into a highly uniform surface light source.
Its performance depends on:

• Micro-dot structure design

• Dot density gradients

• Manufacturing precision

Precision Molded Micro-Dot Technology
Compared with traditional printed dot patterns, molded micro-dot structures offer superior optical consistency, long-term stability, and higher efficiency—making them the preferred choice for high-performance LCD modules.

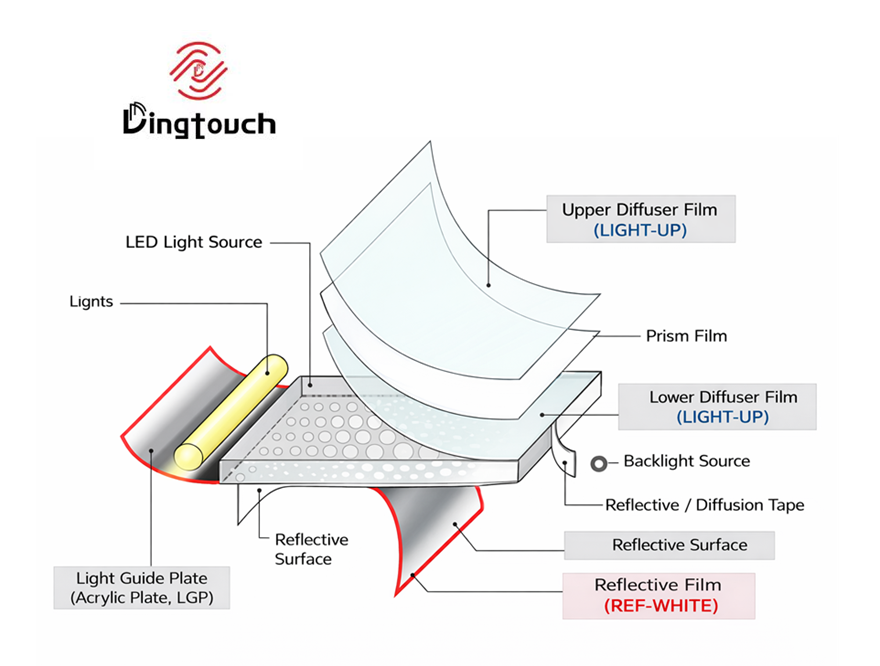

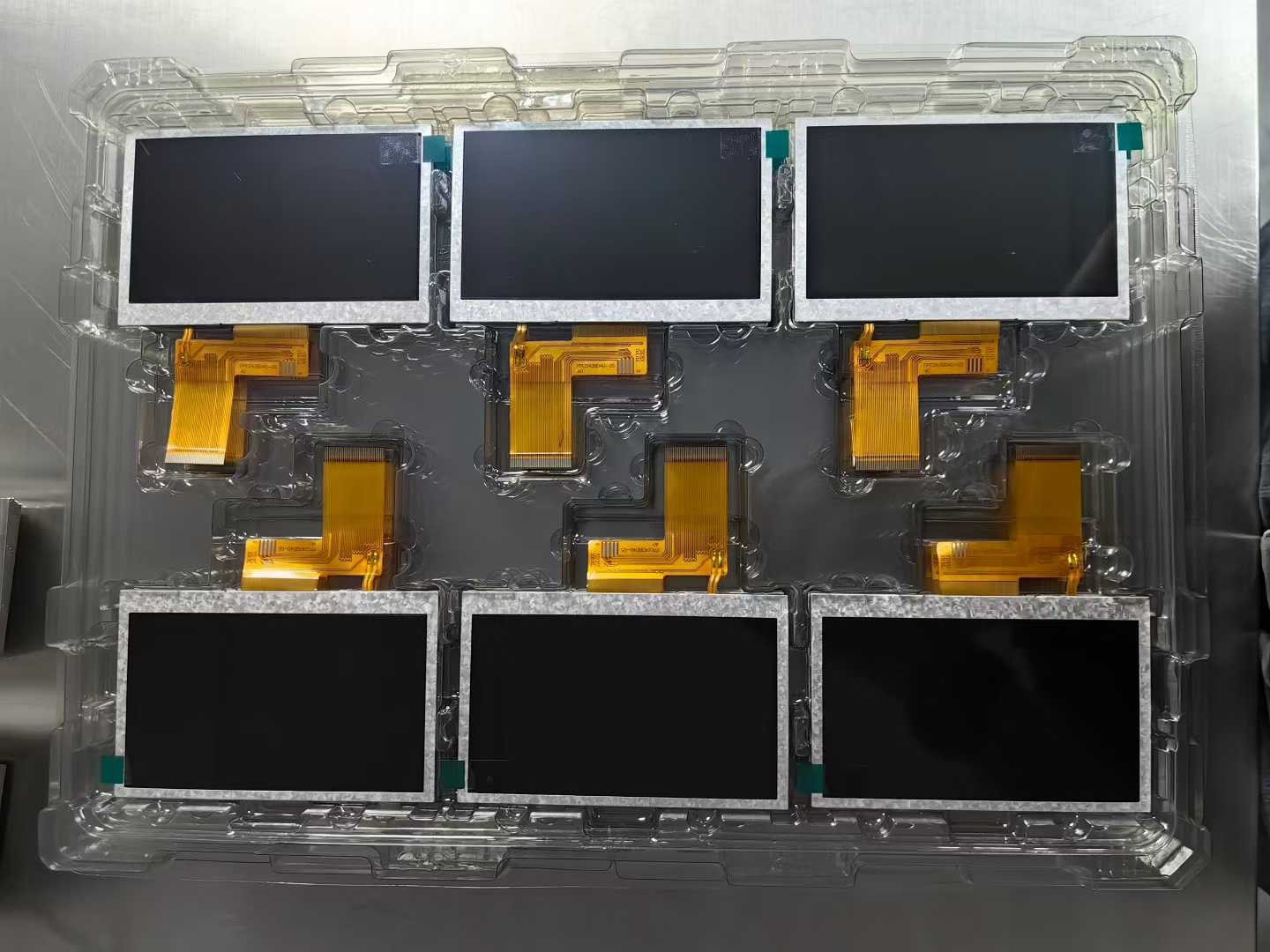

3. Optical Film Stack: Managing Light with Precision

Optical films are not simply stacked layers; they function as a coordinated optical management system, typically including:

• Diffuser films

• Brightness Enhancement Films (BEF)

• Dual Brightness Enhancement Films (DBEF)

• Reflective films

Together, these films:

• Eliminate hot spots and dark zones

• Increase frontal brightness efficiency

• Maintain uniform luminance across viewing angles

4. Mechanical Structures & LED Boards: Reliability Matters

• Frames and housings ensure long-term mechanical stability

• LED boards and power systems guarantee electrical safety and thermal control

In industrial-grade and wide-temperature displays, these elements often determine the product’s lifespan.

Backlight Architectures: Direct-Lit vs. Edge-Lit

Direct Backlight (Bottom-Lit Design)

• LED arrays placed directly beneath the light guide plate

• Advantages:
  ✔ Extremely high brightness
  ✔ Excellent uniformity
  ✔ Potential for local dimming

• Ideal for: outdoor displays, high-brightness industrial panels, large-size screens

Edge-Lit Backlight (Side-Lit Design)

• LED strips mounted along the edge of the light guide plate

• Advantages:
  ✔ Ultra-thin design
  ✔ Lower power consumption
  ✔ Cost-efficient structure

• Ideal for: embedded systems, space-constrained devices, consumer electronics

Light Source Technology Comparison: LED vs. EL vs. CCFL

LED Backlight — The Industry Standard

• High brightness

• Long lifespan (>30,000 hours for edge-lit designs)

• Low power consumption

• Suitable for consumer, industrial, and medical displays

EL Backlight — Specialized Custom Applications

• Ultra-thin and perfectly uniform illumination

• Flexible and bendable

• Used in specialized customized LCD and flexible display solutions

CCFL Backlight — Niche Professional Use

• Excellent color saturation

• Outstanding uniformity

• Still applied in certain professional display equipment

LCD Brightness Too Low? A System-Level Engineering Challenge

Insufficient LCD brightness is never caused by a single factor.
It is the result of combined effects from optics, structure, backlight design, and materials.

At DINGTouch, proven brightness improvement strategies include:

✔ Upgrading to high-brightness backlight solutions (most effective)
✔ Adding BEF / DBEF brightness enhancement films
✔ Using high-transmittance polarizers
✔ Optimizing light guide and optical structures
✔ Applying full lamination to reduce reflection losses
✔ Fine-tuning driver IC and current parameters

The optimal solution always depends on the specific application scenario.

DINGTouch: Defining Display Performance Through Backlight Engineering

With over 10 years of experience in display and touch technology, DINGTouch delivers:

• High-brightness and wide-temperature backlight customization

• Industrial-grade and medical-grade display solutions

• Advanced optical structure optimization

• Integrated LCD + touch display system design

If you are looking for a display partner who truly understands backlight engineering at the system level,
welcome to connect with DINGTouch  technical engineering team for tailored display solutions.
