7-Inch Industrial Capacitive Touch Screen Panel | G+G | 10-Point Multi-Touch | -20°C to +70°C

7-Inch Industrial capacitive touch screen Panel | G+G | 10-Point Multi-Touch | -20°C to +70°C

7-inch industrial capacitive touch screen panel is designed for reliable and responsive human-machine interaction in demanding industrial, medical, outdoor, and commercial applications.

Featuring a durable Glass-on-Glass (G+G) structure, 10-point multi-touch, an I²C interface, and a wide operating temperature range of -20°C to +70°C, this PCAP touch panel delivers stable touch performance and flexible integration with customized TFT-LCD displays.

DINGTouch provides comprehensive customization for the touch sensor, cover glass, FPC, touch controller, TFT-LCD, driver board, and optical bonding, enabling customers to develop a complete touch display solution tailored to their application.

Key Features

1. Reliable Touch Performance with Microchip Technology

The panel is equipped with a Microchip Technology touch controller, providing accurate and responsive touch detection for industrial equipment and embedded systems.

The touch solution can be optimized for challenging operating environments where electrical noise and electromagnetic interference may affect touch performance. Touch parameters and firmware can also be customized according to the target system and application requirements.

2. Durable Glass-on-Glass (G+G) Structure

The G+G structure combines a rigid cover glass with a glass touch sensor, providing excellent durability, surface protection, and long-term touch stability.

The standard cover glass is 1.1 mm thick and can be customized in thickness, shape, printing, and surface treatment to meet different mechanical and environmental requirements.

Available surface treatments include:

• Anti-Glare (AG)
• Anti-Reflection (AR)
• Anti-Fingerprint (AF)
• Anti-Microbial
• Custom ceramic printing
• 2.5D and 3D cover glass designs

3. 10-Point Multi-Touch & Glove Touch

The panel supports up to 10-point multi-touch, providing a smooth and responsive interface for industrial control systems, handheld equipment, medical devices, and smart terminals.

Depending on the selected touch controller and firmware configuration, the touch solution can be optimized for:

• Glove touch
• Wet touch
• Passive stylus
• Gesture recognition
• Palm rejection
• Customized touch sensitivity

This makes the panel suitable for applications where operators need to interact with equipment while wearing protective or industrial gloves.

4. Wide Temperature Performance

Designed for industrial environments, the touch panel supports:

Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C

The touch sensor and controller can be optimized for stable operation across temperature variations, making the panel suitable for industrial machinery, outdoor terminals, transportation equipment, and other demanding applications.

5. Flexible TFT-LCD Integration

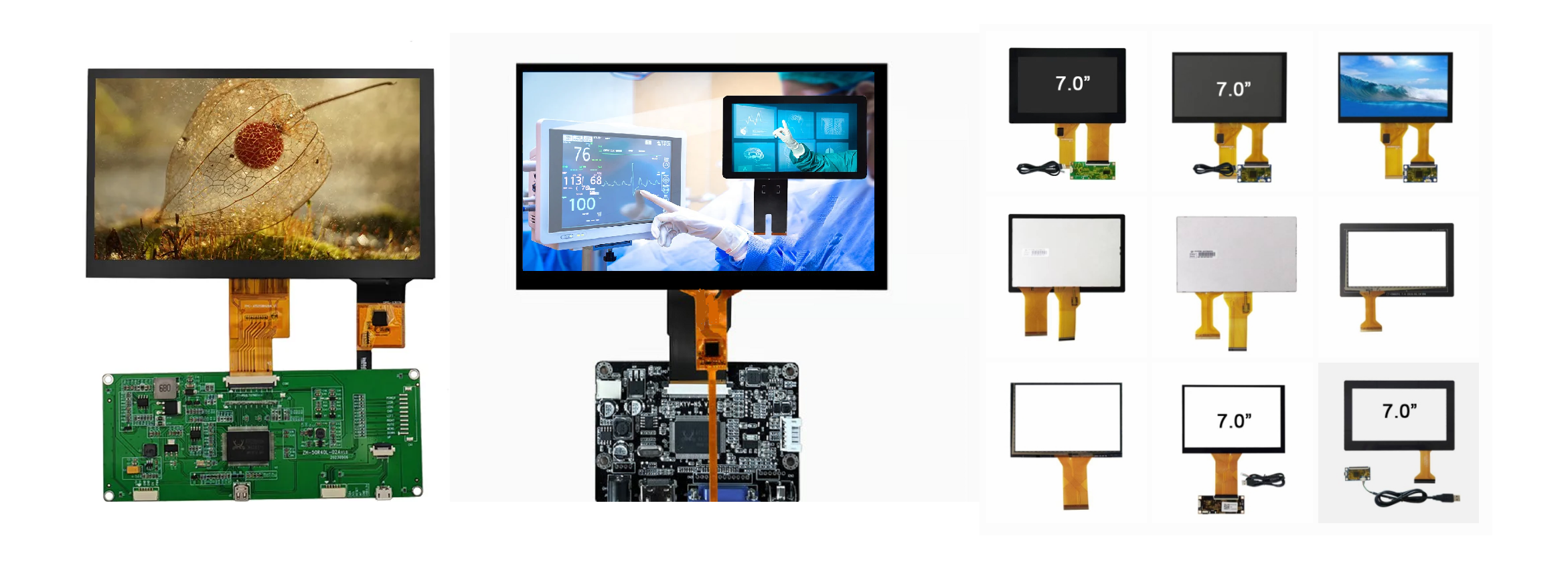

The 7-inch touch panel can be integrated with a wide range of TFT-LCD displays or developed as a complete TP+LCD touch display module.

DINGTouch can customize:

• LCD resolution
• LCD brightness
• Viewing angle
• Display interface
• FPC dimensions
• FPC pin definition
• Touch controller
• Cover glass
• Mechanical dimensions
• Optical bonding

Depending on the selected display and driver board, supported interfaces can include RGB, SPI, MCU, MIPI, LVDS, eDP, HDMI, USB, and Type-C.

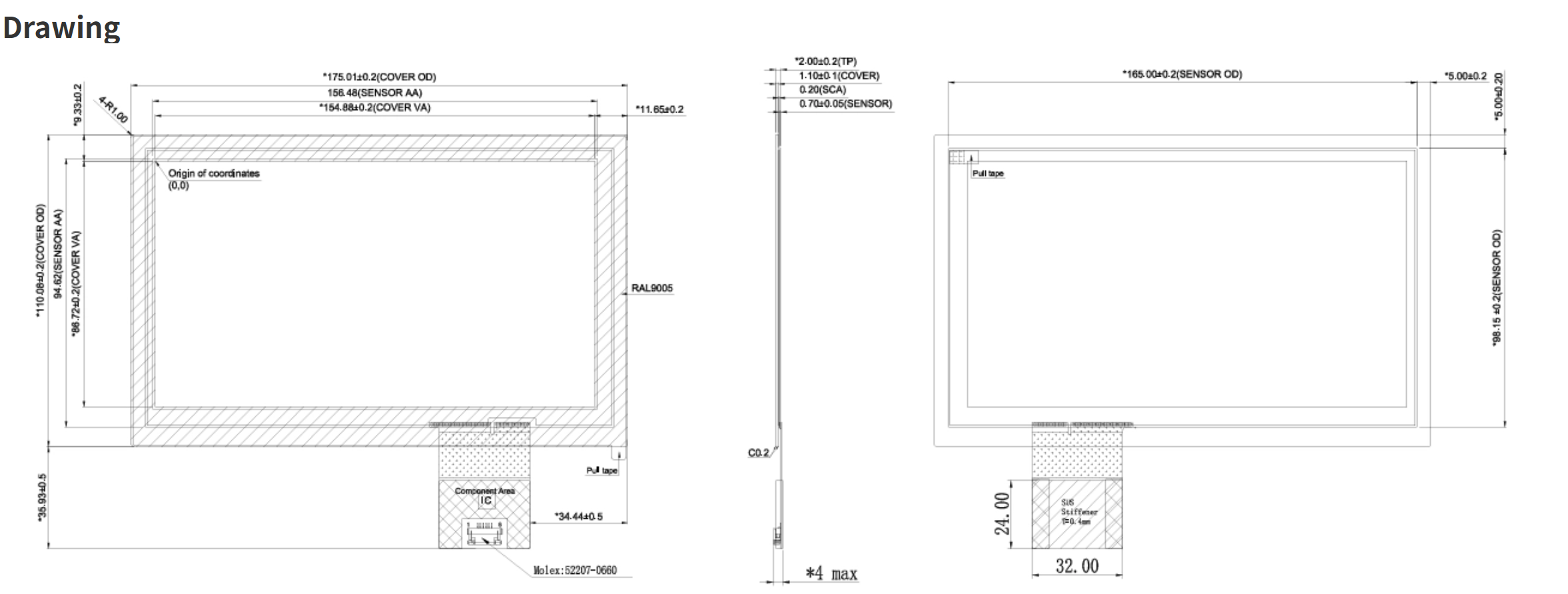

7-Inch capacitive touch screen Specifications

Customized 7-Inch Touch Display Solutions

A touch panel is only one component of a complete industrial display system.

DINGTouch provides integrated customization from the touch sensor and cover lens to the TFT-LCD, touch controller, driver board, and optical bonding, helping customers simplify product development and system integration.

Custom TFT-LCD Options

The 7-inch touch panel can be matched with TFT-LCD from established panel manufacturers, including:

• BOE
• Innolux
• JDI
• Hannstar
• CTC
• TCL
• Tianma

Available display technologies include:

• IPS
• TN
• LTPS

Display specifications can be customized according to the application, including resolution, brightness, viewing angle, interface, and operating temperature.

Display Interface Customization

The LCD interface and FPC can be customized for different host systems, including:

• RGB
• SPI
• MCU
• MIPI
• LVDS
• eDP

Custom FPC shape, cable length, connector type, and pin definitions are also available.

High-Brightness Backlight

For outdoor and high-ambient-light applications, customized LED backlights can be developed according to project requirements.

Options include:

• High-brightness LED backlight
• Customized LED configuration
• Metal or plastic backlight frame
• Long-life backlight design
• Thermal optimization

Custom PCAP touchscreen Solutions

DINGTouch provides customized PCAP touchscreen for industrial, medical, automotive, outdoor, and commercial applications.

Touch Sensor Structures

Available structures include:

• G+G
• G+F+F
• Other customized structures according to application requirements

Touch Functions

Depending on the selected controller and firmware configuration, available functions include:

• Multi-touch
• Glove touch
• Wet touch
• Passive stylus
• Gesture recognition
• Palm rejection
• Customized touch sensitivity
• EMI optimization

Touch Controller Options

Touch controller solutions can be selected from leading suppliers such as:

• Microchip
• EETI
• ILITEK
• GOODiX
• FocalTech
• Cypress

DINGTouch provides touch parameter tuning and firmware optimization to improve touch accuracy, response, and stability during system integration.

Customized Cover Glass for Industrial Applications

The cover lens can be customized to meet different mechanical, optical, and environmental requirements.

Cover Lens Material Options

Glass: 0.55–10.0 mm
PMMA: 0.5–3.0 mm
PC: 0.1–1.0 mm

Mechanical Customization

Available processing options include:

• CNC machining
• 2.5D glass
• 3D curved glass
• Hot bending
• Custom cut-outs
• Custom logo printing
• Ceramic printing
• PMMA integration

Surface Treatments

Depending on the application, the cover glass can be configured with:

• AG — Anti-Glare
• AR — Anti-Reflection
• AF — Anti-Fingerprint
• Anti-Microbial coating
• Enhanced surface hardness
• Customized optical treatments

Optical Bonding for Enhanced Display Performance

For applications requiring improved sunlight readability, contrast, and environmental reliability, DINGTouch provides customized optical bonding services.

Optical bonding eliminates the air gap between the touch panel and LCD, helping reduce internal reflections while improving contrast and readability in bright environments.

Applications

Industrial HMI & Machine Control

The 7-inch PCAP touch panel is well suited for compact industrial HMI terminals, machine controllers, automation equipment, and factory control systems where reliable touch performance and EMI resistance are important.

Medical & Diagnostic Equipment

The responsive multi-touch interface and customizable glove-touch performance make the panel suitable for handheld diagnostic instruments, medical terminals, laboratory equipment, and healthcare devices.

Smart Home & Building Automation

The compact 7-inch format provides an intuitive interface for smart control panels, intercom systems, security terminals, HVAC controllers, and building automation systems.

Marine & Outdoor Instrumentation

With customized cover glass, touch tuning, optical bonding, and environmental protection options, the panel can be adapted for marine instruments, outdoor control terminals, navigation equipment, and high-humidity applications.

Automotive & Transportation

With appropriate component selection, the touch panel can be customized for vehicle control interfaces, transportation terminals, navigation systems, and other applications requiring enhanced temperature performance.

Why Choose DINGTouch for Custom Touch Screens?

As a professional custom capacitive touch screen manufacturer, DINGTouch provides more than a standard touch panel.

Our engineering capabilities cover the complete development process:

Touch Sensor → Cover Glass → Touch Controller → TFT-LCD → Driver Board → Optical Bonding → Touch Tuning → Final Display Module

This integrated approach helps reduce compatibility issues between the touch panel, LCD, controller, and host system while simplifying product development and system integration.

DINGTouch Customization Capabilities

• Custom touch panel dimensions
• Custom cover glass
• Custom FPC
• Custom touch controller
• Custom firmware and touch tuning
• Custom TFT-LCD
• High-brightness display
• Wide-temperature display
• Glove touch
• Wet touch
• EMI optimization
• Optical bonding
• Complete TP+LCD touch display modules

Request a Custom 7-Inch Capacitive Touch Screen

Looking for a 7-inch industrial capacitive touch screen panel for your next project?

DINGTouch can customize the touch panel, LCD, controller, cover glass, interface, FPC, and optical bonding according to your mechanical, electrical, and environmental requirements.

Send us your requirements, including display size, resolution, interface, brightness, operating temperature, touch requirements, and mechanical dimensions, and our engineering team can recommend a suitable touch display solution.
