DINGTouch: When it comes to selecting the best 7 inch 40-pin TFT display with a touchscreen for your project, several factors need to be considered. These displays are widely used in various applications, including consumer electronics, automotive systems, and industrial control panels, due to their high resolution and interactive capabilities. In this article, we will delve into the key features and considerations for choosing the ideal 7 inch TFT display with a touchscreen.

Key Features of 7 Inch 40-Pin TFT Display

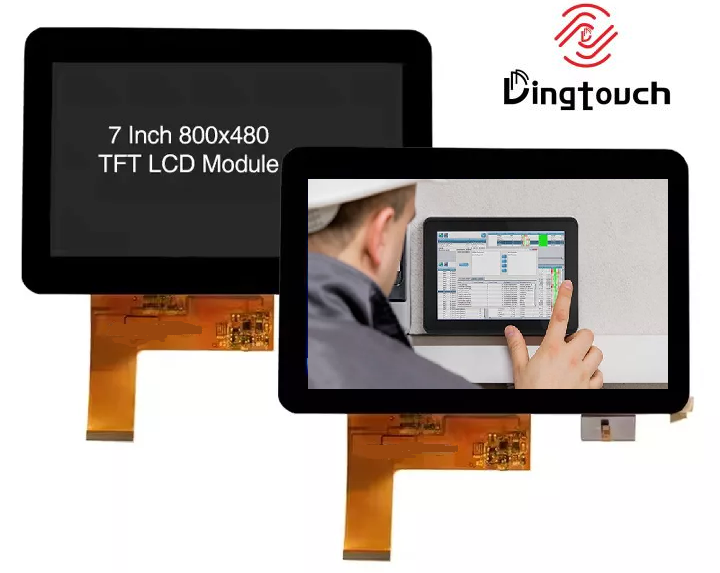

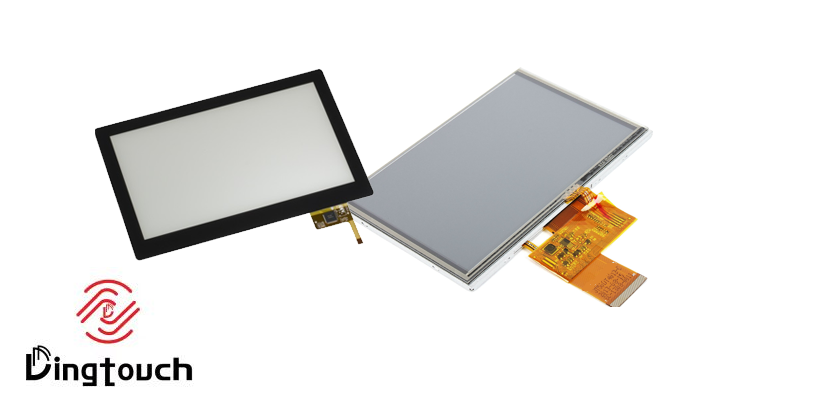

These displays typically offer a resolution of 800x480 pixels, providing a clear and detailed visual output. They are equipped with either resistive or capacitive touchscreens, each with its own advantages and disadvantages. Resistive touchscreens are generally more affordable and easier to implement but may lack the multi-touch functionality and durability of capacitive touchscreen. Capacitive touchscreen, on the other hand, support multi-touch gestures and are more responsive but require direct contact with the skin or a conductive stylus.

The 40-pin connector on these displays usually includes 8 red, 8 green, and 8 blue parallel pins, enabling 24-bit color capability. This results in a vibrant display with millions of colors, making them suitable for applications that require high-quality graphics or video playback. Additionally, some displays may include additional pins for backlight control, allowing for brightness adjustment or power-saving features.

Choosing the Right Display for Your Project

The choice between different types of 7 inch TFT display depends on the specific requirements of your project. For instance, if your application needs to operate in bright environments, a display with high luminance (measured in nits) would be preferable. Displays with higher luminance, such as those offering 660 nits or more, are ideal for outdoor use or in well-lit areas. This is particularly important for applications like outdoor kiosks or automotive systems that need to be visible under various lighting conditions.

Another crucial factor is the type of touchscreen. If your project requires multi-touch functionality and gestures, a capacitive touchscreen is the better choice. However, if simplicity and cost-effectiveness are more important, a resistive touchscreen might suffice. For example, in industrial control panels where single-touch input is sufficient, resistive touchscreens can provide a reliable and cost-effective solution.

Interface and Compatibility

The interface of the display is also a critical consideration. Common interfaces for TFT display include SPI, parallel, LVDS, and HDMI. The choice of interface depends on the speed and complexity required by your application. For example, HDMI is ideal for high-speed video applications, while SPI is simpler and requires fewer I/Os, making it suitable for microcontrollers like Arduino. Ensuring that the display's interface matches the capabilities of your controller or driver board is essential for seamless integration.

Power Consumption and Efficiency

Most TFT display require their backlight to be on to function, which consumes significant power. While it's possible to power a TFT display from a battery, it's not efficient for long-term use due to the high power consumption of the backlight. However, some displays can operate with reduced backlight power or in low-power modes to extend battery life. This is particularly useful in portable devices where power efficiency is crucial.

Troubleshooting Common Issues

Common issues with TFT display include unresponsive touchscreens, flickering screens, or incorrect color displays. Troubleshooting typically involves checking the power supply, ensuring proper wiring, recalibrating the touchscreen, and verifying that the display is properly connected to the controller or driver board. In some cases, updating the firmware or adjusting the display settings can resolve these issues.

Advanced Features and Considerations

In addition to the basic features, some 7 inch TFT display come with advanced features that can enhance their functionality. For instance, some displays support gesture recognition, allowing users to interact with the display using swipe or pinch gestures. Others may include built-in memory for storing images or fonts, reducing the need for external storage.

Another important consideration is the operating temperature range of the display. If your application will be used in extreme environments, such as high or low temperatures, ensure that the display is rated for those conditions. This is particularly important for industrial or automotive applications where reliability under varying conditions is critical.

Environmental Considerations

Environmental factors such as humidity and dust resistance should also be considered. For applications in harsh environments, displays with IP67 or higher ratings are recommended. These displays are designed to withstand exposure to dust and moisture, ensuring reliability in challenging conditions.

Future Developments and Trends

The future of TFT display is promising, with ongoing advancements in technology leading to higher resolutions, improved brightness, and more efficient power consumption. As the demand for interactive and high-quality displays continues to grow, manufacturers are focusing on developing displays that are not only visually appealing but also environmentally friendly and cost-effective.

Conclusion

Choosing the best 7 inch 40-pin TFT display with a touchscreen for your project involves considering several key factors, including display resolution, touchscreen type, brightness, and interface compatibility. Whether you prioritize cost-effectiveness, multi-touch functionality, or high brightness for outdoor use, there is a TFT display available to meet your needs. By understanding the differences between resistive and capacitive touchscreens, the importance of display brightness, and common interfaces, you can select the ideal display for your application.

Frequently Asked Questions (FAQ)

1. What is the typical resolution of a 7 inch TFT display?

- The typical resolution of a 7 inch TFT display is 800x480 pixels.

2. What is the difference between a resistive and capacitive touchscreen?

- Resistive touchscreen are more affordable and support single-touch input with any object, while capacitive touchscreens are more expensive and offer multi-touch functionality but require skin contact.

3. How much power does a 7 inch TFT display consume?

- The power consumption of a 7 inch TFT display varies but is typically significant due to the backlight. It often requires a constant-current boost converter for the backlight.

4. Can I use a 7 inch TFT display with an Arduino?

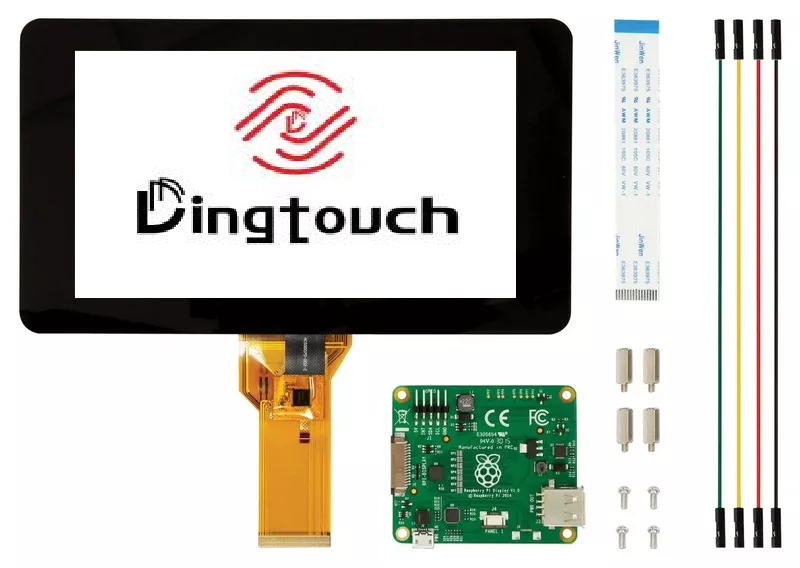

- Yes, many 7 inch TFT display are compatible with Arduino boards, especially those with dedicated driver boards like the Adafruit RA8875.

5. What is the typical brightness required for sunlight readability?

- For a display to be readable in sunlight, it should have a minimum brightness of 700 nits.
