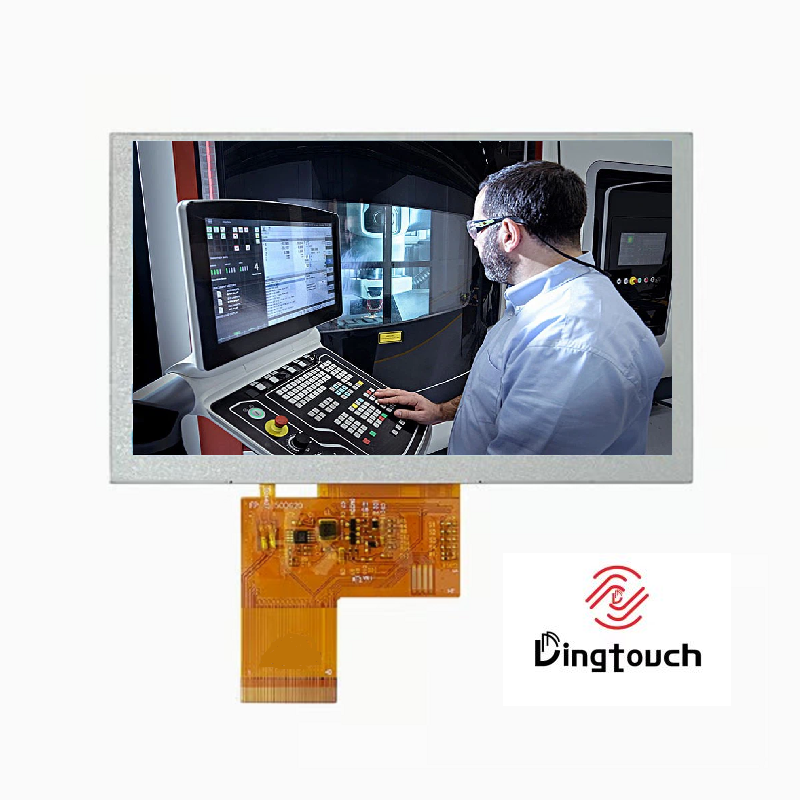

5-Inch Capacitive Touch Panel + LCD & LCM Integration Kit

5-Inch Capacitive Touch Panel + LCD & LCM Integration Kit

High-Precision Touch and High-Definition Display for Industrial and Medical Applications

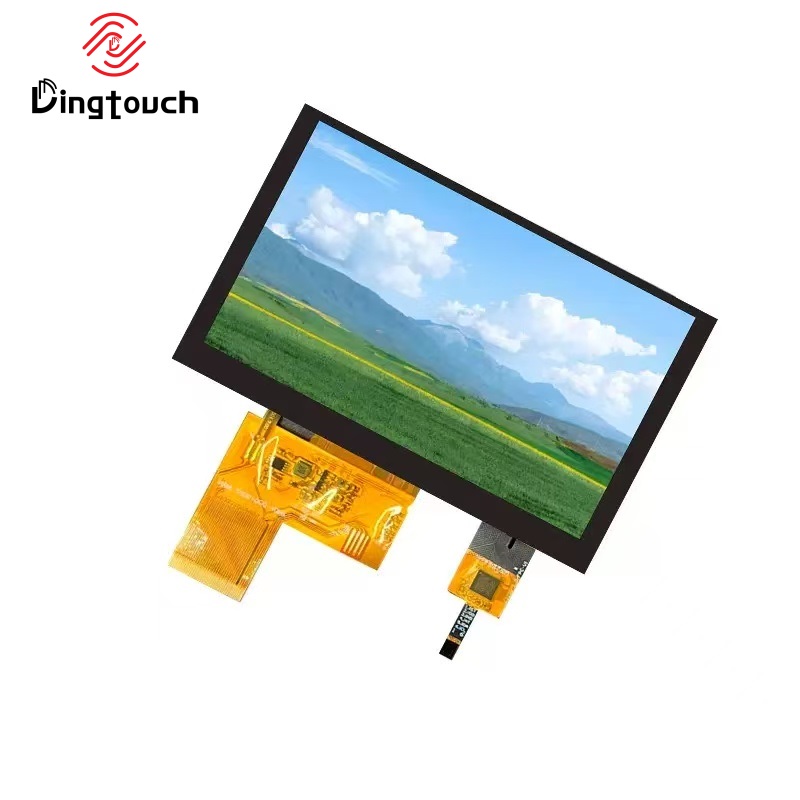

5-inch Capacitive Touch Panel TP+LCD & LCM Integration Kit combines an original Innolux LCD module with an industrial-grade Goodix GT911 touch controller, delivering smooth, accurate touch performance and vivid, stable display quality. Designed to meet the stringent demands of industrial control and medical applications, it has passed medical-grade EMC and EFT tests and is 100% compliant with RoHS environmental standards.

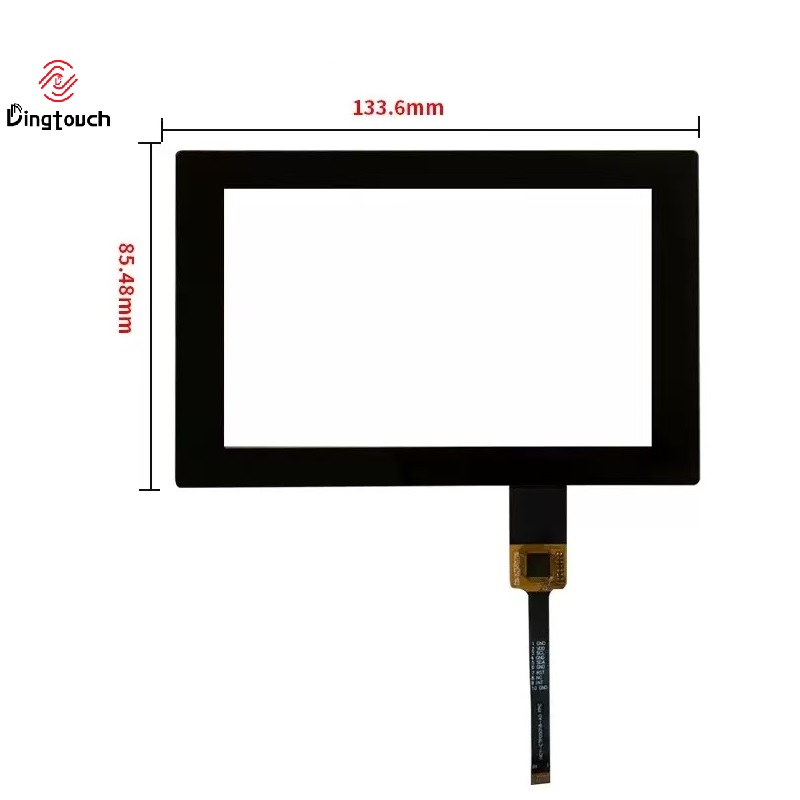

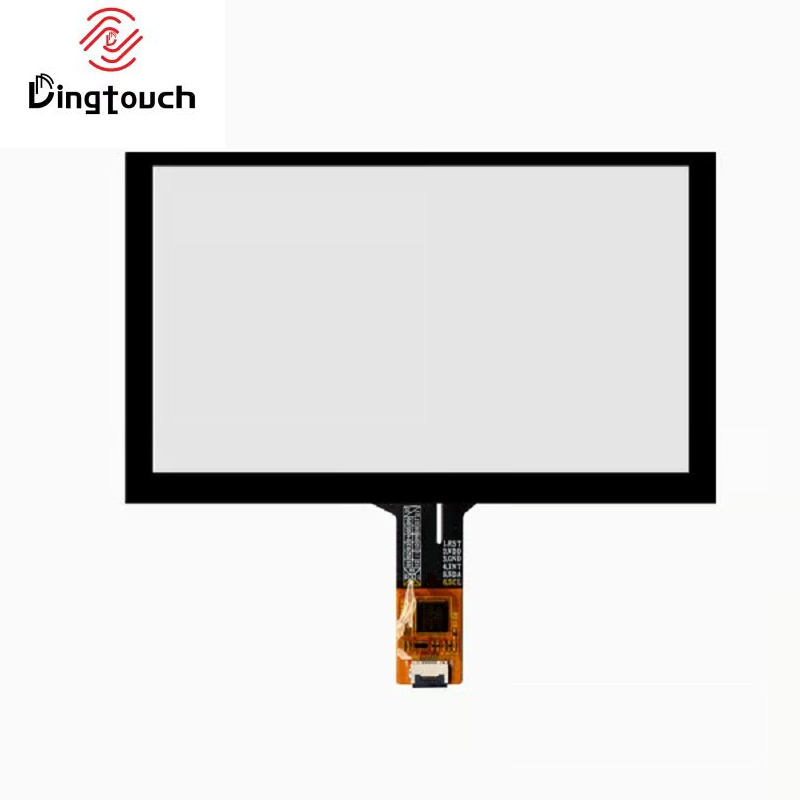

touchscreen Specifications

• Dimensions: 119.5 × 74 mm (R84)

• Viewing Area: 107.7 × 64.8 mm

• Cover Glass Thickness: 0.25 mm

• Structure: P+G (Plastic + Glass) for a balance of light weight and durability

• Surface Hardness: 3H ±1 for scratch resistance

• Touch IC Brand / Model: Goodix GT911

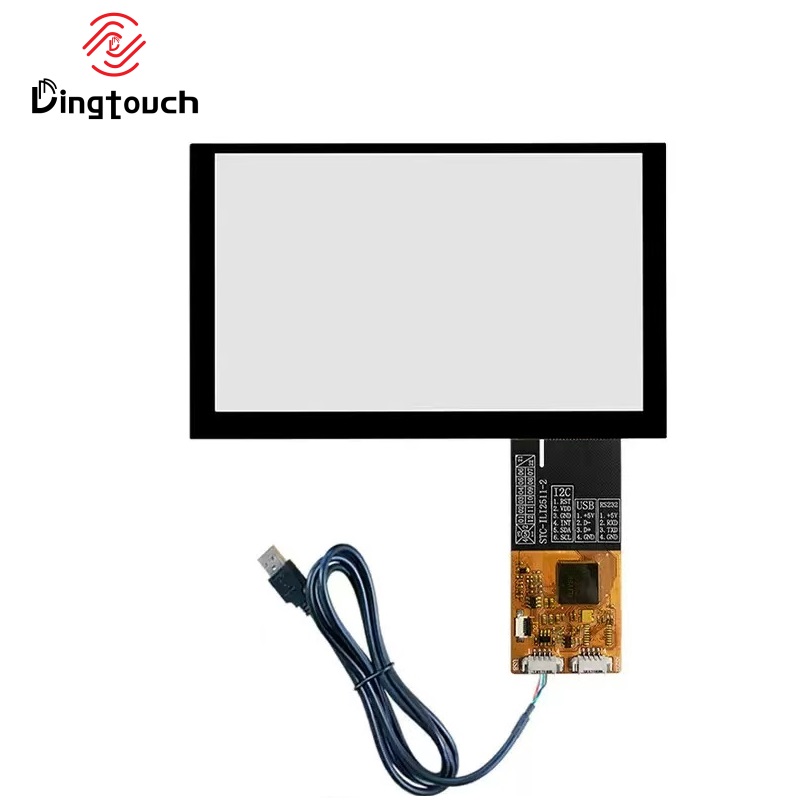

• Touch Interface: I²C (IIC) + USB

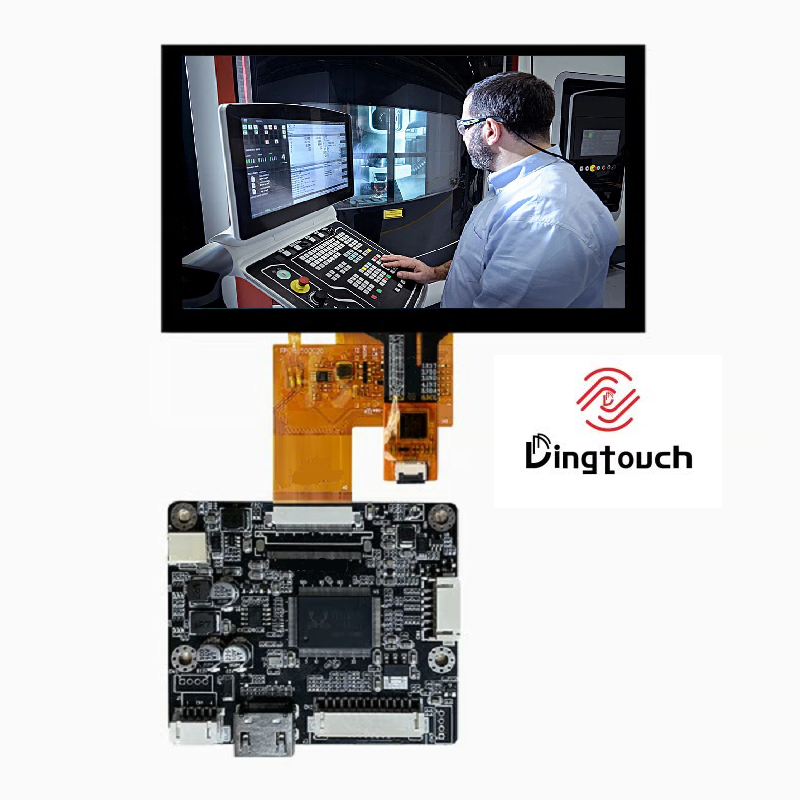

• Driver Board Interface: HDMI

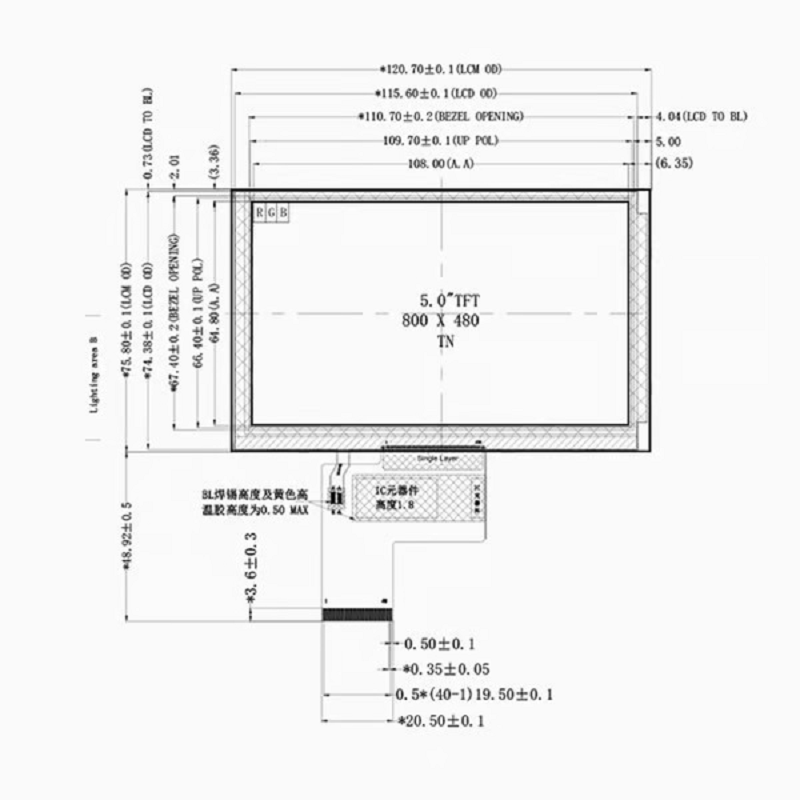

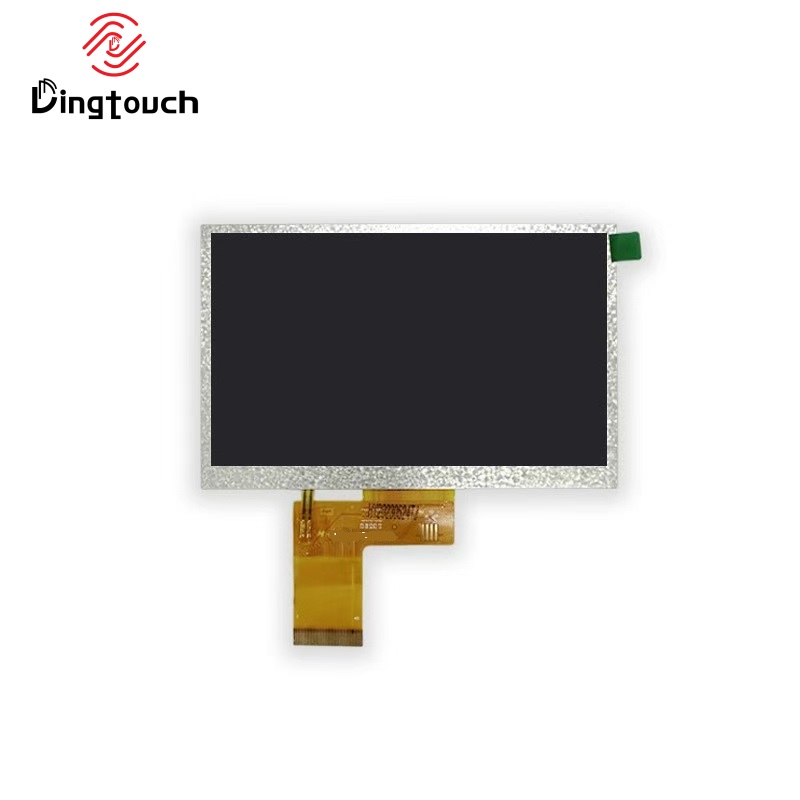

LCD Specifications

• Brand / Model: Innolux JC050IHIE401371-A

• Resolution: 800 × 480 pixels

• Brightness: 510 cd/m² (ideal for both indoor and bright environments)

• Interface: RGB

• Color Gamut: 50% NTSC

Environmental Performance

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -30°C to +80°C

Key Features

• Industrial-Grade Stability – Maintains consistent touch accuracy and display clarity under continuous operation.

• Medical-Grade Certification – Successfully passed EMC and EFT testing for compliance with stringent medical equipment standards.

• High-Brightness Display – 510 cd/m² brightness ensures clear visibility in strong lighting conditions.

• Accurate Multi-Touch – Goodix GT911 enables responsive multi-touch control and precise gesture recognition.

• Flexible Interface Support – Touch supports I²C and USB, display uses RGB interface, and HDMI driver board compatibility allows easy integration.

Applications

• Medical Equipment – Patient monitoring systems, diagnostic instruments, surgical displays.

• Industrial Control Systems – HMI panels, automation control terminals, data visualization systems.

• Other Professional Uses – Measuring instruments, embedded control panels, laboratory devices.

Ready to Build Your Outdoor Display Solution?

Get in touch with us at sales@szdingtouch.com. Our expert engineers will help you design a cost-effective, tailored solution to meet your project’s exact specifications.
