Industrial-Grade 10.1" Touch Display Module Designed for Demanding Applications

As industrial automation, medical equipment, transportation systems, and smart control terminals continue to evolve, manufacturers require display solutions that offer exceptional durability, customization flexibility, and long-term reliability.

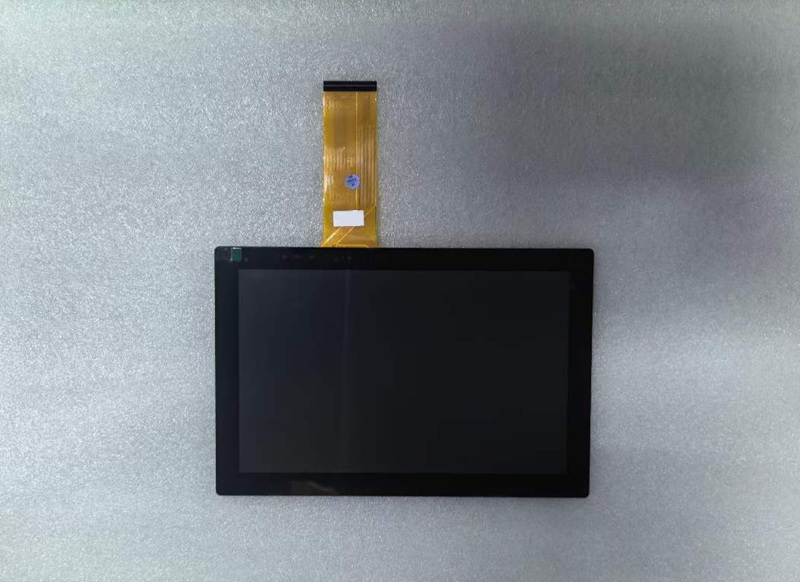

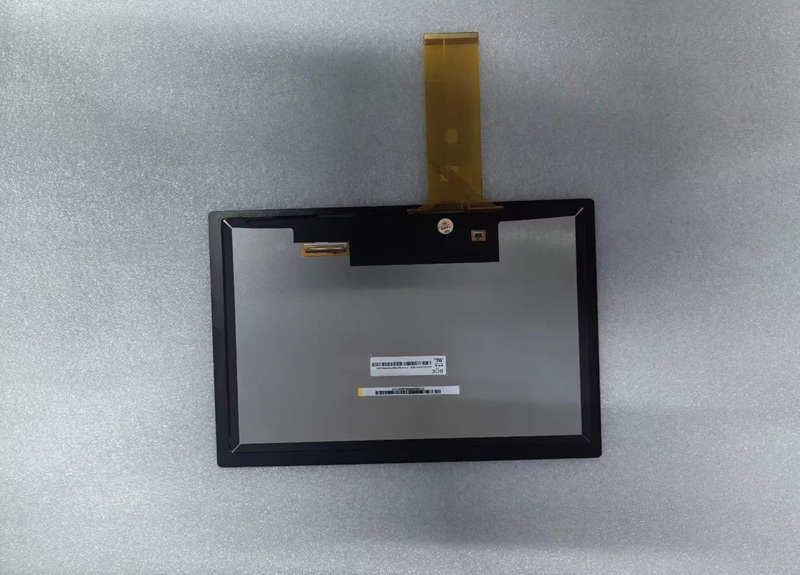

DINGTouch provides a complete 10.1-inch touch display assembly solution that integrates a projected capacitive (PCAP) touchscreen with high-quality TFT LCD panels. Available in both 1280×800 and 1920×1200 resolutions, these display modules deliver sharp image quality, responsive touch performance, and extensive customization options for OEM and ODM projects.

Whether your application requires anti-glare visibility, vandal-resistant protection, glove operation, or waterproof touch functionality, DINGTouch can tailor the solution to meet your exact requirements.

Available LCD Display Options

Our 10.1-inch touch display assemblies support multiple LCD configurations:

10.1" TFT LCD Specifications

The sleek black bezel design offers a modern appearance suitable for industrial HMIs, medical devices, EV charging stations, marine equipment, self-service kiosks, and outdoor terminals.

Custom Glass Thickness for Every Application

One of DINGTouch core strengths is the ability to customize touchscreen thickness according to application requirements.

Cover Glass Thickness Options

• 0.55 mm

• 0.7 mm

• 1.1 mm

• 1.8 mm

• 2.0 mm

• 3.0 mm

• 4.0 mm

• 5.0 mm

• 6.0 mm

• 10.0 mm

• Up to 15.0 mm custom solutions

Sensor Thickness Options

• 0.425 mm

• 0.55 mm

• 0.7 mm

• 1.1 mm

• 1.8 mm

• 2.0 mm

• 3.0 mm

• 4.0 mm

• 5.0 mm

• 6.0 mm

For rugged industrial environments, military equipment, mining systems, and public-use terminals, thicker cover glass can significantly improve impact resistance and vandal protection.

Anti-Glare and Explosion-Proof touchscreen Options

Different operating environments require different surface treatments.

Anti-Glare (AG) touchscreen

Anti-glare glass reduces sunlight reflection and improves readability in bright environments, making it ideal for:

• Outdoor kiosks

• Marine navigation systems

• Agricultural machinery

• Industrial control panels

• EV charging stations

Explosion-Proof touchscreen

For high-impact applications, DINGTouch offers reinforced cover glass solutions that enhance mechanical strength and improve user safety.

Ideal for:

• Industrial equipment

• Mining machinery

• Public transportation terminals

• Security systems

• Military electronics

Advanced Touch Features Available

Our projected capacitive touchscreens can be customized with a wide range of functional enhancements:

Optical Enhancements

• Anti-Glare (AG)

• Anti-Reflection (AR)

• Anti-Fingerprint (AF)

• Optical Bonding (OCA)

Environmental Enhancements

• Waterproof Touch

• Glove Touch

• Wet Finger Operation

• EMI/EMC Protection

• UV Resistant Coating

• Wide Temperature Design

These features ensure reliable touch performance even in harsh industrial environments.

Flexible Controller Solutions

DINGTouch supports both COF (Chip on Flex) and COB (Chip on Board) architectures.

Supported Controller Brands

• ILITEK

• EETI

• GOODIX

• FocalTech

• Silead

• Customized Controller Solutions

Available Interfaces

• I2C

• USB

• RS232

Our engineering team can recommend the most suitable controller platform according to your operating system, interface requirements, environmental conditions, and project budget.

OEM & ODM Customization Services

Unlike standard catalog products, DINGTouch specializes in custom touch display development.

Customization Capabilities

✔ Custom cover lens shape

✔ Custom logo printing

✔ Silk-screen color matching

✔ Transparent window design

✔ Solid color masking

✔ Custom FPC routing

✔ Interface customization

✔ Mechanical structure modification

✔ Optical bonding integration

✔ TFT LCD + Touch Full Assembly

Our engineering team can quickly evaluate your drawings and provide professional recommendations.

touchscreen Structure Options

DINGTouch manufactures multiple touchscreen constructions to meet different performance and cost requirements.

G+G (Glass + Glass)

Highest durability and optical performance.

G+F (Glass + Film)

Balanced cost and performance.

P+G (PET + Glass)

Lightweight and economical.

G+F+F (Glass + Film + Film)

Excellent flexibility and competitive pricing.

Available Capacitive touchscreen Sizes

Beyond 10.1-inch solutions, DINGTouch supports custom PCAP touchscreens from 2.4 inches to 65 inches.

Standard Sizes Include

2.4"

2.8"

3.5"

4.3"

5.0"

5.6"

5.7"

7.0"

8.0"

10.1"

10.4"

11.6"

12.1"

13.3"

15.6"

18.5"

21.5"

23.8"

27"

32"

43"

55"

65"

This broad size range allows OEM customers to maintain consistent touch technology across multiple product platforms.

Why Choose DINGTouch?

Fast Engineering Support

• Technical drawing review: 1 day

• Prototype lead time: 2 weeks

• Mass production: 3 weeks

Strict Quality Control

All materials comply with:

• RoHS

• ISO 9001 Quality Management System

• ISO 14001 Environmental Management System

Every touchscreen undergoes 100% inspection before shipment.

One-Year Warranty

All DINGTouch capacitive and resistive touchscreens are backed by a comprehensive 12-month warranty.

Complete Display Integration

Beyond standalone touch panels, we provide:

• TFT LCD Modules

• Touch Display Assemblies

• Optical Bonding

• HDMI Touch Monitors

• Industrial Display Solutions

Capacitive vs Resistive touchscreens: Which One Is Better?

The answer depends on the application.

Choose Capacitive touchscreens If You Need:

• Multi-touch functionality

• Superior optical clarity

• Smartphone-like user experience

• Modern HMI interfaces

Choose Resistive touchscreens If You Need:

• Stylus operation

• Compatibility with any input object

• Lower initial cost

• Legacy industrial system integration

DINGTouch manufactures both PCAP and RTP solutions and can recommend the most suitable technology based on your project requirements.

Partner with DINGTouch for Your Next Display Project

With over 10 years of experience in custom touchscreen manufacturing, DINGTouch has helped customers worldwide develop reliable display solutions for industrial, medical, transportation, military, energy storage, and commercial applications.

Whether you need a standard 10.1-inch touch display assembly or a fully customized TFT LCD touchscreen solution, our engineering team is ready to assist.
